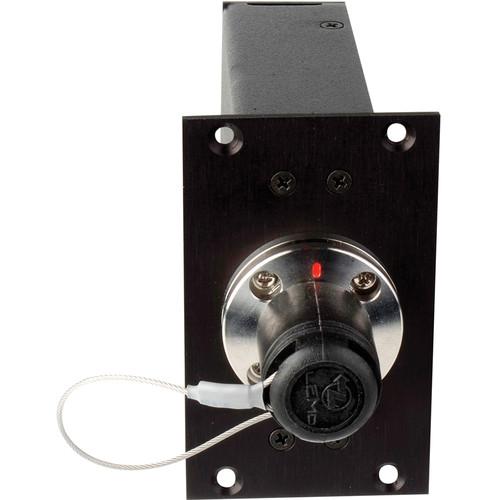

Product description The SMPTE FXW to 2 ST Fiber & 5-Pin AMP for 2RU HYMOD Systems from Camplex installs flush into the Camplex 2RU HYMOD patch panel frame. It assembles in minutes using an included hardware kit, and all the visible parts have a professional-looking, black anodized finish. The front side features a LEMO FXW connector and the rear side has two ST fiber connector and one 5-pin AMP connector. Dust caps are included for the FXW and fiber connectors. In the Box Camplex SMPTE FXW to 2 ST Fiber & 5-Pin AMP for 2RU HYMOD Systems Set of Dust Caps Installation Hardware Kit 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Camplex SMPTE FXW to 2 ST Fiber & 5-Pin AMP for 2RU HYMOD Systems in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCamplex HYMOD-2R01 Specs | Connectors | 1x FXW LEMO
2x ST Fiber
1x 5-pin AMP |
