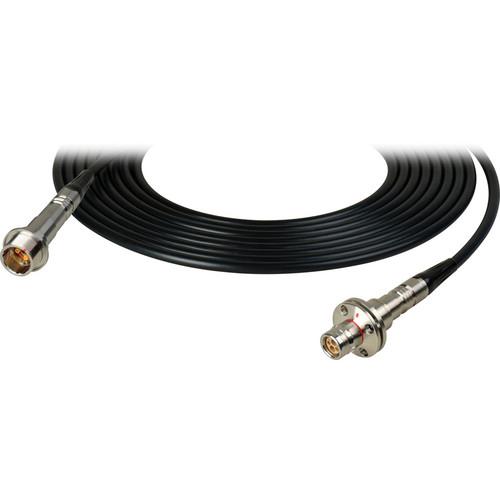

Product description This 328 ft SMPTE Hybrid FMW/PEW LEMO Belden Indoor Fiber Cable from Camplex is a chassis-mount interconnect cable combining optical, electrical, and control signal paths. It features a round flange FMW LEMO connector and round socket PEW LEMO connector. It uses a Belden CMR Riser Rated indoor cable suitable for permanent installations in building risers. All assemblies are tested for < -55dB return loss, exceeding SMPTE 304M/311M standards. Diagnostics documentation is provided with each cable.
This cable is standardized by SMPTE for HDTV broadcast camera use. It supports 19.4 Mbps to 3 Gbps bandwidths. - SMPTE Standard HDTV Broadcast Cable
-
- Chassis-mount interconnect cable
- Combines optical, electrical, and control signal paths
- Round flange FMW LEMO connector and round socket PEW LEMO connector
- Belden CMR Riser Rated indoor cable assembly
- Suitable for permanent installations in building risers
- Tested for < -55dB return loss (diagnostics documentation provided)
- Additional Features
-
- Terminated by LEMO trained technicians
- LEMO certified, multi-stage machine polished fiber contacts
- Electrical assemblies 100% tested for continuity and shorts
- Fiber optic assemblies 100% tested for attenuation and back reflection
- Stainless steel assemblies
- Rubber dust caps
- 19.4 Mbps to 3 Gbps bandwidth
In the Box Camplex SMPTE Hybrid FMW/PEW LEMO Belden Indoor Fiber Cable (328 ft) Diagnostics Documentation 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Camplex SMPTE Hybrid FMW PEW LEMO Belden Indoor Fiber Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCamplex HF-FMWPEW-R-0328 Specs | | | Connector 1 | FMW | | Connector 2 | PEW | | Coupling Type | LEMO (SMPTE) | | Cable Length | 328.1' / 100 m | | Return Loss | < -55 dB |
