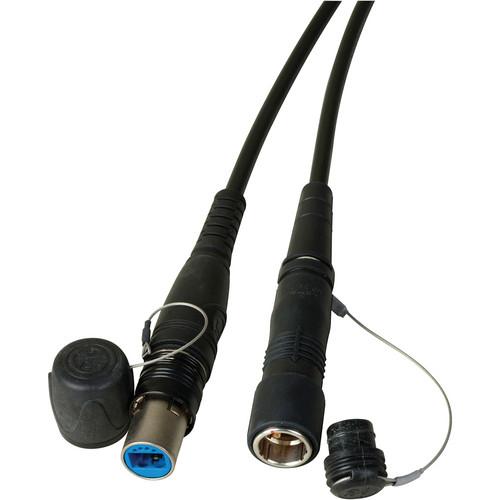

Product description This 656' SMPTE Hybrid opticalCON DUO to PUW LEMO Singlemode Outdoor Fiber Cable from Camplex is a SMPTE 311M compliant broadcast interconnect cable suitable for outdoor and indoor use. It features a Neutrik OpticalCON DUO NO2SX connector and PUW LEMO connector. The OpticalCON connector is COCA factory terminated and interferometrically tested to GR-326-CORE endface standards. It has common LC contacts and a mechanical shutter system that shields against endface contamination. The cable is tested for < -55dB typical return and comes with diagnostics documentation.
The opticalCON connectors are assembled using the Neutrik opticalCON ADVANCED system, which adds lockable, waterproof metal caps and rubber guards, especially critical for outdoor applications. This improves the cable protection and water resistance in long-term use. - Key Features
-
- SMPTE 311M compliant interconnect cable
- COCA factory terminated OpticalCON DUO NO2SX connector, tested to GR-326-CORE endface standards
- PUW LEMO connector
- Tested for < -55dB typical return loss
- IP65 waterproof in mated condition
- Assembled using the Neutrik opticalCON ADVANCED system
- Two channel fiber optic connection system
- Additional Features
-
- Overall copper braided shield and stainless steel strength member
- Suitable for indoor camera links considering specific conditions according to IEC 60664-1
- Machine polished and tested end faces
- Tactical tight buffered PUR cable
- Supports standard optical LC-Duplex connectors
- All metal housing cable connector with heavy duty cable retention
- Automatic sealing shutter with silicone gasket for dust and dirt protection
- Push/Pull locking mechanism
- No tools required to clean
In the Box Camplex SMPTE Hybrid opticalCON DUO to PUW LEMO Singlemode Outdoor Fiber Cable (656') Diagnostics Documentation 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Camplex SMPTE Hybrid opticalCON DUO to PUW LEMO Singlemode Outdoor Fiber Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCamplex HF-OC2PUW-0656 Specs | | | Connector 1 | LC | | Connector 2 | LC | | Coupling Type | LEMO (SMPTE), OpticalCON DUO | | Cable Length | 656.2' / 200 m | | Fiber Type | Single Mode | | Core Size | 9
