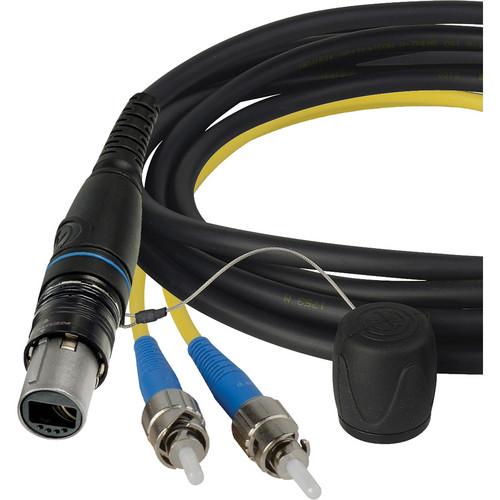

User Manual for Camplex SMPTE opticalCON DUO to Duplex ST Multimode Fiber Breakout Cable Click to enlarge the picture
Contents of the user manual for the Camplex SMPTE opticalCON DUO to Duplex
- Product category: Fiber Optic Cables Camplex
- Brand: Camplex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Camplex Fiber Optic Cables
|
User manual for the Camplex SMPTE opticalCON DUO to Duplex contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Camplex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Camplex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Camplex product will considerably shorten its lifespan!
|
Product description This 6" SMPTE opticalCON DUO to Duplex ST Multimode Fiber Breakout Cable fromCamplex is a two-fiber cable designed for internal wiring of racks and patch panels. It allows you to conveniently adapt opticalCON DUO equipment to standard ST fiber systems. It features a Neutrik OpticalCON DUO NO2MX connector and Senko Duplex ST connector. The OpticalCON connector is COCA factory terminated and interferometrically tested to GR-326-CORE endface standards. It has common LC contacts and a mechanical shutter system that shields against endface contamination. The cable is tested for < -55dB typical return and comes with diagnostics documentation.
The OpticalCON connector is assembled using the Neutrik opticalCON ADVANCED system, which adds lockable, waterproof metal caps and rubber guards, especially critical for outdoor applications. This improves the cable protection and water resistance in long-term use. - Key Features
-
- Two-fiber cable designed for internal wiring of racks and patch panels
- COCA factory terminated OpticalCON DUO NO2MX connector, tested to GR-326-CORE endface standards
- Senko Duplex ST connector offering random mating compatibility results
- Tested for < -55dB typical return loss
- Assembled using the Neutrik opticalCON ADVANCED system
- Machine polished and tested end faces
- Optical shutter mechanism for added protection
- Tactical tight buffered PUR cable
In the Box Camplex SMPTE opticalCON DUO to Duplex ST Multimode Fiber Breakout Cable (6") Diagnostics Documentation 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Camplex SMPTE opticalCON DUO to Duplex ST Multimode Fiber Breakout Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCamplex HF-OC2M-ST-06IN Specs | | | Connector 1 | LC | | Connector 2 | LC | | Coupling Type | OpticalCON DUO | | Cable Length | 6' / 1.8 m | | Fiber Type | Multimode | | Core Size | 50
