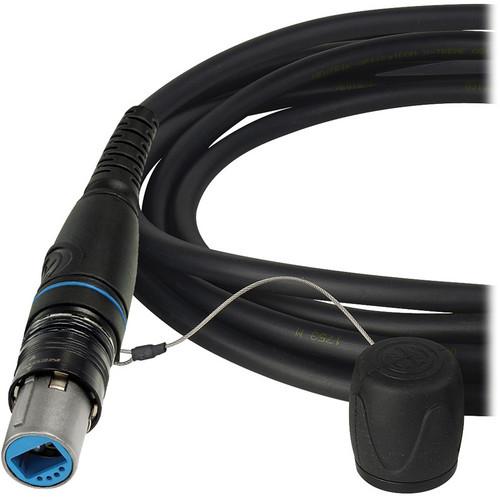

User Manual for Camplex SMPTE OpticalCON DUO to OpticalCON DUO Singlemode Fiber Optic Outside Broadcast Cable Click to enlarge the picture
Contents of the user manual for the Camplex SMPTE OpticalCON DUO to OpticalCON
- Product category: Fiber Optic Cables Camplex
- Brand: Camplex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Camplex Fiber Optic Cables
|
User manual for the Camplex SMPTE OpticalCON DUO to OpticalCON contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Camplex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Camplex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Camplex product will considerably shorten its lifespan!
|
Product description Camplex SMPTE OpticalCON DUO to OpticalCON DUO Singlemode Fiber Optic Outside Broadcast Cable is a 328' long cable that features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against end-face contamination.
OpticalCON assemblies are COCA factory terminated and machine polished in Hybrid Fiber Systems' Fiber Optic Lab. Neutrik OpticalCON assemblies are made with outside broadcast SMPTE 311M cable rated for ruggedized applications and field deployment in commercial and professional broadcast AV applications. Machine polishing processes provide exceptionally low return loss and insertion loss.
SMPTE cable with 2 singlemode fiber UPC, 2 x 24 AWG and 2 x 16 AWG or (2 x 17 AWG) stranded copper conductors, overall copper-braided shield and stainless steel strength member. This cable is not compatible with the SMPTE 304M standard. Suitable for indoor (studio) camera links considering specific conditions according to IEC 60664-1 like pollution degree 1, overvoltage category 1 and rated voltage.
This cable is assembled using the Neutrik opticalCON ADVANCED system. OpticalCON ADVANCED further enhances the original opticalCON making it more robust by adding lockable and water proofed metal caps as well as rubber guards. This is especially critical for outdoor applications. The ergonomical cable strain relief improves the cable protection and water resistance in long-term use, and the color-coding options allow custom-built coding. - OpticalCON assemblies are interfermetrically tested to GR-326-CORE endface standards
- Machine polishing processes provide exceptionally low return loss and insertion loss
- OpticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against endface contamination
- APC Polishing types available upon request
- Machine polished and tested end faces
- Tactical tight buffered PUR cable
- Optical shutter mechanism for added protection
- Typical back reflection <-55dB
Table of Contents
|
Upload User Manual
Have you got an user manual for the Camplex SMPTE OpticalCON DUO to OpticalCON DUO Singlemode Fiber Optic Outside Broadcast Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCamplex HF-OCSMPT-0328 Specs | | | Coupling Type | OpticalCON DUO | | Cable Length | 328.1' / 100 m | | Return Loss | -55 to -45 dB | | Attenuation | < 0.45 dB/km @ 1310 nm
< 0.45 dB/km @ 1550 nm | | | | Operating Temperature | -13 to 167°F / -25 to 75°C |
