User Manual for Camplex SMPTE opticalCON QUAD Multimode Outside Fiber Tactical Snakes Click to enlarge the picture
Contents of the user manual for the Camplex SMPTE opticalCON QUAD Multimode Outside
- Product category: Fiber Optic Cables Camplex
- Brand: Camplex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Camplex Fiber Optic Cables
|
User manual for the Camplex SMPTE opticalCON QUAD Multimode Outside contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Camplex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Camplex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Camplex product will considerably shorten its lifespan!
|

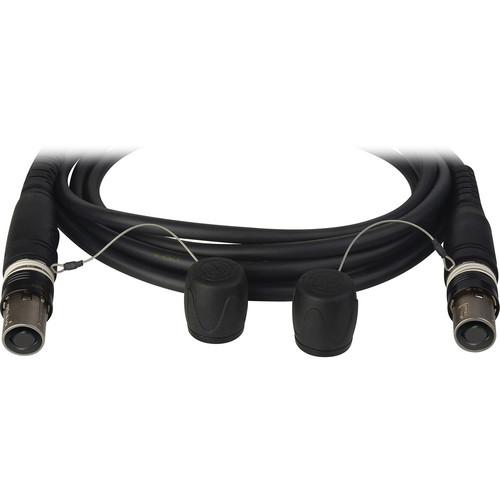

Product description This 1000 ft SMPTE opticalCON QUAD Multimode Outside Fiber Tactical Snakes from Camplex is a four-fiber cable suitable for outdoor and indoor use. It features a Neutrik OpticalCON QUAD NO4MX connector on each end, COCA factory terminated and interferometrically tested to GR-326-CORE endface standards. The connectors have common LC contacts and a mechanical shutter system that shields against endface contamination. The cable is tested for < -55dB typical return and comes with diagnostics documentation.
The connectors are assembled using the Neutrik opticalCON ADVANCED system, which adds lockable, waterproof metal caps and rubber guards, especially critical for outdoor applications. This improves the cable protection and water resistance in long-term use. - Key Features
-
- Four-fiber cable suitable for outdoor and indoor use
- COCA factory terminated OpticalCON QUAD NO4MX connector on each end, tested to GR-326-CORE endface standards
- Tested for < -55dB typical return loss
- Assembled using the Neutrik opticalCON ADVANCED system
- Machine polished and tested end faces
- Optical shutter mechanism for added protection
- Tactical tight buffered PUR cable
In the Box Camplex SMPTE opticalCON QUAD Multimode Outside Fiber Tactical Snakes (1000 ft) Diagnostics Documentation 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Camplex SMPTE opticalCON QUAD Multimode Outside Fiber Tactical Snakes in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCamplex HF-OC4M-1000 Specs | | | Connector 1 | LC | | Connector 2 | LC | | Coupling Type | OpticalCON QUAD | | Cable Length | 1000' / 304.8 m | | Fiber Type | Multimode | | Core Size | 50
