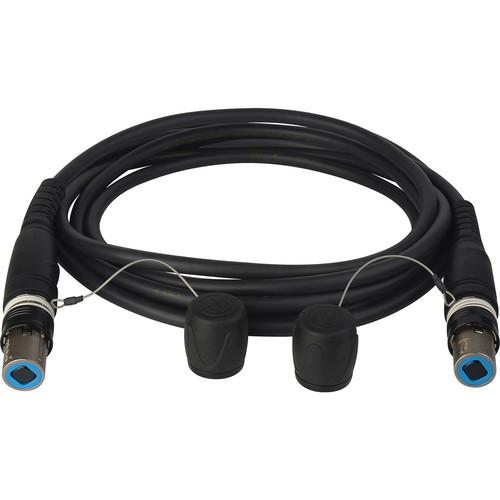

Product description This 3' SMPTE opticalCON QUAD Singlemode Outside Fiber Tactical Snake from Camplex is a four-fiber cable suitable for outdoor and indoor use. It features a Neutrik OpticalCON QUAD NO4SX connector on each end, COCA factory terminated and interferometrically tested to GR-326-CORE endface standards. The connectors have common LC contacts and a mechanical shutter system that shields against endface contamination. The cable is tested for < -55dB typical return and comes with diagnostics documentation.
The connectors are assembled using the Neutrik opticalCON ADVANCED system, which adds lockable, waterproof metal caps and rubber guards, especially critical for outdoor applications. This improves the cable protection and water resistance in long-term use. - Key Features
-
- Four-fiber cable suitable for outdoor and indoor use
- COCA factory terminated OpticalCON QUAD NO4SX connector on each end, tested to GR-326-CORE endface standards
- Tested for < -55dB typical return loss
- Assembled using the Neutrik opticalCON ADVANCED system
- Machine polished and tested end faces
- Optical shutter mechanism for added protection
- Tactical tight buffered PUR cable
In the Box Camplex SMPTE opticalCON QUAD Singlemode Outside Fiber Tactical Snake (3') Diagnostics Documentation 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Camplex SMPTE opticalCON QUAD Singlemode Outside Fiber Tactical Snake in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCamplex HF-OC4S-0003 Specs | | | Connector 1 | LC | | Connector 2 | LC | | Coupling Type | OpticalCON QUAD | | Cable Length | 3' / 0.9 m | | Fiber Type | Single Mode | | Core Size | 9
