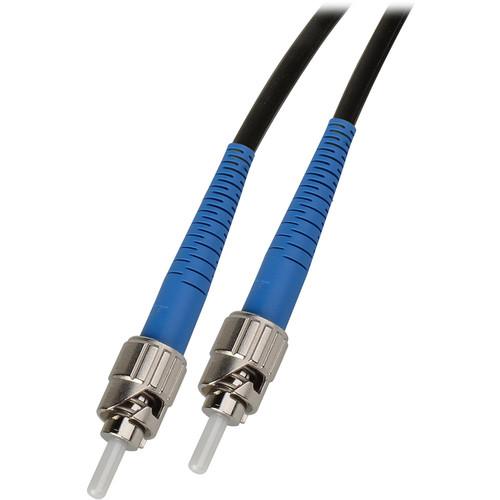

User Manual for Camplex TAC1 Simplex Singlemode ST Fiber Optic Tactical Cable Click to enlarge the picture
Contents of the user manual for the Camplex TAC1 Simplex Singlemode ST Fiber
- Product category: Fiber Channel Cables & Adapters Camplex
- Brand: Camplex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Camplex Fiber Channel Cables & Adapters
|
User manual for the Camplex TAC1 Simplex Singlemode ST Fiber contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Camplex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Camplex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Camplex product will considerably shorten its lifespan!
|
Product description The 3' TAC1 Simplex Singlemode ST Fiber Optic Tactical Cable from Camplex is designed for broadcast applications requiring an outdoor rated crush and impact resistant design. The polyurethane core-locked design will be found where ordinary PVC jacket cables do not provide adequate protection in the field. The cable is machine polished and interferometer tested to industry standards. - Indoor/Outdoor rated jacket
- 500 Micron primary acrylate buffer with 900 Micron secondary hard elastomeric buffer (Ultra-Fox Plus)
- Crush and impact resistance due to their polyurethane core-locked outer jacket
- Designed to withstand crush and impact after deployment
- Strong, lightweight and durable
- Temporarily deployed cables that can be retrieved for repeated use
In the Box Camplex TAC1 Simplex Singlemode ST Fiber Optic Tactical Cable (3') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Camplex TAC1 Simplex Singlemode ST Fiber Optic Tactical Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCamplex HF-T1SM-ST-0003 Specs | Cable Type | Fiber Optic Tactical | | Length | 3' (0.9 m) | | Return Loss | <55 dB and IL <0.25 dB | | Fiber | SLS | | Industry Standards | Singlemode ITU-T G.652.A | | Temperature | Operating: -67 to 185°F (-55 to 85°C)
Storage: -94 to 185ᵒF (-70 to 85ᵒC)
Installation (Actual temp. of cable): -13 to 140ᵒF (-25 to 60ᵒC) | | Core/Cladding Diameter | 9/125 um | | Wavelength (nm) | 1310/1550 | | Attenuation | 0.5/0.5 dB/km | | Diameter | Cable: 0.11" (2.9 mm)
Primary Coating Diameter: 500 um
Secondary Buffer Diameter: 900 um | | Crush Resistance | 440 N/cm | | Impact Resistance | 200 impacts | | Jacket Material | Polyurethane | | Bend Radius | Minimum:
Installation: 1.1" (2.9 cm)
Operating: 0.6" (1.5 cm) | | Dispersion | Zero Dispersion Slope: 0.092 ps/nm2-km | | Proof Test Level | 100 kpsi | | Tensile Strength | Installation: 110 lb (49.9 kg) / 500 N
Operating: 70 lb (31.8 kg) / 300 N | | Jacket Color | Black | | Buffer Material | Hard elastomeric | | Connector 1 | ST | | Connector 2 | ST |
