User Manual for CAMVATE Director's Monitor Cage Kit with Adjustable Rack Click to enlarge the picture
Contents of the user manual for the CAMVATE Director's Monitor Cage Kit with
- Product category: Director's Monitor Brackets CAMVATE
- Brand: CAMVATE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAMVATE Director's Monitor Brackets
 |
User manual for the CAMVATE Director's Monitor Cage Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAMVATE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAMVATE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAMVATE product will considerably shorten its lifespan!
|

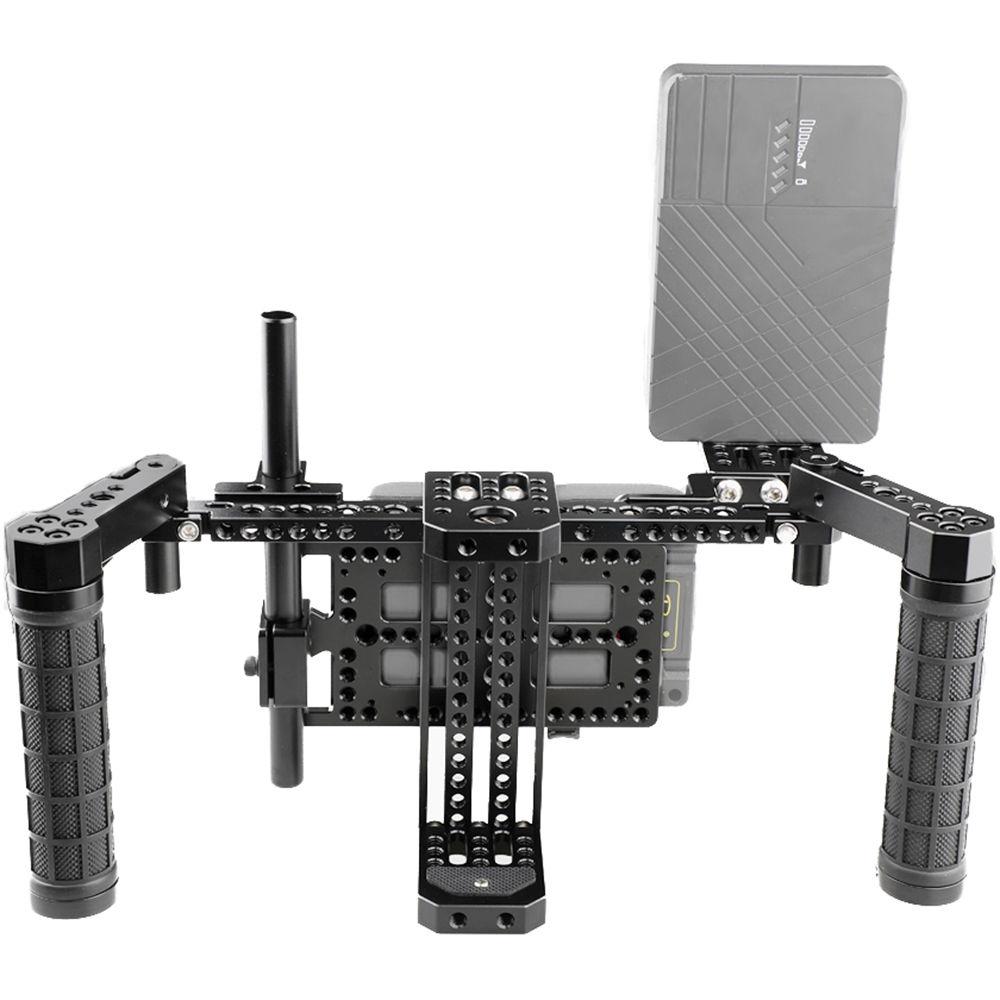

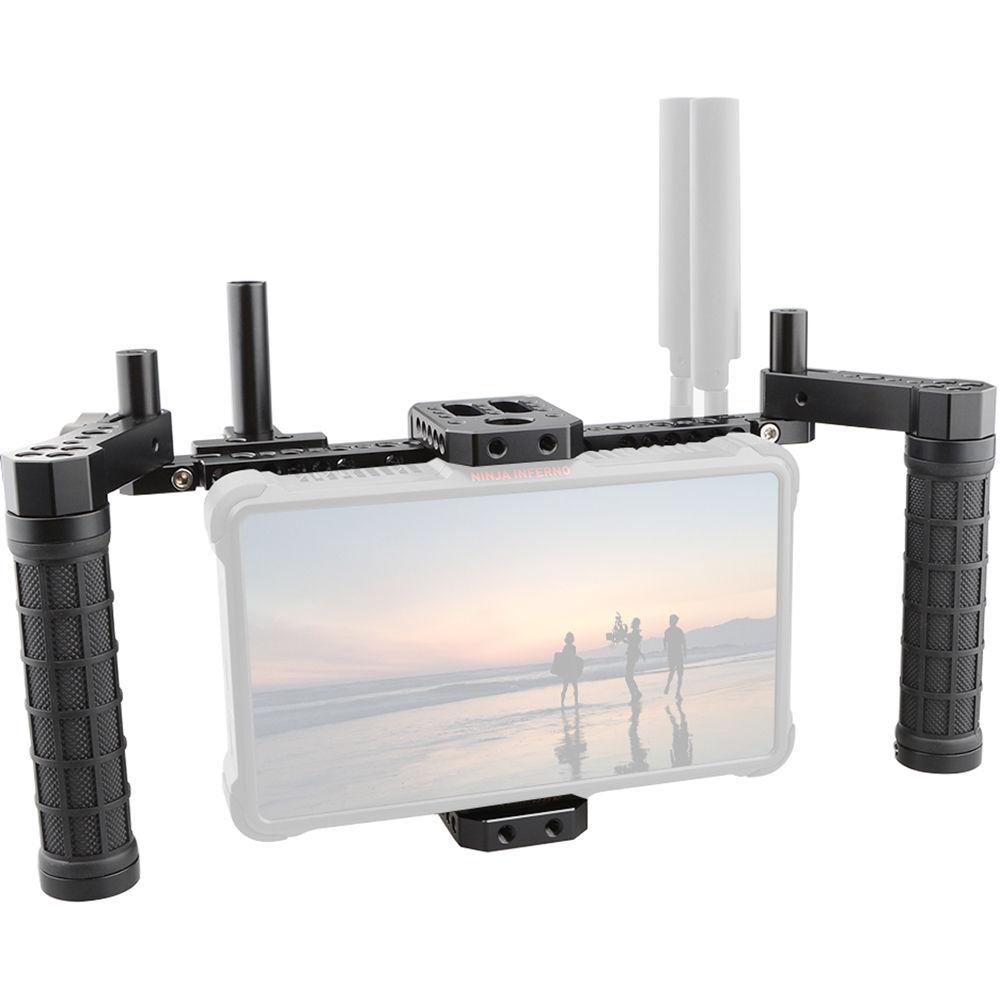

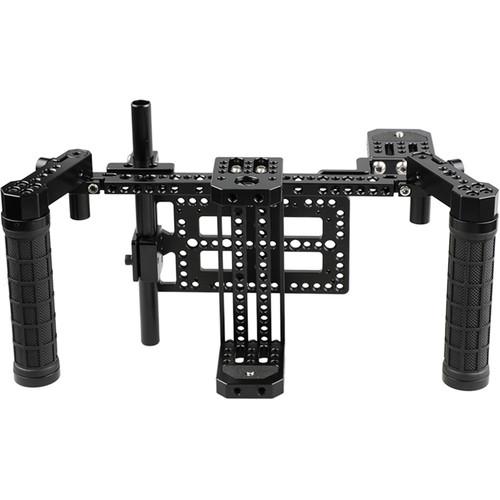

Product description Made for 5 to 7" monitors such as the Atomos Ninja Inferno, this CAMVATE Director's Monitor Cage Kit with Adjustable Rack helps directors stay mobile when managing a complex production. Constructed with durable, lightweight aluminum, the cage is modular and adjustable to support a monitor, battery mounts, and even a wireless transmission system.

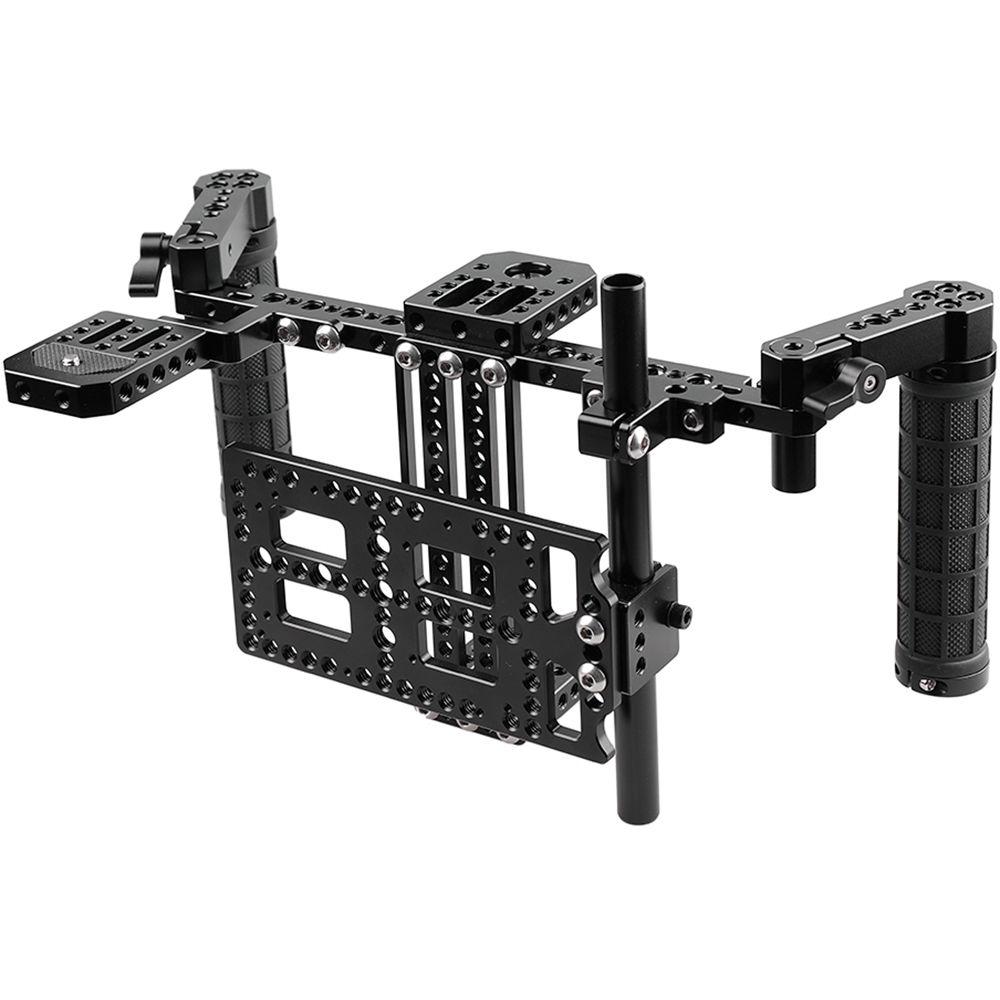

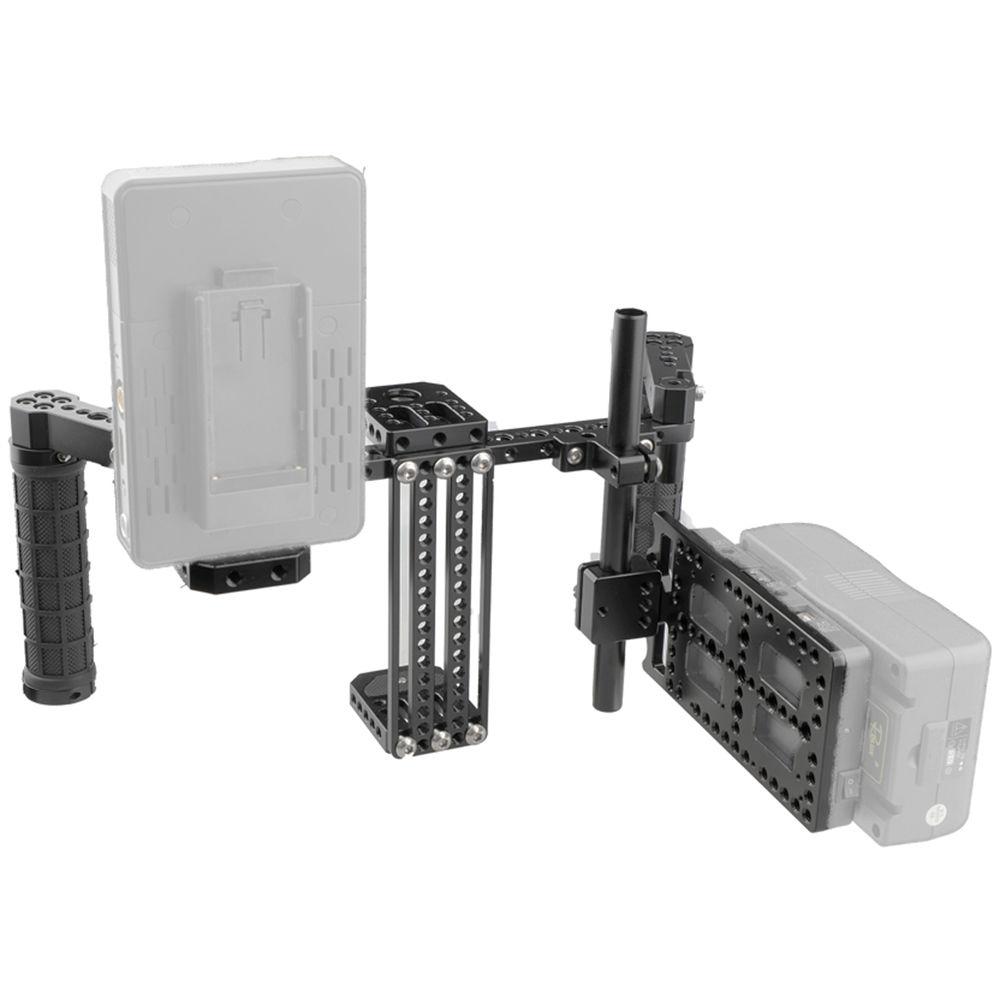

At the center of the cage system is the main horizontal cheese rod with multiple 1/4"-20 and 3/8"-16 mounting holes. On the back, a 7.9" long 15mm rod attaches to one side of the main rail to allow for a center cheese plate with multiple 1/4"-20 and 3/8"-16 holes for mounting batteries and other attachments. Large cutouts in the center cheese plate allow cabling to run through with room for adjustment. An additional baseplate is included to mount your wireless transmission system onto the main cheese rod, which features a mounting screw and a rubber pad to protect your receiver. Two horizontally adjustable rubber handgrips attach to the main cheese rod via 2" long 15mm micro rods.

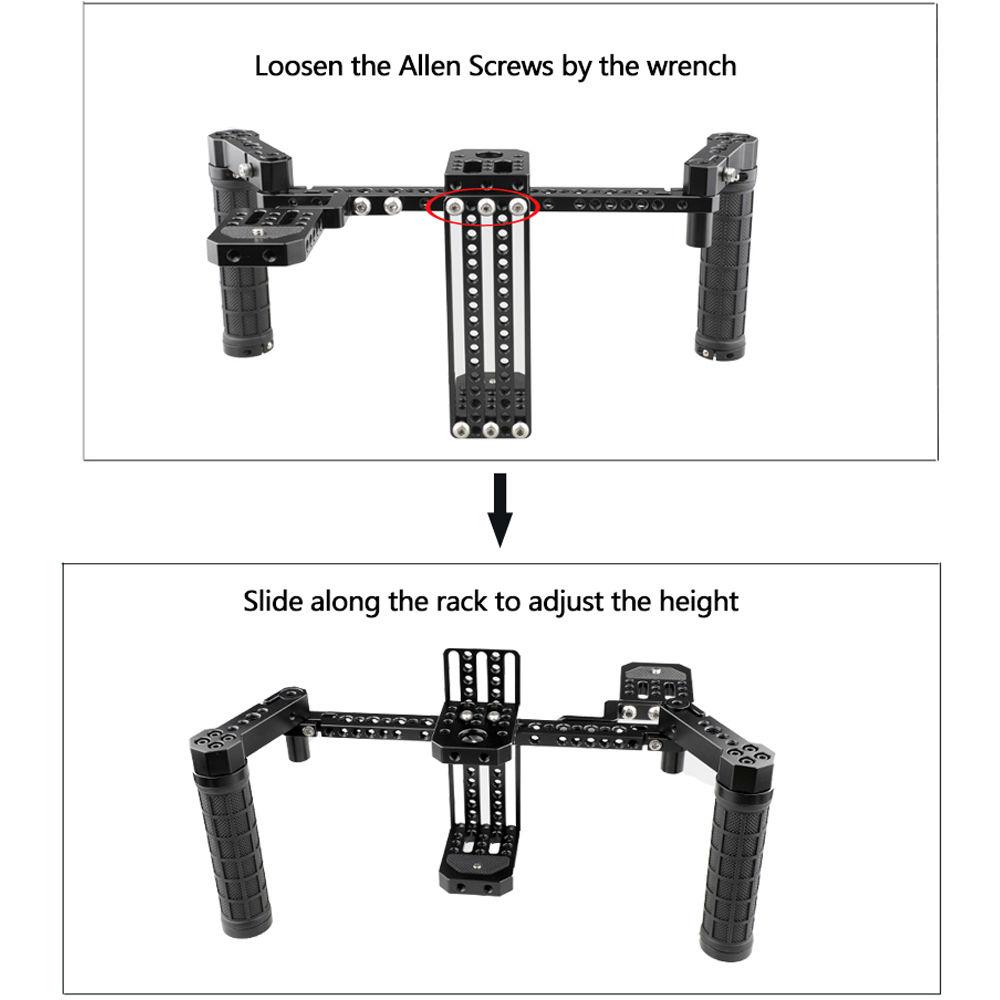

On the front, the center base and top plates attach to a height-adjustable rack where your monitor is mounted snugly, allowing for fine adjustment of the plates to fit the width and height of your monitor. All the components are attached using Allen screws, and the handgrips feature locking levers for rotation. - Modular, adjustable cage system with durable aluminum construction
- Designed to fit 5 to 7" monitors such as the Atomos Ninja Inferno
- Cheese plate design with numerous 1/4"-20 and 3/8"-16 threaded holes for attachments
- Attach battery plates and wireless transmission system
- Comfortable, adjustable rubber handgrips allow for portability

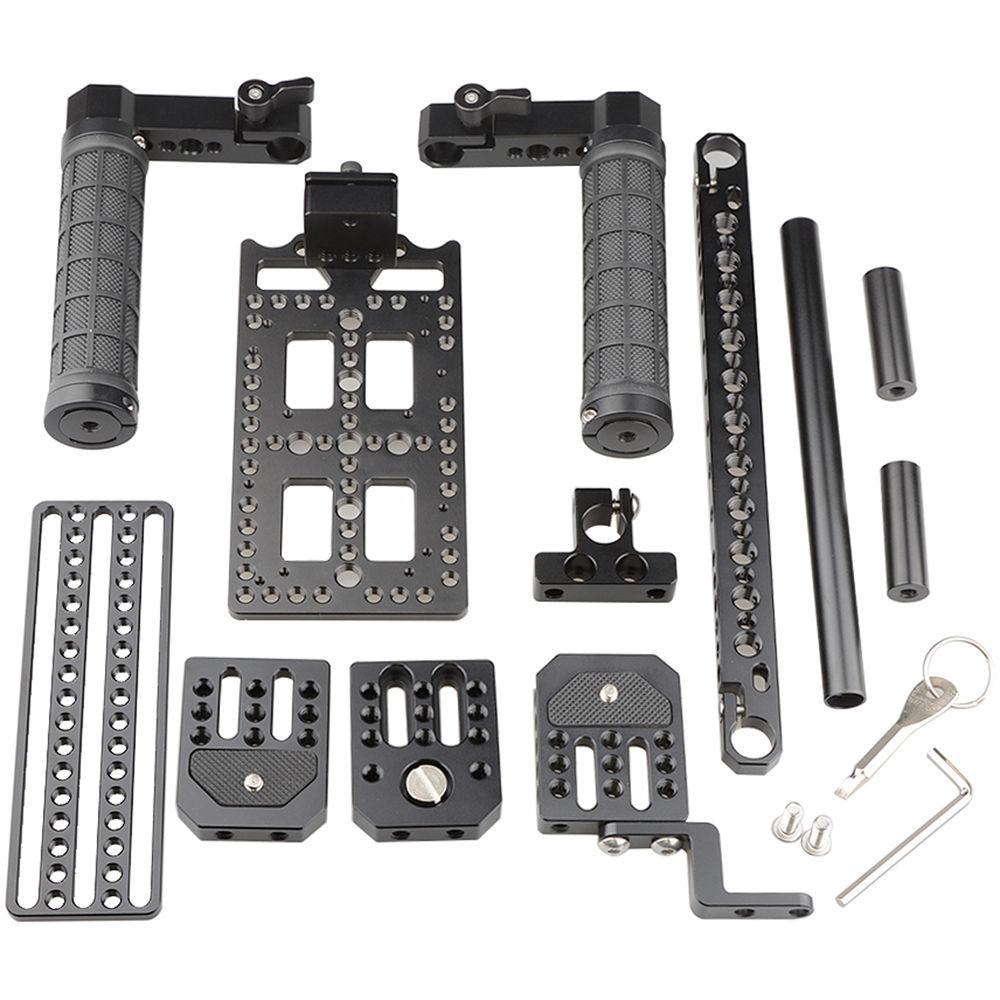

UPC: 711202830622 In the Box CAMVATE Director's Monitor Cage Kit with Adjustable Rack 15mm Aluminum Rod (7.9") Connecting Cheese Rod Mounting Cheese Plate with Rod Clamp Connector Rack for Height Adjustment Top Plate Baseplate Plate with Short Connecting Arm 2 x Rubber Handgrip 2 x 15mm Micro Rod (2") Pack of Screws Allen Wrench Flat Head Screwdriver Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAMVATE Director's Monitor Cage Kit with Adjustable Rack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAMVATE C1757 Specs | Construction | Aluminum | | Threaded Holes | 1/4"-20 and 3/8"-16 | | Dimensions | 10.6 x 6.3 x 7.9" / 27 x 16 x 20 cm | | Weight | 2.5 lb / 1.15 kg | | | | Package Weight | 2.995 lb | | Box Dimensions (LxWxH) | 10.4 x 7.3 x 6.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 45 owners. Add your rating and experience with the product.
