User Manual for CAMVATE Mounting Cheese Plate with 15mm Rod Block and Clamp Click to enlarge the picture
Contents of the user manual for the CAMVATE Mounting Cheese Plate with 15mm
- Product category: Rod Brackets & Clamps CAMVATE
- Brand: CAMVATE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAMVATE Rod Brackets & Clamps
 |
User manual for the CAMVATE Mounting Cheese Plate with 15mm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAMVATE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAMVATE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAMVATE product will considerably shorten its lifespan!
|

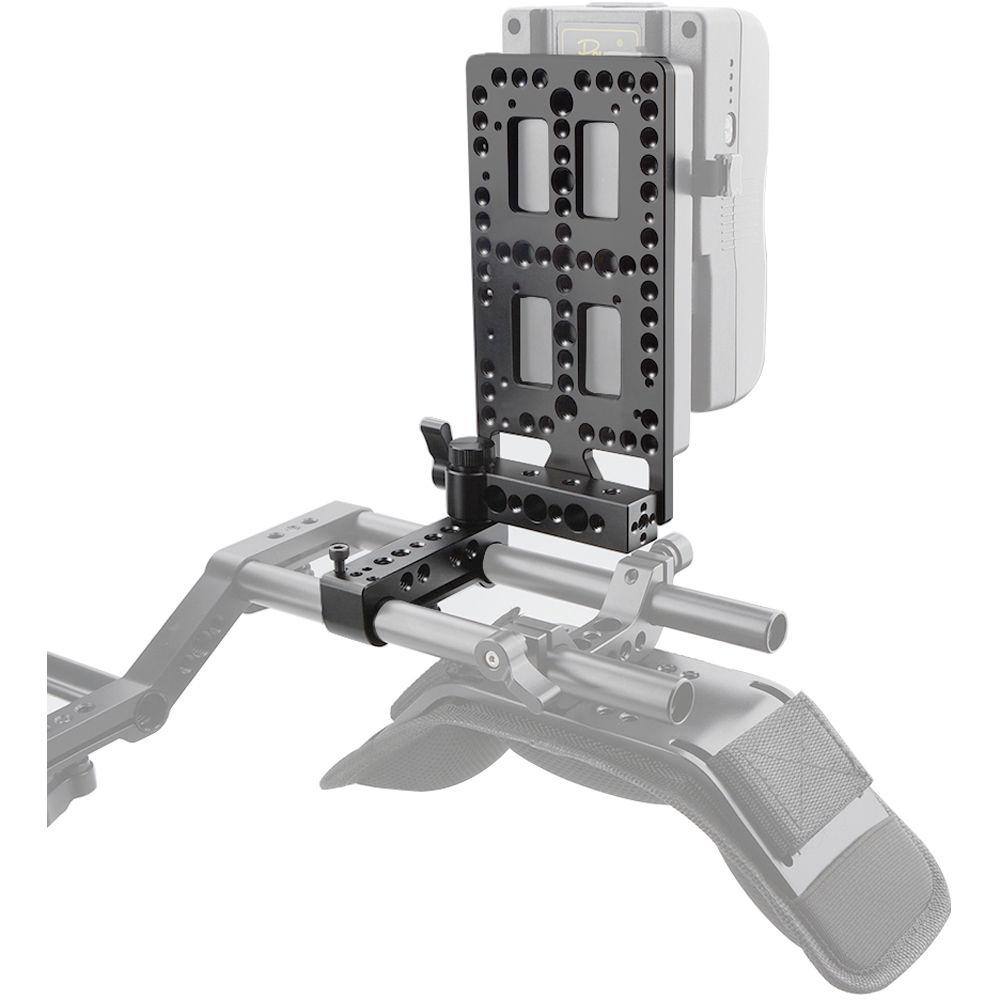

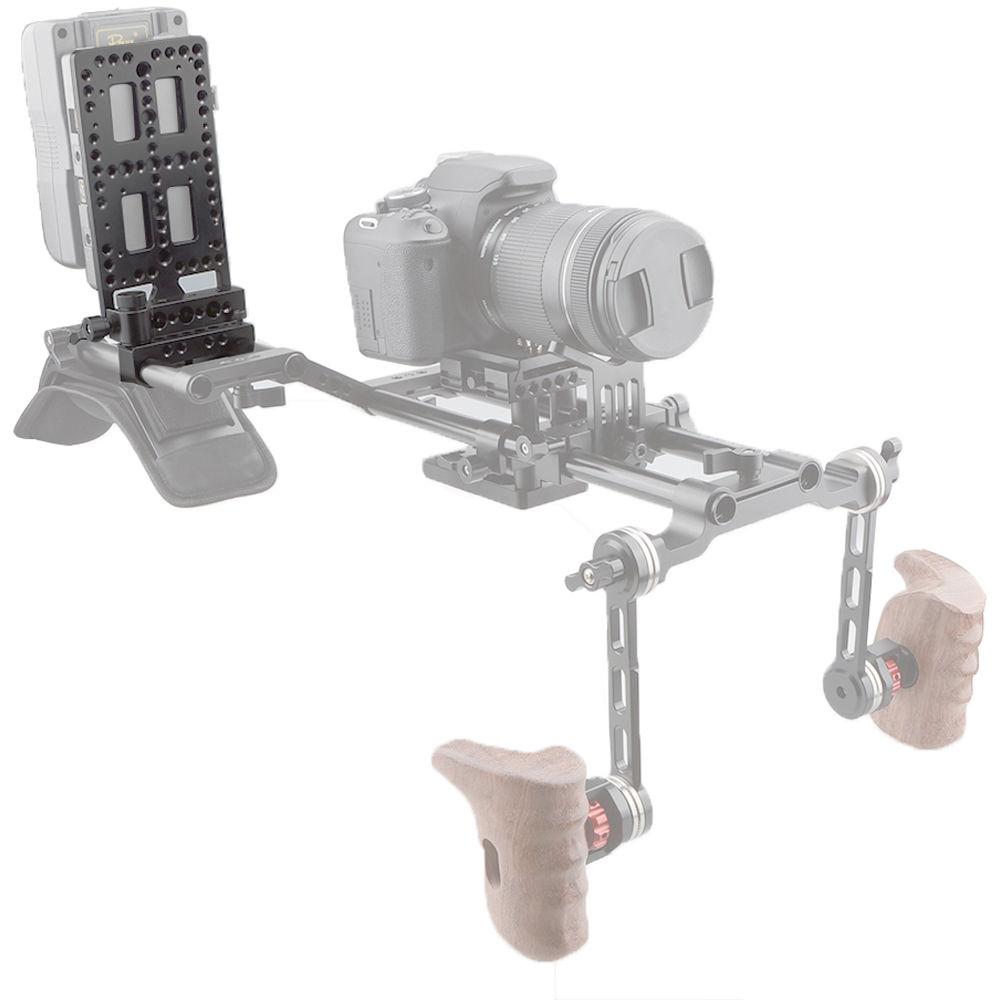

Product description Expand your cage or rig with this Mounting Cheese Plate with 15mm Rod Block and Clamp from CAMVATE. With a maximum payload of approximately 4.4 lb, the aluminum mounting plate can be used to connect a battery mount, arms, converters, or various accessories to a standard 15mm rod system.

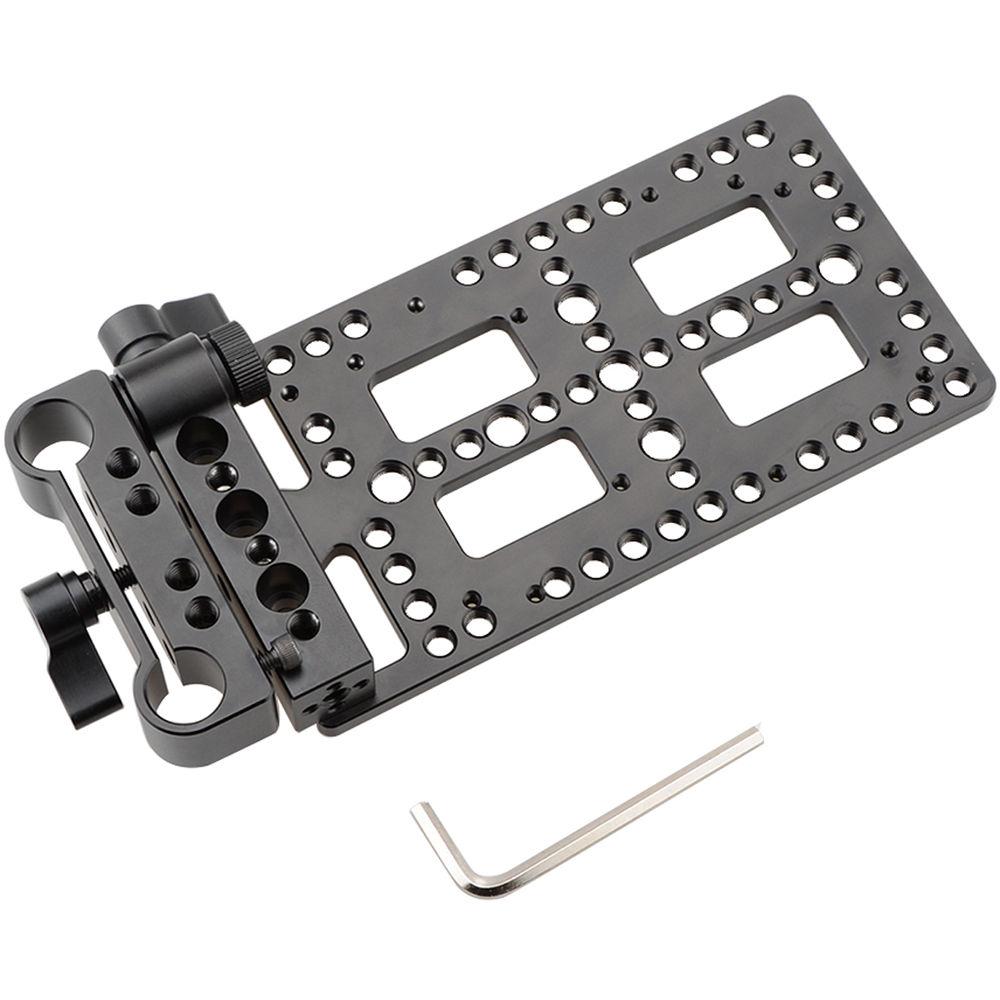

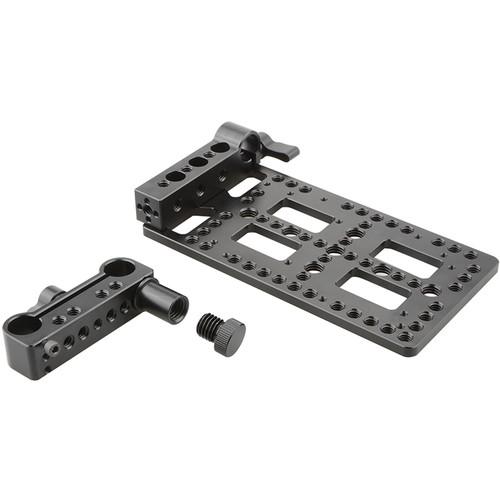

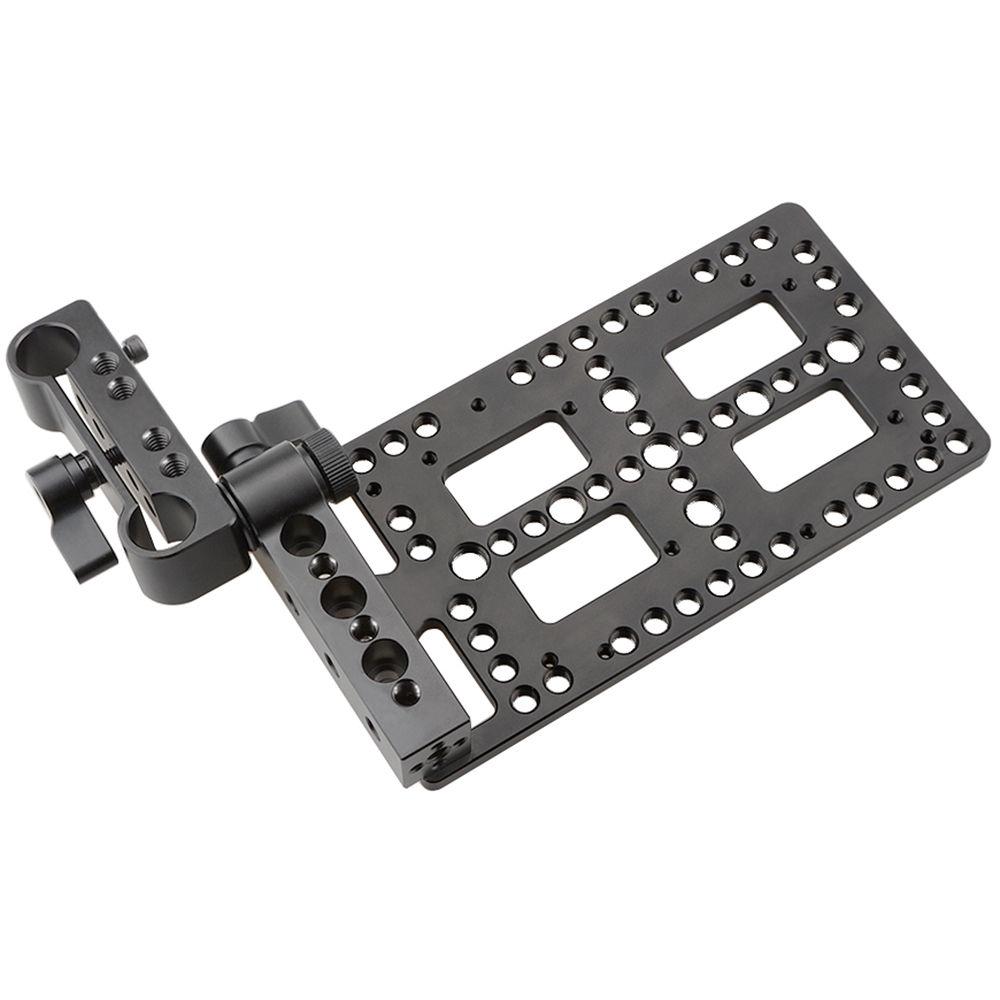

The clamp affixes to the cheese plate with two 1/4"-20 screws, and the 15mm rod block connects to the clamp via a 15mm mini shaft that allows the plate to swivel. The swivel shaft is tightened with a thumbscrew, and the 15mm rod block is tightened with a locking lever. The rod clamp, rod block, and mounting plate all have multiple 1/4"-20 and 3/8"-16 threaded holes for various mounting options. In the Box CAMVATE Mounting Cheese Plate with 15mm Rod Block and Clamp 15mm Rod Block Rod Block Adapter 2 x 1/4"-20 Screws Allen Wrench Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAMVATE Mounting Cheese Plate with 15mm Rod Block and Clamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

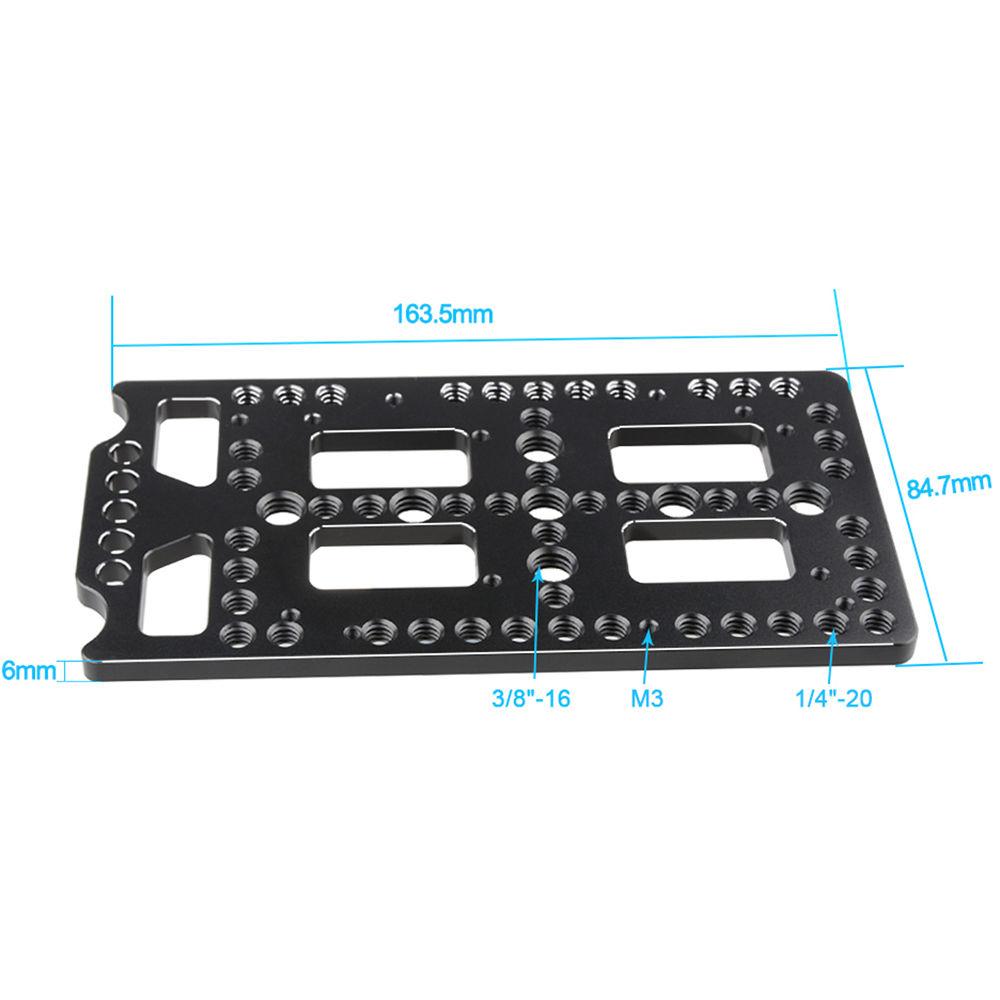

Technical parametersCAMVATE C1834 Specs | Material of Construction | Aluminum | | Rod System | 15 mm | | Threaded Mounting Holes | Multiple 1/4"-20 and 3/8"-16 | | Maximum Load Capacity | 4.4 lb / 2 kg | | Dimensions | Plate Only: 6.5 x 3.3 x 0.2" / 16.4 x 8.5 x 0.6 cm
Rod Block: 3.1 x 0.8 x 1.4" / 8 x 2 x 3.5 cm
Clamp Adapter: 3.9 x 0.7 x 1" / 9.8 x 1.9 x 2.6 cm | | Weight | 10.2 oz / 290 g |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 93 owners. Add your rating and experience with the product.
