User Manual for CAMVATE Shoulder Rig with 15mm Rod System and Lens Support

Click to enlarge the picture
CAMVATE Shoulder Rig with 15mm Rod System and Lens Support Contents of the user manual for the CAMVATE Shoulder Rig with 15mm Rod
  • Product category: DSLR Video Supports & Rigs CAMVATE
  • Brand: CAMVATE
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for CAMVATE DSLR Video Supports & Rigs

CAMVATE Shoulder Rig with 15mm Rod System and Lens Support CAMVATE Shoulder Rig with 15mm Rod System and Lens Support CAMVATE Shoulder Rig with 15mm Rod System and Lens Support CAMVATE Shoulder Rig with 15mm Rod System and Lens Support CAMVATE Shoulder Rig with 15mm Rod System and Lens Support
User manual for the CAMVATE Shoulder Rig with 15mm Rod contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any CAMVATE product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official CAMVATE user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a CAMVATE product will considerably shorten its lifespan!



Product description

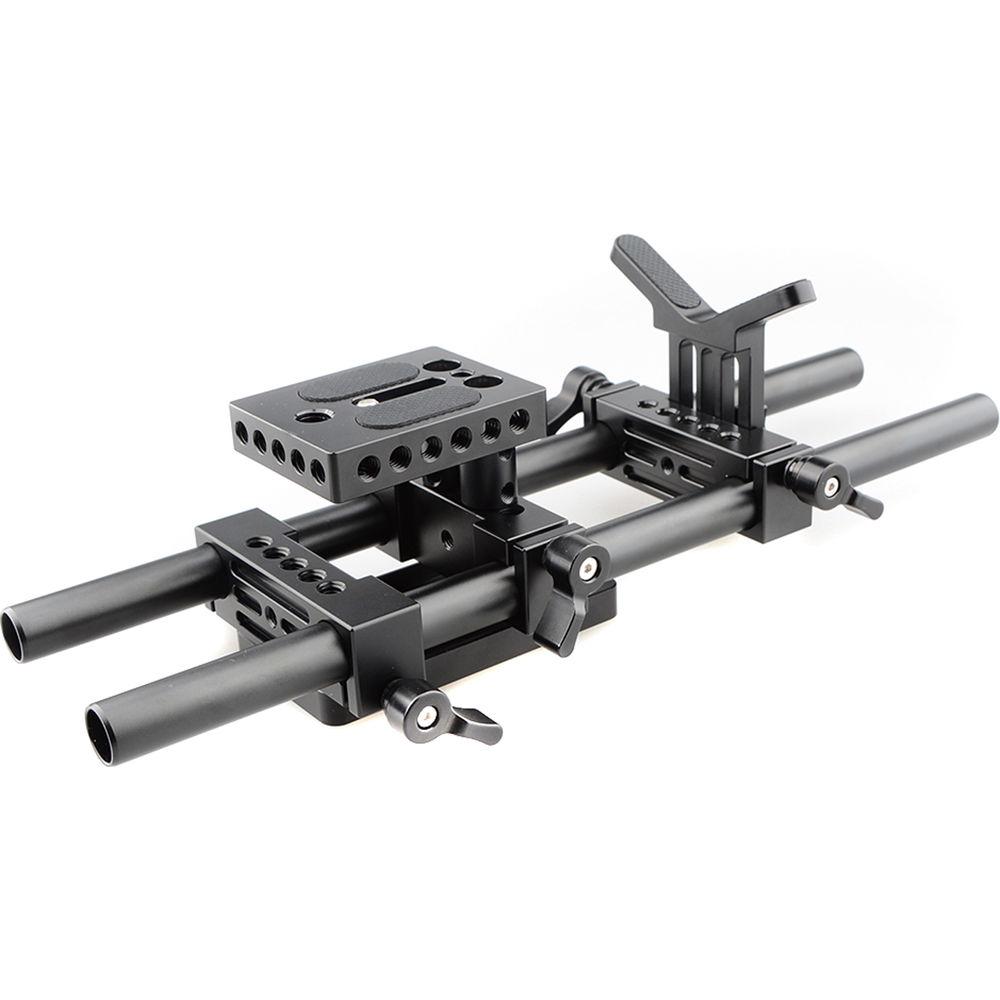

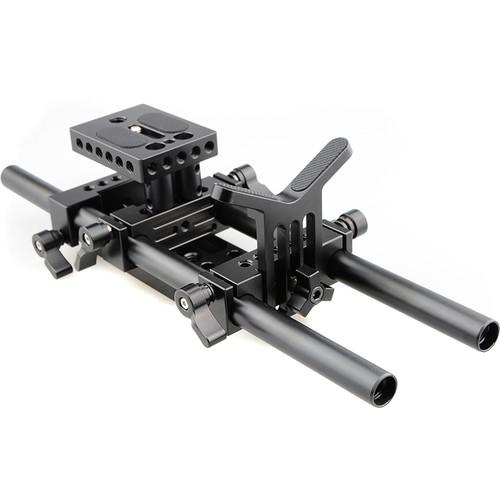

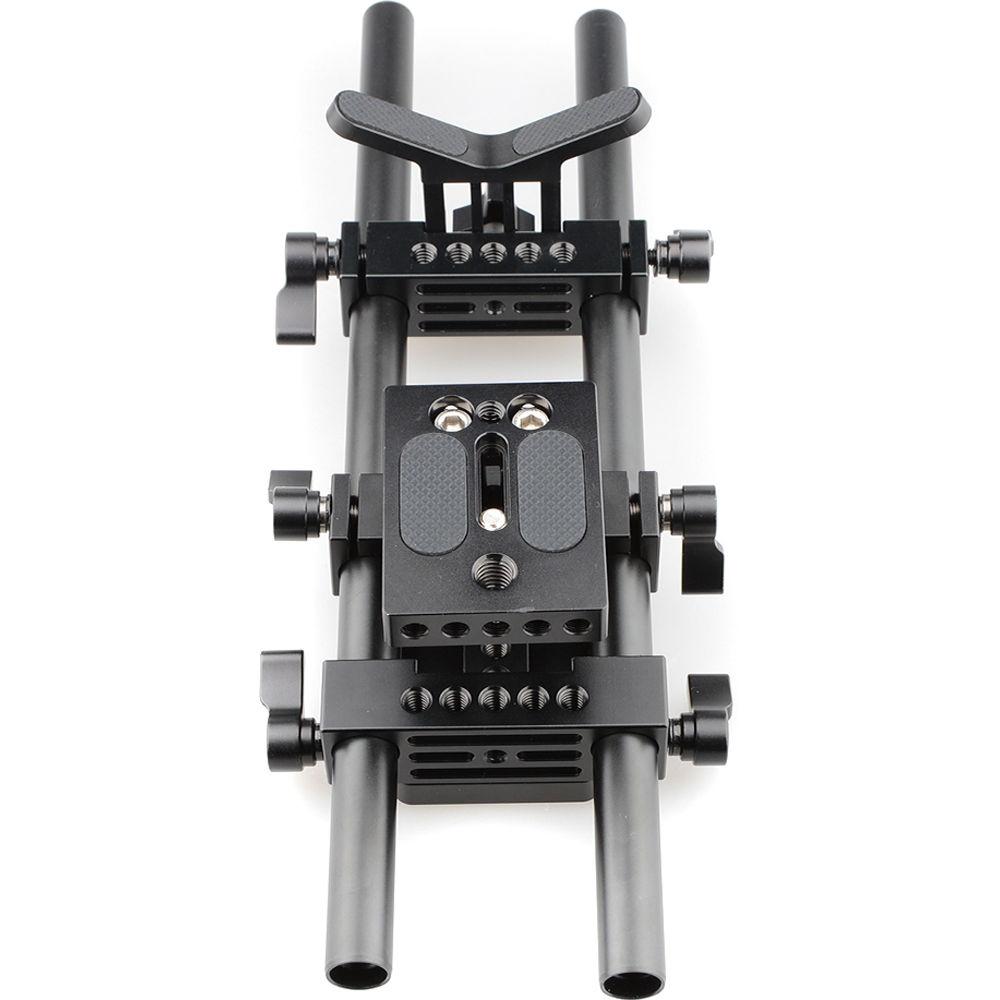

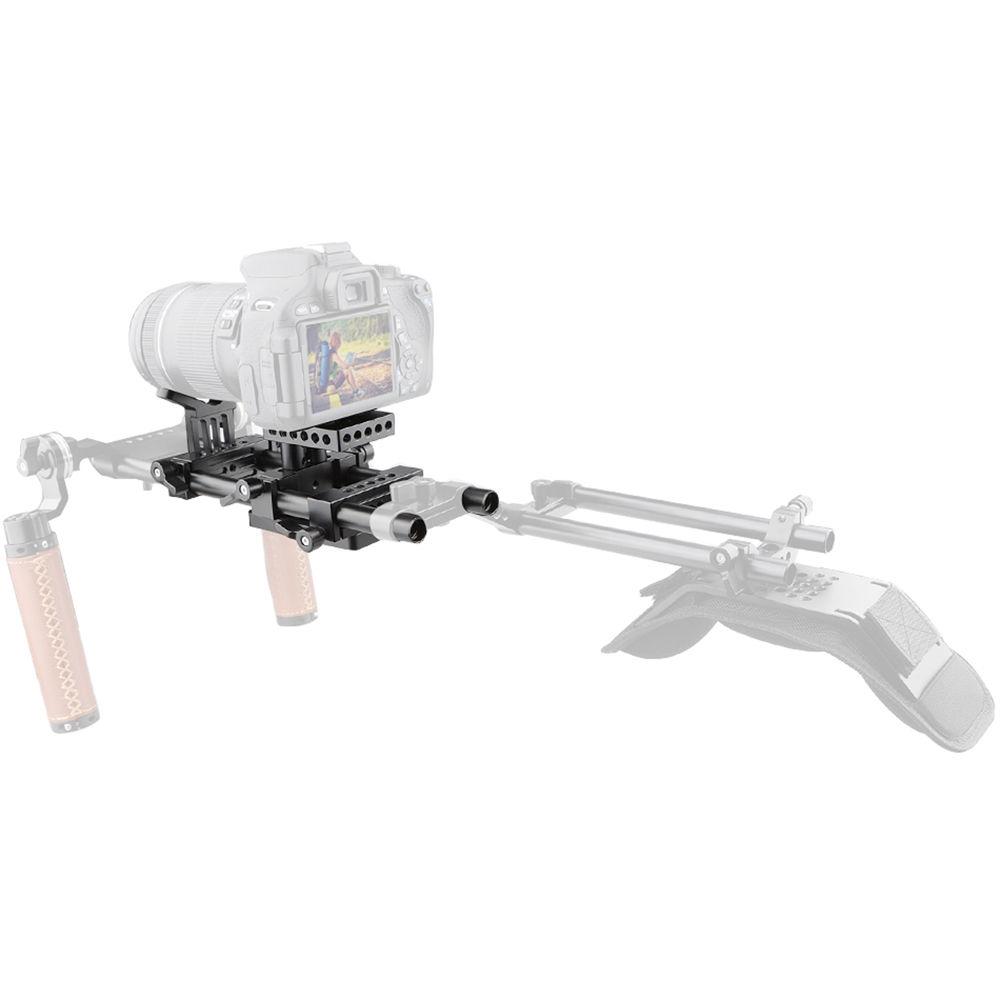

Take your shoot mobile or quickly mount on a tripod with the Shoulder Rig with 15mm Rod System and Lens Support from CAMVATE. This lightweight shoulder rig supports most DSLRs and small camcorders. Easy to assemble, the rig is made up of a tripod mounting plate, a camera baseplate, and a lens support bracket. Each component uses railblocks with standard 15mm rod clamps with locking levers to affix to two 11.8" long 15mm rods.

The tripod mounting plate features 1/4"-20 and 3/8"-16 threaded holes to mount on any tripod, and the camera baseplate features a 1/4"-20 mounting screw and rubber padding to secure and protect your camera. The Y-shaped lens support bracket is height-adjustable to a maximum of 2.3" and fits lenses with a 50 to 140mm diameter. Soft padding on the top helps absorb vibration to keep your lens steady. Slide the components along the rods to fit the size of your camera and lens, and use them to mount additional accessories. All rig components are made of CNC-machined lightweight aluminum, and an Allen wrench and screws for assembly are included.
  • CNC-machined, lightweight aluminum construction
  • Easy to assemble; all parts affix to rods with standard 15mm rod clamps with locking levers
  • Two standard 11.8" long 15mm rods allow mounting various accessories
  • Padded, Y-shaped lens support fits lenses with 50 to 140mm diameter
  • Camera baseplate features a standard 1/4"-20 mounting screw
  • Tripod mounting plate provides multiple 1/4"-20 and 3/8"-16 threaded holes to fit any tripod
  • An Allen wrench and screws for assembly are included

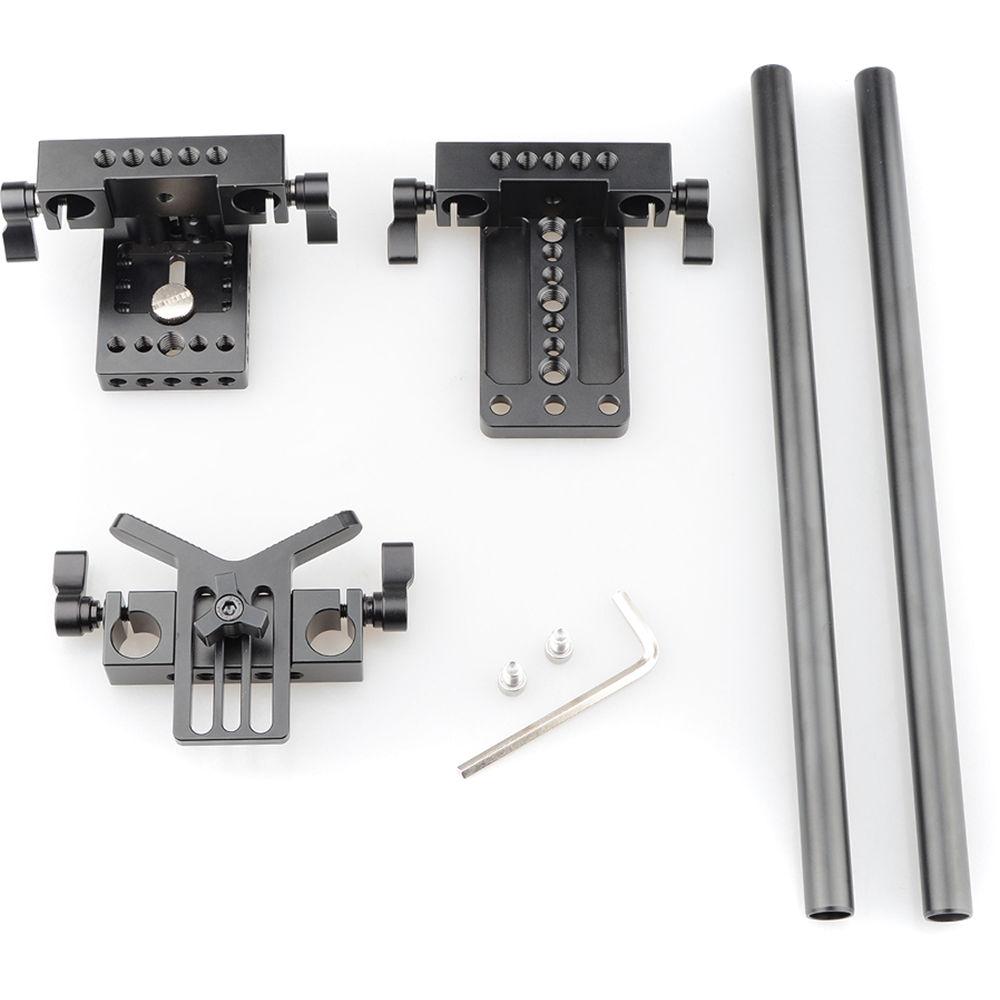

In the Box CAMVATE Shoulder Rig with 15mm Rod System and Lens Support
  • 2 x 15mm Rod (11.8")
  • Lens Support Bracket
  • Tripod Mounting Plate
  • Camera Baseplate
  • Allen Wrench
  • 2 x Screw
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the CAMVATE Shoulder Rig with 15mm Rod System and Lens Support in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    CAMVATE C1819 Specs

    Material of Construction Aluminum
    Lens Support Lens Diameter: 50 to 140mm
    Bracket Max. Height: 2.3" / 60 mm
    Rod Dimensions Diameter: 15 mm
    Length: 11.8" / 30 cm
    Threaded Mounting Holes 1/4"-20 and 3/8"-16

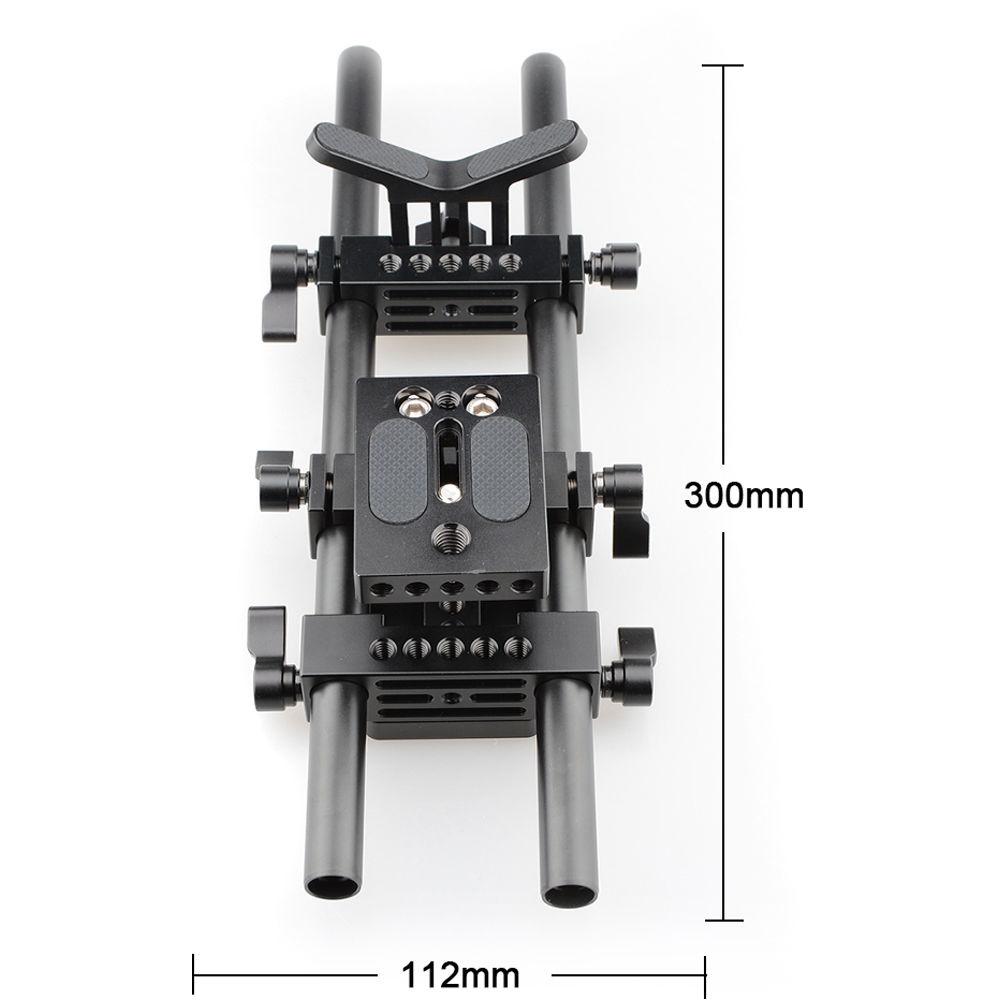

    Dimensions (L x W) Assembled Kit: 11.8 x 4.4" / 30 x 11.2 cm
    Weight 1.4 lb / 619 g
