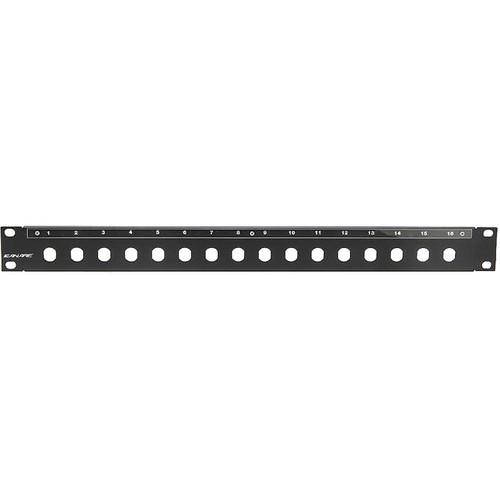

Product description The Canare 161U-DD A/V Bulkhead Panel (Unloaded Patch / DD-mount) is a 1RU panel that offers 16 ISO Standoff BNC/RCA/F/XLR connectors. Built from 16-gauge cold-rolled steel, the sturdy matte black powder coat finished panel offers high strength and durability. In addition to top and bottom panel reinforcement folds and M2.5 tapped holes for connector mounts, the 161U-DD A/V Bulkhead Panel also features clear designation strips positioned over channel ID numbers. Along with standard ITT Cannon footprint for connectors, the panel also offers standard ISO bushing color (WHT) or a range of custom ISO bushing colors (BLK / BLU / GRN / RED / YEL). Being compact (19 x 1.7"), the 161U-DD A/V Bulkhead Panel is ideal for use in television headends and master control rooms as well as satellite, telecom, and broadband applications. - 1RU panel for 16 ISO Standoff BNC/RCA/F/XLR connectors
- Made from 16-gauge cold-rolled steel (1.62mm) with a sturdy matte black powder coat panel finish
- Includes top and bottom panel reinforcement folds and M2.5 tapped holes for connector mounts
- Comes with clear designation strips positioned over channel ID numbers
- Standard ITT Cannon footprint connectors
- Standard ISO bushing color (WHT) / custom ISO bushing colors (BLK / BLU / GRN / RED / YEL)
- Ideal for use in television headends and master control rooms as well as for satellite, telecom, and broadband applications
In the Box Canare 161U-DD A/V Bulkhead Panel (Unloaded Patch / DD-mount) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare 161U-DD A V Bulkhead Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare 161U Specs | Connectors | None | | Panel Size | 19 x 1.7" (483 x 43mm) - 1 RU | | Connector Type | N/A | | Panel Style | DD-Mount Holes | | Characteristics | ITT Cannon Footprint
Standard ISO Bushing Color: White
Custom ISO Bushing Colors: Black, Blue, Green, Red, Yellow | | Construction | Material: Strong 16 gauge Cold Rolled Steel 0.06" (1.62mm) Panel
Finish: Matte Black Powder Coat Panel Finish | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 19.0 x 2.3 x 0.7" |
