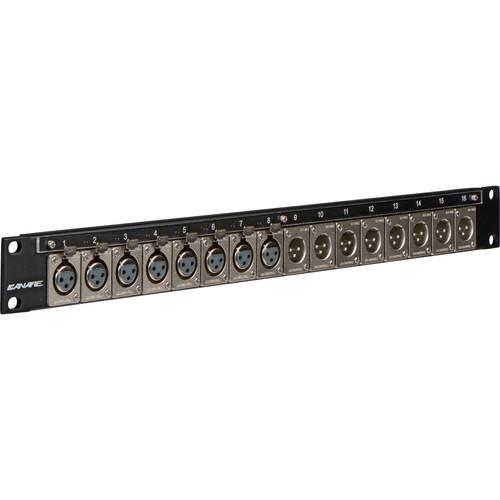

User Manual for Canare 161U-X12F AV Bulkhead Panel with 8x XLRF & 8x XLRM to Solder Connectors Click to enlarge the picture
Contents of the user manual for the Canare 161U-X12F AV Bulkhead Panel with
- Product category: Audio Patchbays Canare
- Brand: Canare
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canare Audio Patchbays
|
User manual for the Canare 161U-X12F AV Bulkhead Panel with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canare product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canare user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canare product will considerably shorten its lifespan!
|
Product description The 161U-X12F AV Bulkhead Panel from Canare offers the ability to bridge eight XLRF and eight XLRM to solder connectors. This unit features a footprint of 1 RU and can be mounted in a standard 19" equipment rack. This solution is well suited for use in recording studios, multimedia edit suites, master control rooms, and telecom installations, among other possible applications and settings. Its construction is designed to withstand rigorous use and features cold-rolled steel construction, reinforced folds, and a black matte powder-coat finish. Clear plastic desi-strips and channel ID numbers allow you to better organize your installation. - 16-gauge cold-rolled steel panel
- Top- and bottom-panel reinforcement folds
- Matte black powder-coat finish
- Tapped screw holes for connector mounts
- Clear plastic desi-strips and channel ID numbers
In the Box Canare 161U-X12F AV Bulkhead Panel with 8x XLRF & 8x XLRM to Solder Connectors Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare 161U-X12F AV Bulkhead Panel with 8x XLRF & 8x XLRM to Solder Connectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare 161U Specs | Inputs/Outputs | 8x XLRF and 8x XLRM to solder connectors | | Dimensions (HxW) | 1.7 x 19" (43.18 x 482.6mm) | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 20.2 x 4.9 x 2.8" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 59 owners. Add your rating and experience with the product.
