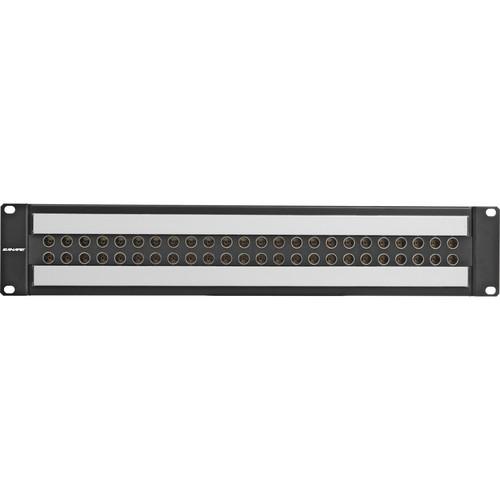

User Manual for Canare 24DV-2U 2x24 Digital Video Patchbay Click to enlarge the picture
Contents of the user manual for the Canare 24DV-2U 2x24 Digital Video Patchbay
- Product category: Patchbays Canare
- Brand: Canare
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canare Patchbays
|
User manual for the Canare 24DV-2U 2x24 Digital Video Patchbay contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canare product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canare user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canare product will considerably shorten its lifespan!
|
Product description Designed and built to provide "true" broadcast-quality HDTV digital video signal routing capabilities, Canarie introduces its 24DV-2U 2x24 Digital Video Patchbay into the professional arena. It combines unsurpassed clarity and signal reliability with the ability to pass uncompressed HD-SDI 1080p video signals up to an amazing 3Gbps. Its rugged 2RU design features a wide designation strip for professional labeling and houses (24) DVJB-W 75 Ohm dual loaded video jacks, providing up to 48 patch points, which is ideal when integrating into existing or newly configured matrix routing systems. Each jack boasts an independently developed rotary switch that offers a dual-contact construction for improved contact stability. Specifically designed for use with high frequency signals, these jacks provide superior signal isolation and can double as a digital audio AES/EBU patching solution. Moreover, each DVJB-W jack features "normal through" signal routing that provides a normalled route between top and bottom jacks - and it utilizes VPC series patch cords. Aside from its lightweight aluminum alloy construction, the overall video signal characteristics and Return Loss and Isolation specifications of the Canarie 24DV-2U intrinsically meet the high demands of high profile broadcast operations often required by HDTV/SDTV studios, digital mobile units, OB vans, uplink trucks, edit suites, or a variety of corporate and commercial video applications. - Supports 3G-Ready HD-SDI Signals
- This cost effective high-performance 75 Ohm video patch bay allows high-resolution HDTV digital video signals to pass through. It supports uncompressed 3G-Ready HD-SDI digital signals (SMPTE 424M Standard) and can double as a digital audio AES/EBU patchbay.
- DVJB-W 75 Ohm Dual Video Jacks
- Built into the DV24-2U are (24) DVJB-W 75 Ohm dual video jacks that offer Normal Through signal path technology for your specific routing requirements. It features BNC-BNC: Normal Through, BNC-VIDEO: Patch Through and BNC-Self Termination capabilities and a Return Loss as follows: 26dB or greater @ 750MHz, 20dB or greater @ 2.4GHz and 10dB or greater @ 3.0GHz. In addition, it features a lightweight aluminum alloy construction and Beryllium copper, gold-plated center contacts.
- Rotary Switch Technology
- Each video jack is specifically designed for use with high-frequency signals. It incorporates an independently-developed rotary switch, which provides superior signal isolation (35dB or greater @ 750MHz and 20dB or greater @ 3.0GHz) and utilizes dual contact construction for improved contact stability.
- Wide Designation Strips
- The front-panel of the DV24-2U are (2) extra wide designation strips, which provide ample label or writing space for proper identification above and below each jack.
- Versatility
- The side rack ears can be adjusted to recess the front panel of the unit up to 25mm deeper into the rack.
In the Box Canare 24DV-2U 2x24 Digital Video Patchbay (2U) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare 24DV-2U 2x24 Digital Video Patchbay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare 24DV-2U Specs | Type | Digital Video Patchbay | | Configuration | 2x24 | | Signal | HD-SDI (SMPTE 424M Standard) | | Impedance | 75 Ohm | | Return Loss | 26dB or greater @ 750MHz
20dB or greater @ 2.4GHz
10dB or greater @ 3.0GHz | | Isolation | 35dB or greater @ 1.5GHz
20dB or greater @ 3.0GHz | | Routing | Normal Through
Video Port (front): No Patch - BNC Port (rear): Signal Loop
Video Port (front): Patch Upper - BNC Port (rear): Lower Terminated
Video Port (front): Patch Lower - BNC Port (rear): Upper Terminated
Video Port (front): Patch Both - BNC Port (rear): Signal Thru | | Connections | Front Patch (Female) uses VPC Type Patch Cords
Rear BNC (Female) uses Industry Standard Male BNC Connectors | | Contact | Beryllium Copper, Gold-Plated Center | | Construction | Lightweight Aluminum (video jacks) | | Rack Units | 2RU | | Dimensions (WxHxD) | 19 x 3.4 x 3.3" (482.6 x 88 x 85mm) | | Weight | Not Specified By Manufacturer | | Color | Black | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 24.5 x 8.0 x 3.0" |
