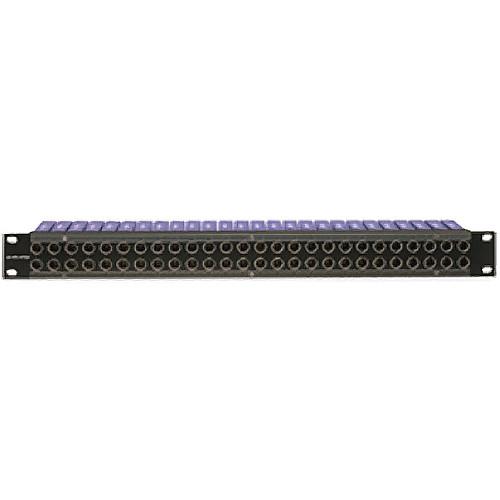

Product description The Canare 26DVS / Digital Patchbay (2 x 26 / Straight Through) is used to quickly change the path of select signals without the need for dedicated switching equipment. It comes loaded with 26 DVJB-S 75 ohm dual video jacks and is compatible with HD-SDI, Serial Digital Video, and NTSC Analog. With a frequency ranging from DC to 3.0 GHz and a return loss of 20 dB, the 26DVS Digital Patchbay is ideal for use in OB vans and for HDTV upgrades. Thanks to its compact size (19 x 1.7 x 3.3" / 483 x 44 x 85 mm) and an easy front mount assembly, this 1RU patch panel proves suitable for satellite headends and broadband telecom sites, where rack space is minimal. In addition to Canare's rotary switch, this lightweight alloy patchbay also comes with beryllium copper and gold-plated center contacts. - Used to quickly change the path of select signals without dedicated switching equipment
- Loaded with 26 DVJB-S 75ohm dual video jacks and offers a straight through circuit
- Compatible with HD-SDI, Serial Digital Video, and NTSC Analog
- Offers bandwidth ranging from DC to 3.0 GHz and a return loss of 20 dB
- Ideal for use in OB vans and small production studios and for HDTV upgrades
- Compact size (19 x 1.7 x 3.3" / 483 x 44 x 85 mm)
- Easy front mount assembly
- Suitable for satellite headends and broadband telecom sites
- Equipped with Canare's proprietary rotary switch
- 1RU lightweight alloy body with beryllium copper and gold-plated center contacts
In the Box Canare 26DVS / Digital Patchbay (2 x 26 / Straight Through) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare 26DVS Digital Patchbay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare 26DVS Specs | Panel Size | 1RU | | Jack | x26 (DVJB-S) | | Configuration | 2 x 26 | | Patch Point | 52 | | Dimensions (WxHxD) | 19 x 1.7 x 3.3" (483 x 44 x 85mm) |
