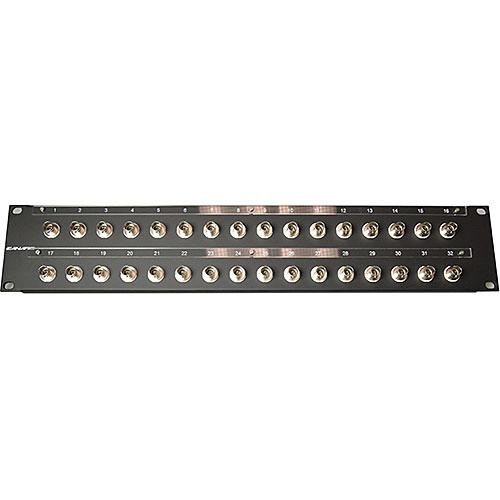

Product description The 2 RU Canare 322U-BJRK is a 12G A/V BNC standoff panel with 32 BNC jack-to-jack receptacles designed to provide multichannel isolated BNC pass-through functionality for A/V installers and system integrators in television, video, and broadcast production. The panel is constructed of 16-gauge, cold-rolled steel for sturdiness, and finished in black powder coat for protection against scratches and scrapes. Reinforcement folds on its top and bottom deliver enhanced stability.The standoff receptacles loaded into the panel incorporate a BNC female connector on each end. They boast 75 Ohm impedance and minimal return loss, making them ideal for 12G-SDI video installations. - 322U A/V Bulkhead Panel (Unloaded Patch / Flush Mount) The Canare 322U A/V Bulkhead Panel (Unloaded Patch / Flush Mount) is a 2RU panel that allows you to flush mount 32 unified series connectors including BNC, RCA, F, and XLR. Built from 16-gauge cold-rolled steel, the sturdy matte black powder coat finished panel offers high strength and durability. In addition to top and bottom panel reinforcement folds and M2.5 tapped holes for connector mounts, the 322U A/V Bulkhead Panel also features clear designation strips positioned over channel ID numbers. Along with standard ITT Cannon footprint for connectors, the panel also offers standard ISO bushing color (WHT) or a range of custom ISO bushing colors (BLK / BLU / GRN / RED / YEL). Being compact (19 x 3.5"), the 322U A/V Bulkhead Panel is ideal for use in television headends and master control rooms as well as satellite, telecom, and broadband applications.
- 2RU panel for 32 unified series flush-mount connectors including BNC, RCA, F, and XLR
- Made from 16-gauge cold-rolled steel (1.62mm) with a sturdy matte black powder coat panel finish
- Includes top and bottom panel reinforcement folds and M2.5 tapped holes for connector mounts
- Comes with clear designation strips positioned over channel ID numbers
- Standard ITT Cannon footprint connectors
- Standard ISO bushing color (WHT) / custom ISO bushing colors (BLK / BLU / GRN / RED / YEL)
- Ideal for use in television headends and master control rooms as well as for satellite, telecom, and broadband applications
- BCJ-JRK BNC to BNC Stand-Off Receptacle for 12G-SDI Installations The Canare BCJ-JRK is a BNC to BNC stand-off receptacle designed to provide jack-to-jack patching connectivity for technicians and system integrators in broadcast, television, video, and audio studios. Its 75 Ohms impedance and minimal return loss of 15 dB at 12 GHz makes it ideal for use in 12G-SDI video installations. The stand-off design requires no soldering for installation or cable connections. The receptacle accepts insulation bushing IU-7/16.
- Minimized return loss (15 dB at 12 GHz, 26 dB at 3 GHz)
- Compliant with SMPTE ST 2082-1:2015
- Used for applications such as multimedia edit suites, master control rooms, satellite, telecom, and broadband
In the Box Bundle Items 322U A/V Bulkhead Panel (Unloaded Patch / Flush Mount) yzrysfbadszddsrtdfzytzusyztceuxfcte 32 x BCJ-JRK BNC to BNC Stand-Off Receptacle for 12G-SDI Installations yzrysfbadszddsrtdfzytzusyztceuxfcte Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare 322U-BJRK 12G A V BNC Stand-Off Panel with Receptacles in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 322U A/V Bulkhead Panel (Unloaded Patch / Flush Mount)
| Connectors | None | | Panel Size | 19 x 3.5" (483 x 89mm) - 2 RU | | Connector Type | N/A | | Panel Style | Flush Mount | | Characteristics | ITT Cannon Footprint
Standard ISO Bushing Color: White
Custom ISO Bushing Colors: Black, Blue, Green, Red, Yellow | | Construction | Material: Strong 16 gauge Cold Rolled Steel 0.06" (1.62mm) Panel
Finish: Matte Black Powder Coat Panel Finish | | | | Box Dimensions (LxWxH) | 19.6 x 4.1 x 0.7" | - BCJ-JRK BNC to BNC Stand-Off Receptacle for 12G-SDI Installations
| Connector Type | BNC female | | Impedance | 75 Ohms | | Bandwidth | VSWR Return Loss DC (2 GHz): <1.1, >26 dB | | Return Loss | 15 dB at 12 GHz
26 dB at 3 GHz | | Plating | Center Contact: Beryllium copper/gold
Body: Brass/nickel | | Plate Type | N/A | | Dielectric | PTFE | | Insulation Resistance | >1000 MOhms at 500 VDC | | Voltage Rating | 1500 VAC (RMS) for 1 minute | | Contact Resistance | Center: <6 mohms
Outer: <3 mOhms | | Compliance | SMPTE ST 2082-1:2015 | | Dimensions | Plate Hole (W x H): 0.4 x 0.4" / 9.6 x 11.2 mm
Receptacle (D x H): 1.3 x 0.6" / 33.1 x 14.0 mm | | | | Box Dimensions (LxWxH) | 1.7 x 0.6 x 0.6" |
