User Manual for Canare 50' GS6RASSTS50 GS-6 Guitar Instrument Cable Click to enlarge the picture
Contents of the user manual for the Canare 50' GS6RASSTS50 GS-6 Guitar Instrument
- Product category: Guitar Cables Canare
- Brand: Canare
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canare Guitar Cables
|
User manual for the Canare 50' GS6RASSTS50 GS-6 Guitar Instrument contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canare product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canare user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canare product will considerably shorten its lifespan!
|

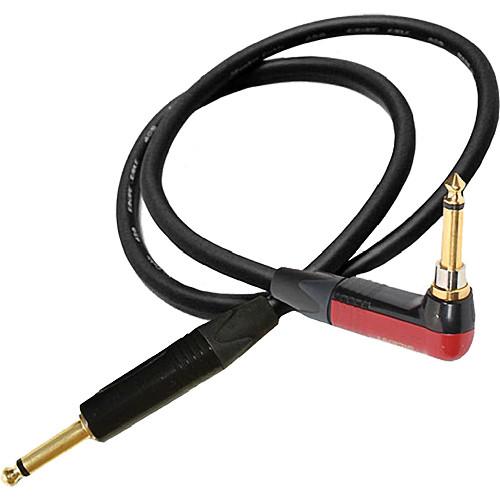

Product description The black unbalanced Canare 50' GS6RASSTS50 GS-6 Guitar/Instrument Cable is hand-assembled with an 18 AWG Canare GS-6 oxygen-free copper cable, a rugged Neutrik Silent right angle 1/4" TS plug, and a Black and Gold straight plug. It is suitable for use with both electric and bass guitar.Along with special polyethylene dielectric and dual shields, this cable also features an extra thick and flexible 127-strand conductor, all of which let you achieve low capacitance and low series resistance. These features also help to improve the frequency response considerably (flat to 50 kHz).A bright, ringing characteristic sound is preserved, even when using HI-Z guitar pickups with long cable runs. The double carbon/braid copper shield construction eliminates micro-phonic handling noise, especially on stage where amplifiers are often set at maximum volume levels.The Neutrik Right Angle TS Silent Plug phone connector automatically mutes (shorts) this instrument cable to avoid pops and squeals when changing the instrument under load. The integrated gold contact reed switch is activated by a spring-loaded magnetic sleeve that un-shorts the contacts only when the jack is fully mated. The switch is hermetically sealed, and is rated for at least 10,000 mating cycles. Note: Always connect the Silent plug end of cable into the Guitar or Instrument, after connecting the other end of cable to an Amplifier, to reduce the chance of amp damage or noisy feedback.
For use with instrument (guitar) applications only.
Damage may occur if connected to amplifier output.
Please note that the signal isn't muted with some types of active electric guitars, which are equipped with tip-ring-sleeve jacks that tap to activate the guitar power supply. - Conductor
- Center conductor (18 AWG) is composed of 127 strands of oxygen-free copper, and resists nicking and corrosion at solder joint. This robust Conductor has been specially designed to cut power loss on Hi-Z guitar pickups and all hot musical instrument signals.
- Insulation
- High-quality frequency response results from using a special polyethylene dielectric that offers low capacitance and low series resistance.
- Special Inner Shield
- Conductive polyvinyl carbon sheath helps dissipate micro-phonic handling noise from high-gain stage amplification.
- Outer Shield
- This cable uses high-density braid that is tightly woven with many thin strands of Oxygen Free Copper. The GS-Series professional level instrument cable will withstand severe flexing, nightly stage workouts, and heavy-duty studio use.
- Jacket
- Tough but flexible PVC jacket resists tears and cracks. Stays pliant and will not stiffen, even at sub-zero temperatures.
Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare 50' GS6RASSTS50 GS-6 Guitar Instrument Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare CAGS6RSSTS50 Specs | | | Connector 1 | Neutrik Silent right angle 1/4" TS plug | | Connector 2 | Black and Gold straight 1/4" plug | | Length | 50.0' (15.2 m) | | Nominal O.D | 0.23" (5.84 mm) | | PVC Jacket Thickness | 0.04" (1.01 mm) (nominal) | | Brittle Point | -56˚F (-49˚C) | | Number of Conductors | 1 | | Insulation | Type: PE
Thickness: 33.5 mil Dielectric Strength = 500 VAC/1 min
Insulation Resistance / 3 Mft = >1,000 MΩ | | Conductor | AWG: 18 (127 / 3.94 quantity / mm)
Cross Section Area: 1.78 in2 (1,550.00 mm2) | | Coverage | For Dual Sheild:
OFC >92%
Carbon braided sleeve | | | | Conductor D.C.R. | <5.6 Ω / 1,000' (<1.8 Ω / 100 m) | | Shield D.C.R | <7.6 Ω / 1,000' (<2.5 Ω / 100 m) | | Nominal Capacitance @ 1 KHz | 49.0 pF/ft (160 pF/m) Capacitance between conductors to shield. | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 8.5 x 8.2 x 1.3" |
