User Manual for Canare 656' RS-422 Data Cable Click to enlarge the picture
Contents of the user manual for the Canare 656' RS-422 Data Cable
- Product category: Serial/Control Cables & Adapters Canare
- Brand: Canare
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canare Serial/Control Cables & Adapters
|
User manual for the Canare 656' RS-422 Data Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canare product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canare user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canare product will considerably shorten its lifespan!
|

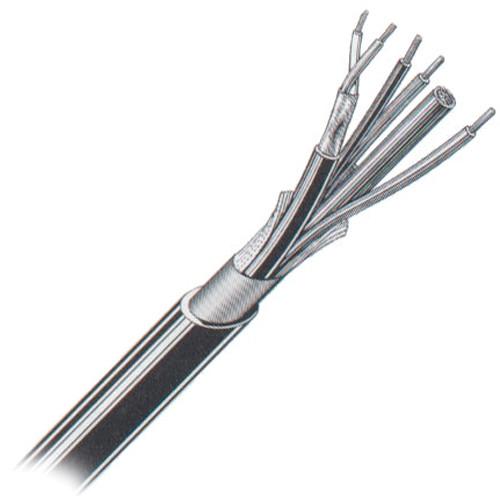

Product description The 656' (200 m) RS-422 Data Cable from Canare can be used for RS-422 signals over short haul equipment interconnect distances. The data channel uses special foam PE insulation for low signal loss. - The data cable can be used in RS-422 remote controls and 9-pin parallel D-subs
- It uses special foam PE insulation for low signal loss
- The cable is RoHS compliant, UL1581 VW-1 rated
- It complies with EIA-422 standard
Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare 656' RS-422 Data Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare A2C3 200M Specs | Bundled Cable Type | Data 2E3FA x2 (twisted pair 110 ohm) C- control V02U x3 | | Channel Overall Diameter | A- 0.098"(2.5 mm) C- 0.049" (1.24 mm) | | Conductor Strand | A- 0.127 mm x7 C- 0.16 mm x11 | | Cross Section Area | A- TAC 0.09 C- TAC 0.22 | | AWG | A- 28 C- 24 | | Dielectric Insulation Type | A- foam PE C- flame-retardant vinyl* *Dielectric Strength = 500 V AC/1min. Insulation Resistance/3Mft = >1000M ohm. | | Color Code | Insulation: A1- red/white, A2- blue/white C- black, brown, red | | Channel Jacket | A- flame-retardant vinyl | | Color Code | Jacket: A1- black, A2- grey | | Shield | Spiral >92.0% | | RoHS | Yes | | Overall Diameter | 0.260" (6.5 mm) | | Length | 656' (200 m) | | Weight | 24 lb (11 kg) |
