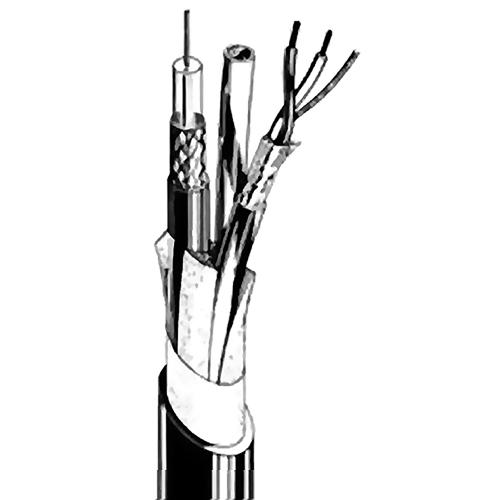

Product description The Canare Audio Video Composite Cable (656' / 200 m) is lightweight with a very thin OD (Outer Diameter) of 0.382” (9.70 mm). This cable includes two 25 AWG-balanced audio lines (Canare L-2B2AT type twisted pair with foil shield and drain wire) and a single 75 Ω video coax channel (Canare L-3C2V, featuring a PE dielectric with solid copper center conductor). - Used for linking audio video equipment and as an extension for video cameras
- Can also be used for the following applications: OB vans, ENG / EFP, A/V Combo Snakes, and home theaters
- Features a combination 2 audio and 1 video lines in the same cable bundle
- Stays flexible even in sub-zero weather
- Special fillers prohibit cable component twisting
- Use with Canare 75 Ω BNC F or RCA crimp plugs
- Designed for fixed installation
In the Box Canare Audio Video Composite Cable (656' / 200 m) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare Audio Video Composite Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare A2V1 200M Specs | Cross Section Area | 0.20 mm², 1/0.5A quantity / mm
#24 (AWG) | | Outer Diameter | Nominal: 0.382" (9.7 mm)
Channel: 0.126" (3.2 mm) audio
0.173" (4.4 mm) video | | Bundled Cable Type | Audio: 2 x Twisted Pair 2B2-AT
Video: 1 x Coax 3C-2V | | Conductor Strand | 16/0.12 quantity/mm
#25 (AWG) Effective AWG of combined twin conductors | | Material | Insulation Type: IPE, orange & white color code (audio)
Clear color code (video) | | Channel Jacket | Audio: PVC, Grey / red & blue color code
Video: PVC, black color code | | Shield Coverage | Audio: AL Foil 100% + TC Drain Wire (22AWG)
Video: 97% or more (braid) | | Impedance | 75 Ω | | Attenuation | 4.1 dB per 100 m at 10 MHz | | Dielectric Strength | 500 VAC / 1 minute | | Conductor D.C.R. | Audio: At 1,000' <31.9
At 100 m: <10.5
Video: At 1000': <28.4
At 100 m: <9.3 | | Shield D.C.R | Video: At 1000': <3.7
At 100 m: <1.2 | | Nominal Capacitance | Audio: 23' pF (73 pF / m) capacitance between conductors
37' pF (120 pF / m) capacitance between conductor and shield | | Length | 656' (200 m) | | Weight | 48.50 lb (22 kg) | | | | Package Weight | 53.35 lb | | Box Dimensions (LxWxH) | 20.5 x 20.4 x 7.5" |
