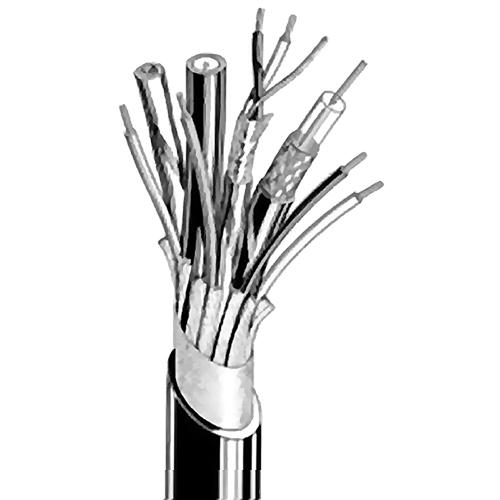

Product description The Canare Audio & Video Composite Cable (328' / 100 m) features 2 balanced audio lines (Canare L-2B2AT type twisted pair with foil shield and drain wire), two 75 Ω video coax channels (Canare L-3C2V, featuring a Solid Center Conductor), and 4 insulated “intercom / remote control tally lines” to trigger camera, VCR, or other switching functions. - 2 audio and 4 Control Combo lines, and 2 video channels
- Used for linking audio video equipment and as extensions for video cameras
- Designed for fixed installation
- Stays flexible even in sub-zero weather
- Special fillers prohibit cable component twisting
- Use with Canare 75 Ω BNC, F, or RCA crimp plugs
- Used for the following applications: OB vans, ENG / EFP signals, Audio/Video Combo Snakes, and home theaters
In the Box Canare Audio & Video Composite Cable (328' / 100 m) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare Audio & Video Composite Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare A2V2-L 100M Specs | Outer Diameter | Nominal Audio: 0.433" (11 mm)
Channel: 0.126" (3.2 mm)
Nominal Video: 0.173" (4.4 mm)
Control Line: 0.051" (1.3 mm) | | Bundled Cable Type | Audio: 2 x Twisted Pair 2B2-AT
Video: 2 x Coax 3C-2V
Control Line: 4 x 0.2 mm² | | Conductor Strand | Audio: 16/0.12 quantity/mm
#25 (AWG)
Video: 1/0.5 quantity/mm
#24 (AWG)
Control Line: 18/0.12 quantity/mm
#24 (AWG) Effective AWG of combined twin conductors | | Material | Audio Insulation Type: IPE, orange, & white color code
Video: PE, color code
Control Line: PE, red, yellow, blue, and white color code | | Channel Jacket | Audio: PVC, Grey / red & blue color code
Video: PVC, black & yellow color code | | Shield Coverage | Audio: AL Foil 100% + TC Drain Wire (22AWG)
Video: 97% or more (braid) | | Impedance | 75 Ω | | Attenuation | 4.1 dB per 100 m at 10 MHz | | Dielectric Strength | 500 VAC / 1 minute | | Twist Pitch | Audio: 0.99" (25 mm) | | Conductor D.C.R. | Audio: At 1000' <31.9
At 100 m: <10.5
Video: At 1000': <28.4
At 100 m: <9.3 | | Shield D.C.R | Video: At 1000': <3.7
At 100 m: <1.2 | | Nominal Capacitance | Audio: 23' pF (73 pF / m) capacitance between conductors
37' pF (120 pF / m) capacitance between conductor and shield | | Length | 328' (100 m) | | Weight | 35 lb (16 kg) | | | | Package Weight | 49.85 lb | | Box Dimensions (LxWxH) | 25.0 x 14.0 x 14.0" |
