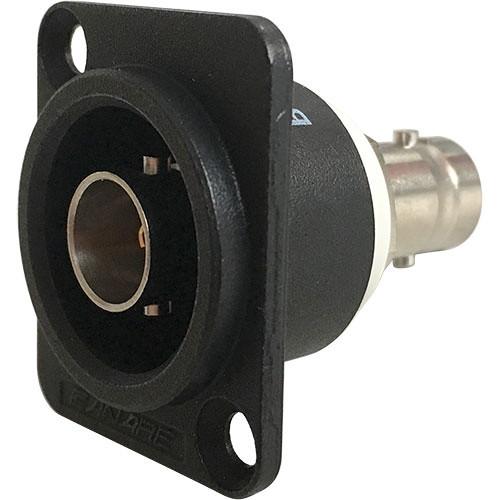

Product description Designed specifically for 12G-SDI / 4K applications, the black Canare BCJ-JRUDBK is a 75-Ohm BNC female to BNC female flush-mount receptacle designed to provide feed-trough patching connectivity for technicians and system integrators in broadcast, television, video, and audio studios. Note: Use Canare CANBET12 extraction tool to insert and extract all Canare BNC crimp plugs from recessed or standoff BNC receptacles and DVJ digital video jacks - Key Features
-
- 75-Ohm impedance
- Minimal return loss of 15 dB at 12 GHz
- Ideal for use in 12G-SDI video installations
- Neutrik D-Series black flange
- Beryllium/copper is used on center contact for superior spring characteristics
- Gold-plated finish on center contact
- Applications
-
- Compliant with SMPTE, HD-SDI ST292, 3G-SDI ST424, 6G-SDI ST2081-1, 12G-SDI ST2082-1
- UHD/SDI, HD/SDI digital video
- UHD upgrades
- NTSC analog
- Test equipment
- Satellite headends
- Remote applications
In the Box Canare BCJ-JRUDBK 75-Ohm Panel Flush-Mount BNC Female to BNC Female Receptacle for 12G -SDI (Black) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare BCJ-JRUDBK 75-Ohm Panel Flush-Mount BNC Female to BNC Female Receptacle for 12G -SDI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare BCJ-JRUDBK Specs | Connector Type | BNC female to BNC female | | Impedance | 75 Ohms | | Rating | 12G-SDI | | Return Loss | 26 dB at 3 GHz
20 dB at 6 GHz
15 dB at 12 GHz | | Material | Center Contact: Beryllium / copper (gold-plated) | | Plate Type | Neutrik D-Series flange (black) | | Dimensions | Plate: 1.2 x 1.0" / 31.0 x 26.0 mm
Receptacle Diameter: 0.9" / 23.6 mm | | | | Package Weight | 0.04 lb | | Box Dimensions (LxWxH) | 1.4 x 1.3 x 1.3" |
