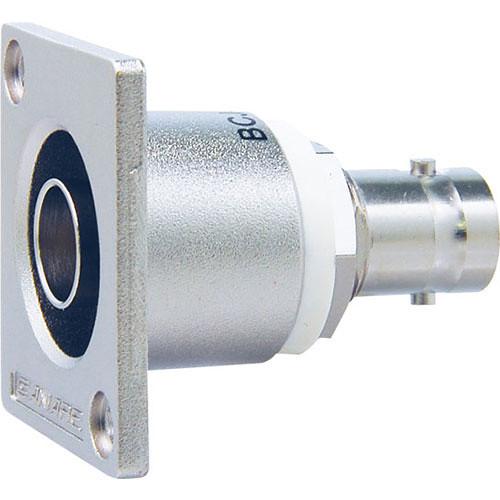

Product description The Canare BCJ-JRUK is a BNC to BNC flush-mount receptacle designed to provide jack-to-jack patching connectivity for technicians and system integrators in broadcast, television, video, and audio studios. Its 75 Ohms impedance and minimal return loss of 15 dB at 12 GHz makes it ideal for use in 12G-SDI video installations. The flush-mount design requires no soldering for installation or cable connections. The receptacle utilizes an ITT XLR-F77 flange. - Minimized return loss (15 dB at 12 GHz, 26 dB at 3 GHz)
- Compliant with SMPTE ST 2082-1:2015
- Used for applications such as multimedia edit suites, master control rooms, satellite, telecom, and broadband
In the Box Canare BCJ-JRUK BNC to BNC Flush-Mount Receptacle for 12G-SDI Installations Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare BCJ-JRUK BNC to BNC Flush-Mount Receptacle for 12G-SDI Installations in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare BCJ-JRUK Specs | Connector Type | BNC female | | Impedance | 75 Ohms | | Bandwidth | VSWR Return Loss DC (2 GHz): <1.1, >26 dB | | Return Loss | 15 dB at 12 GHz
26 dB at 3 GHz | | Plating | Center Contact: Beryllium copper/gold
Body: Brass/nickel | | Plate Type | ITT XLR-F77 flange | | Dielectric | PTFE | | Insulation Resistance | >1000 MOhms at 500 VDC | | Voltage Rating | 1500 VAC (RMS) for 1 minute | | Contact Resistance | Center: <6 mohms
Outer: <3 mOhms | | Compliance | SMPTE ST 2082-1:2015 | | Dimensions | Plate Hole (W x H): 0.8" / 21 mm diameter, 0.7 x 0.9" / 18 x 23 mm screw holes, 1.0 x 1.2" / 25 x 30 mm flange
Receptacle (D x H): 1.3 x 0.8" / 33.8 x 19.4 mm | | | | Package Weight | 0.04 lb | | Box Dimensions (LxWxH) | 1.6 x 1.2 x 1.2" |
