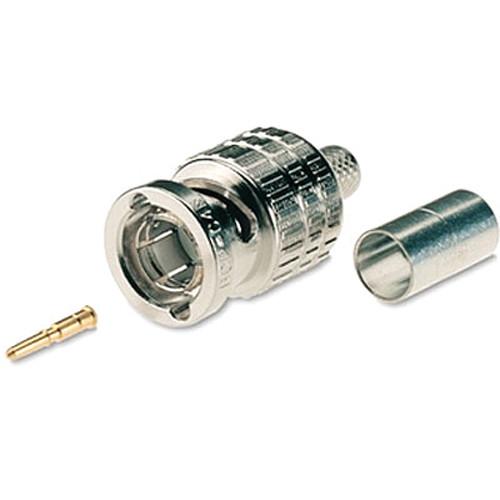

Product description The Canare BCP-VA3 BNC Crimp Plug is a BCP connector widely used in a number of analog to digital converters supporting different types of video formats. This crimp plug belongs to the BCP-V (Straight type) series and includes the B11014E center pin, BN7052A sleeve, and TCD-35CA die set. - Ideal for the following applications: SDI (Serial Digital Video), HDTV upgrades (DTV), NTSC analog system, test equipment, satellite headends, and telcom
- SMPTE 259M and 292M compliant
- Mechanically mates with common 50 Ω BNC connector
- Elongated body for better finger grip
- Superior cable pull strength
- Gold-plated contact pin snap locks into place
- Good transmission quality
- Position mark on body allows the connector fit to be checked easily
- Use of crimping to attach the connector ensures quick, reliable installation
- Lock mechanism used on insulation improves reliability by preventing shifting or detaching of the contact pin
In the Box Canare BCP-VA3 BNC Crimp Plug 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare BCP-VA3 BNC Crimp Plug in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare BCP-VA3 Specs | Type | DC to 2 GHz; ≥26 dB Return Loss (≤1.1 VSWR) | | Return Loss | ≥26 dB (≤1.1 VSWR) | | Compatible With | V-3C cable | | Dielectric Insulation Type | PTFE | | Contact Resistance | Centre: <6 mΩ
Outer: <3 mΩ | | Impedance | 75 Ω | | Plating | Body: Brass Nickel
Center Contact: Brass Nickel
Crimp Sleeve: Copper Tin | | | | Package Weight | 0.01 lb | | Box Dimensions (LxWxH) | 5.0 x 3.3 x 0.5" |
