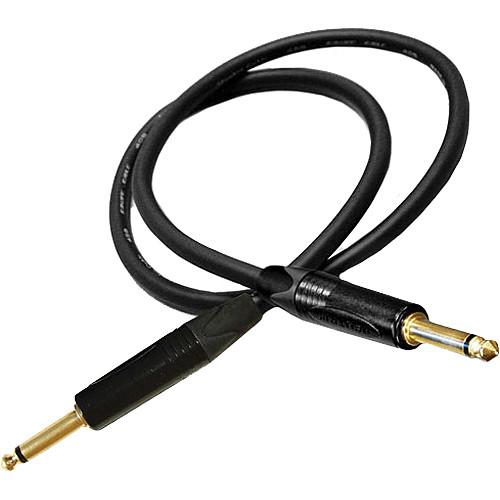

Product description The 35' GS-6 Guitar Cable from Canare is an unbalanced cable with Neutrik Black & Gold straight 1/4" TS plugs. The combination of this cable's thick yet flexible 127-strand conductor and its polyethylene dielectric and dual shields result in very low capacitance and wide frequency response. This cable is suitable for use with both guitar and bass. It can also be used for keyboards to amps, mixers, effects pedals and outboard signal processing gear. - Oxygen-free copper conductor and shield for flexibility and expanded frequency response
- Low capacitance and resistance
- Hand assembly with true silver solder
In the Box Canare GS-6 Guitar Cable with Neutrik Black & Gold 1/4" TS Plugs (35') Limited 30-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare GS-6 Guitar Cable with Neutrik Black & Gold 1 4" TS Plugs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare GS-6 Specs | Conductor Gauge | 18 AWG | | Connector 1 | 1 x Neutrik Black & Gold straight 1/4" TS plug | | Connector 2 | 1 x Neutrik Black & Gold straight 1/4" TS plug | | Conductor | 127 strands of Oxygen Free Copper | | Shield | > 92% OFC high-density braid and special proprietary polyvinyl carbon sheath | | Resistance | Channel DC Resistance: < 5.6 Ω / 1000' (305 m)
Shield DC Resistance: < 7.6 Ω / 1000' (305 m) | | Nominal Capacitance | 49.0 pF/ft @ 1 kHz | | Length | 35' (10.7 m) | | Weight | 2 lb (0.9 kg) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 8.5 x 6.4 x 1.2" |
