User Manual for Canare GS-6 Guitar Cable with Neutrik Silent Right Angle Plug Click to enlarge the picture
Contents of the user manual for the Canare GS-6 Guitar Cable with Neutrik
- Product category: Guitar Cables Canare
- Brand: Canare
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canare Guitar Cables
|
User manual for the Canare GS-6 Guitar Cable with Neutrik contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canare product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canare user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canare product will considerably shorten its lifespan!
|

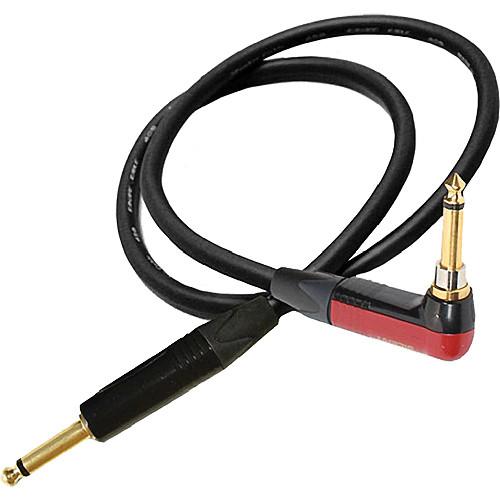

Product description The 35' GS-6 Guitar Cable from Canare is an unbalanced cable with a Neutrik Silent right angle 1/4" TS plug and a straight Black & Gold plug. The combination of this cable's thick yet flexible 127-strand conductor and its polyethylene dielectric and dual shields result in very low capacitance and wide frequency response. This cable is suitable for use with both guitar and bass. It can also be used for keyboards to amps, mixers, effects pedals and outboard signal processing gear.
The Neutrik Silent right angle TS plug phone connector automatically mutes (shorts) an instrument cable to avoid pops and squeals when changing the instrument under load. The integrated gold-contact reed switch is activated by a spring-loaded magnetic sleeve that un-shorts the contacts only when the jack is fully mated. The switch is hermetically sealed. Note: Always connect the Silent plug end of the cable into your guitar or instrument AFTER connecting the other end of the cable to the amp, to reduce the chance of amp damage or noisy feedback. - Oxygen-free copper conductor and shield for flexibility and expanded frequency response
- Reduced microphone handling noise
- Low capacitance and resistance
- Hand assembly with true silver solder
- Gold-contact reed switch is rated for at least 10,000 mating cycles
In the Box Canare GS-6 Guitar Cable with Neutrik Silent Right Angle Plug (35') Limited 30-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare GS-6 Guitar Cable with Neutrik Silent Right Angle Plug in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare GS-6 Specs | Conductor Gauge | 18 AWG | | Connector 1 | 1 x Neutrik Silent right angle 1/4" TS plug (with integrated gold-contact reed switch) | | Connector 2 | 1 x Neutrik Black & Gold straight 1/4" TS plug | | Shield | > 92% OFC high-density braid and special proprietary polyvinyl carbon sheath | | Resistance | Channel DC Resistance: < 5.6 Ω / 1000' (305 m)
Shield DC Resistance: < 7.6 Ω / 1000' (305 m) | | Nominal Capacitance | 49.0 pF/ft @ 1 kHz | | Length | 35' (10.7 m) | | Weight | 2 lb (0.9 kg) |
