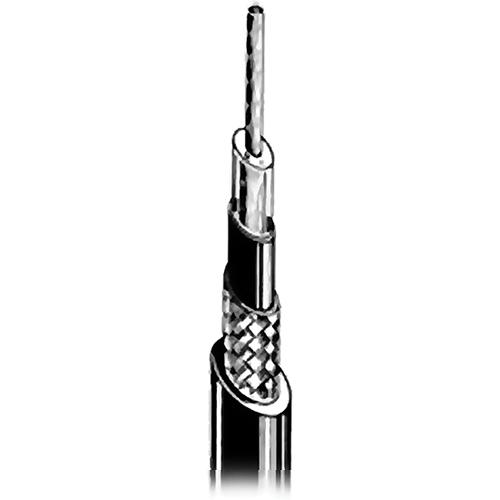

User Manual for Canare GS-6 OFC Instrument Cable Click to enlarge the picture
Contents of the user manual for the Canare GS-6 OFC Instrument Cable
- Product category: Bulk Audio Cable Canare
- Brand: Canare
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canare Bulk Audio Cable
|
User manual for the Canare GS-6 OFC Instrument Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canare product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canare user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canare product will considerably shorten its lifespan!
|
Product description The Canare GS-6 OFC Instrument Cable (200 m / 656.17') is a specially designed oxygen-free copper 18 AWG cable use for connecting guitar/bass or keyboards to amps, mixers, effects pedals, and all outboard signal processing gear. Low capacitance and low series resistance provides improved frequency response (flat to 50 KHz). A bright, ringing characteristic sound is preserved, even when using Hi-Z guitar pickups with long cable runs. The proprietary double carbon/braid copper shield construction eliminates microphonic handling noise, especially on stage where amps are often set at maximum volume levels. It is also recommended for Amp head to speaker cabinet leads. - Ideal for electronic instruments, Hi-Fi interconnects, test probes, audio patch cords, and amp to cabinet leads
- Centre conductor with 50 fine Ø0.1mm strands increases durability
- Outer conductor of fine Ø0.1mm OFC strands provides flexible braided configuration
- Double carbon / braid copper shield construction eliminates microphonic handling noise
In the Box Canare GS-6 OFC Instrument Cable (200 m / 656.17') 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare GS-6 OFC Instrument Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare GS-6 200M Specs | Compatible With | Cable: RCAP-C3GS
Center Pin: BN1093
Sleeve: BN7079
Boot: CB25
Die Set: TCD-35D | | Material | Jacket: PVC
Insulation: Polyethylene | | Conductor | Inner Conductor:
AWG: 22 (50/0.1 quantity/mm)
Cross Section Area: 0.39 mm²
Outer Conductor:
Shield Construction and Coverage (92% or more): Carbon plastic shield +0.1 mm (OFC) / 8 ends / 16 carriers | | Outer Diameter | Inner Conductor: 0.05" (1.3 mm), nominal
Insulation: 0.12" (3 mm), nominal | | Thickness | PVC Jacket: 0.04" (1 mm)
Insulation: 1.32" (33.5 mm) (PE) | | Conductor DCR | <5.6 Ω / 1000' (<1.8 Ω / 100 m) | | Shield DCR | <7.6 Ω / 1000' (<2.5 Ω / 100 m) | | Nominal Capacitance | 49 pF/ft (160 pF/m) capacitance between conductors and shield | | Number of Conductors | 1 | | Shield Coverage | OFC > 92% braid+carbon sleeve | | Dielectric Strength | 500 VAC / min | | Brittle Point | -56°F (-49°C) | | Diameter | Center Conductor Strand (50x): 0.003" (0.1 mm)
Outer Conductor Strand: 0.1 mm (OFC) | | Diameter | Outer Nominal Diameter: 0.23" (5.8 mm) | | Length | 200 m(656.17') | | Weight | Not specified by manufacturer | | | | Package Weight | 23.3 lb | | Box Dimensions (LxWxH) | 11.6 x 11.2 x 8.9" |
