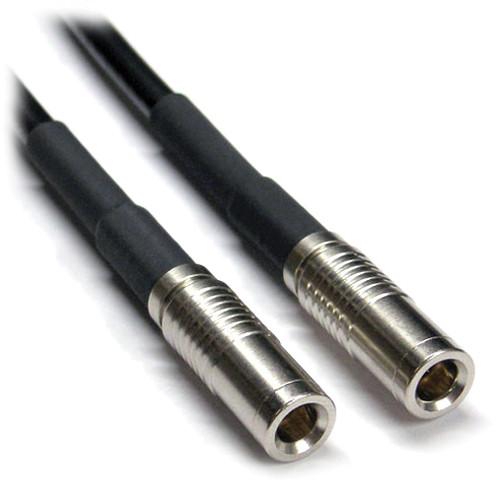

User Manual for Canare L-2.5CHD 3G HD SDI Cable with 1.0 2.3 DIN to 1.0 2.3 DIN Connectors Click to enlarge the picture
Contents of the user manual for the Canare L-2.5CHD 3G HD SDI Cable
- Product category: DIN Cables Canare
- Brand: Canare
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canare DIN Cables
|
User manual for the Canare L-2.5CHD 3G HD SDI Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canare product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canare user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canare product will considerably shorten its lifespan!
|
Product description The Canare L-2.5CHD 3G HD/SDI Cable with 1.0/2.3 DIN to 1.0/2.3 DIN Connectors (1') offers the professional broadcaster a high-performance, 100% sweep tested, cost-effective, and low-loss coax that meets the demands of today's facility migration trends toward Serial Digital Video and HDTV standards. It is designed for equipment or video distribution gear having HD/SDI 1.0/2.3 DIN ports. - Highly-foamed PE insulation allows further improvement in the attenuation characteristics
- Multi-layer insulation where each layer is given a different foaming ratio that helps increase strength
- Tinned copper braid with aluminum foil ensures excellent shielding
- Ideal for internal rack wiring
- Passes UL 1666 riser flame test
- Suitable for HD-Serial Digital Video, satellite head ends, HDTV upgrade, broadband facilities, and SMPTE 259M, 292M, 424M signal format applications
- Suitable for use with equipment with 1.0/2.3 DIN 3G HD/SDI inputs and outputs like the Black Magic and Red One products
In the Box Canare L-2.5CHD 3G HD/SDI Cable with 1.0/2.3 DIN to 1.0/2.3 DIN Connectors (1') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare L-2.5CHD 3G HD SDI Cable with 1.0 2.3 DIN to 1.0 2.3 DIN Connectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare CAL2.5CHDD1 Specs | Connector Type | 1.0/2.3 DIN to 1.0/2.3 DIN Connectors | | Length | 1' (0.3 m) | | Impedance | 75 ± 3 ohms | | Composition | Inner Conductor: 1/0.59 A quantity/mm, 23 AWG | | Shield Coverage | Outer Conductors 95% or more: 0.12TA mm, 7 ends, 16 carriers | | Conductor Resistance | Inner: 39.95 ohms/mile (64.3 ohms/km)
Outer: 10.5 ohms/mile (16.9 ohms/km) | | Static Capacity | 53 nf/km @ 1 kHz | | Attenuation | 30.2 dB / 328 ft (100 m) at 750 MHz | | Cable O.D. | Nominal: 0.16" (4.2 mm)
Insulation: 0.1" (2.59 mm)
Inner Conductor: 0.02" (0.59 mm) | | Maximum Transmission Distance | 1,030.18 ft (314 m) at 143 Mbps (SMPTE 259M, Composite NTSC)
941.6 ft (287 m) at 177 Mbps (ITU-R BT. 601, Composite PAL)
777.56 ft (237 m) at 270 Mbps (SMPTE 259M, Component 4:2:2)
675.85 ft (206 m) at 360 Mbps (SMPTE 259M, Component 4:2:2, 16x9)
551.18 ft (168 m) at 540 Mbps (SMPTE 344M, SDI)
216.53 ft (66 m) at 1.5 Gbps (SMPTE 292M, HD-SDI)
150.92 ft (46 m) at 3 Gbps (SMPTE 424M, HD 1080p) | | Nominal Attenuation | 4.1 dB / 328 ft (100 m) at 10 MHz
6.5 dB / 328 ft (100 m) at 30 MHz
9.5 dB / 328 ft (100 m) at 72.0 MHz (SMPTE 259M, Composite NTSC)
10.4 dB / 328 ft (100 m) at 88.0 MHz (ITU-R BT. 601, Composite PAL)
12.6 dB / 328 ft (100 m) at 135 MHz (SMPTE 259M, Component 4:2:2)
14.5 dB / 328 ft (100 m) at 180 MHz (SMPTE 259M, Component 4:2:2 16x9)
17.8 dB / 328 ft (100 m) at 270 MHz (SMPTE 344M, 540 Mbps SDI)
22.9 dB / 328 ft (100 m) at 440 MHz
30.2 dB / 328 ft (100 m) at 750 MHz (SMPTE 292M, HD-SDI)
40 dB / 328 ft (100 m) at 1.3 GHz
43.1 dB / 328 ft (100 m) at 1.5 GHz (SMPTE 424M, HD 1080p)
55.1 dB / 328 ft (100 m) at 2.4 GHz
62 dB / 328 ft (100 m) at 3 GHz | | Weight | Not specified by the manufacturer | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 6.0 x 5.0 x 0.1" |
