User Manual for Canare L-3CFB 3G HD SDI Cable with 1.0 2.3 DIN to 1.0 2.3 DIN Connectors Click to enlarge the picture
Contents of the user manual for the Canare L-3CFB 3G HD SDI Cable
- Product category: DIN Cables Canare
- Brand: Canare
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canare DIN Cables
|
User manual for the Canare L-3CFB 3G HD SDI Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canare product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canare user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canare product will considerably shorten its lifespan!
|

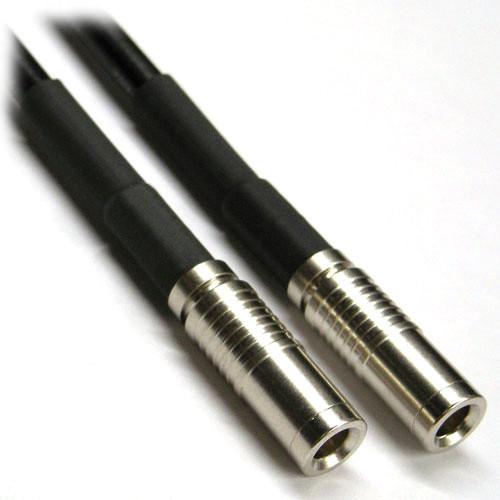

Product description The Canare L-3CFB 3G HD/SDI Cable with 1.0/2.3 DIN to 1.0/2.3 DIN Connectors (25') is a 75Ω precision digital video cable, which offers high performance to a professional broadcaster. This coaxial din cable is 100% sweep tested, and with low loss coax, it meets the demands of today's facility migration trends toward serial digital video and HDTV standards. It is designed for connecting equipment or video distribution gear having HD/SDI 1.0/2.3 DIN ports. - Used for the following applications: HD Serial Digital Video, satellite head ends, HDTV upgrade, broadband facilities, and SMPTE 259M, 292M, 424M
- Solid copper center conductor
- Dielectric strips away clean from conductor
- Suitable for use with equipment with 1.0/2.3 DIN 3G HD/SDI inputs and outputs like the Black Magic and Red One products.
In the Box Canare L-3CFB 3G HD/SDI Cable with 1.0/2.3 DIN to 1.0/2.3 DIN Connectors (25') 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare L-3CFB 3G HD SDI Cable with 1.0 2.3 DIN to 1.0 2.3 DIN Connectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare CAL3CFBD25 Specs | Outer Diameter | Nominal: 0.217" (5.5 mm)
Insulation: 0.122" (3.1 mm)
Conductor: 0.026" (0.65 mm) | | Thickness | PVC Jacket: 0.035" (0.9 mm) | | Brittle Point | -22°F (-30°C) | | Conductor Material | 22 AWG
Material: Bare copper | | Dielectric Insulation Type | Foam PE | | Shield Material Coverage | AL Foil 100%
TAC Braid >91% | | Conductor D.C.R. | <16.8 Ω/1000' (<5.5 Ω/100 m) | | Shield D.C.R | <4.3 Ω/1000' (<1.4 Ω/100 m) | | Nominal Capacitance @ 1 KHz | 17 pF/ft (55 pF/m) | | Impedance | 75 Ω | | Velocity of Propagation | 79% | | Nominal Attenuation | @ 10 MHz dB 1.0 (3.2)
@ 50 MHz dB 2.5 (8.0)
@ 135 MHz dB 3.7 (12.3
@ 270 MHz dB 5.2 (17.2
@ 360 MHz dB 6.1 (20.0
@ 720 MHz dB 8.9 (29.1
@ 1 GHz dB 10.6 (34.7)
@ 1.45 GHz dB 13.0 (42.6)
@ 1.8 GHz dB 14.7 (48.3)
@ 2 GHz dB 15.6 (51.2) | | Length | 25' (7.62 m) | | Weight | Not specified by manufacturer | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 6.4 x 5.8 x 1.6" |
