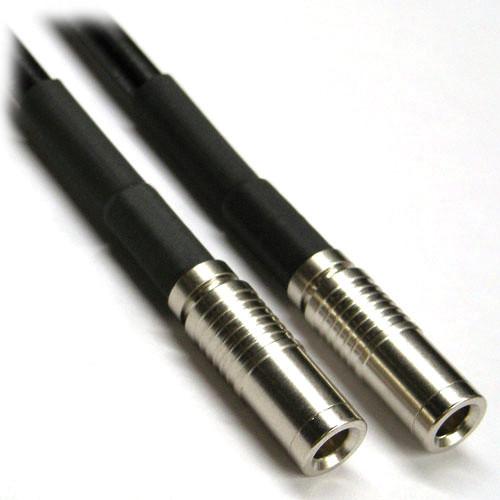

Product description The Canare L-3CFB 3G HD/SDI Cable with 1.0/2.3 DIN to 1.0/2.3 DIN Connectors (10') is a 75Ω precision digital video cable, which offers high performance to a professional broadcaster. This coaxial din cable is 100% sweep tested, and with low loss coax, it meets the demands of today's facility migration trends toward serial digital video and HDTV standards. It is designed for connecting equipment or video distribution gear having HD/SDI 1.0/2.3 DIN ports. - Used for the following applications: HD Serial Digital Video, satellite head ends, HDTV upgrade, broadband facilities, and SMPTE 259M, 292M, 424M
- Solid copper center conductor
- Dielectric strips away clean from conductor
- Suitable for use with equipment with 1.0/2.3 DIN 3G HD/SDI inputs and outputs like the Black Magic and Red One products.
In the Box Canare L-3CFB 3G HD/SDI Cable with 1.0/2.3 DIN to 1.0/2.3 DIN Connectors (10') 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare L-3CFB 3G HD SDI Cable with 1.0 2.3 DIN to 1.0 2.3 DIN Connectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare CAL3CFBD10 Specs | Outer Diameter | Nominal: 0.217" (5.5 mm)
Insulation: 0.122" (3.1 mm)
Conductor: 0.026" (0.65 mm) | | Thickness | PVC Jacket: 0.035" (0.9 mm) | | Brittle Point | -22°F (-30°C) | | Conductor Material | 22 AWG
Material: Bare copper | | Dielectric Insulation Type | Foam PE | | Shield Material Coverage | AL Foil 100%
TAC Braid >91% | | Conductor D.C.R. | <16.8 Ω/1000' (<5.5 Ω/100 m) | | Shield D.C.R | <4.3 Ω/1000' (<1.4 Ω/100 m) | | Nominal Capacitance @ 1 KHz | 17 pF/ft (55 pF/m) | | Impedance | 75 Ω | | Velocity of Propagation | 79% | | Nominal Attenuation | @ 10 MHz dB 1.0 (3.2)
@ 50 MHz dB 2.5 (8.0)
@ 135 MHz dB 3.7 (12.3
@ 270 MHz dB 5.2 (17.2
@ 360 MHz dB 6.1 (20.0
@ 720 MHz dB 8.9 (29.1
@ 1 GHz dB 10.6 (34.7)
@ 1.45 GHz dB 13.0 (42.6)
@ 1.8 GHz dB 14.7 (48.3)
@ 2 GHz dB 15.6 (51.2) | | Length | 10' (3.04 m) | | Weight | Not specified by manufacturer |
