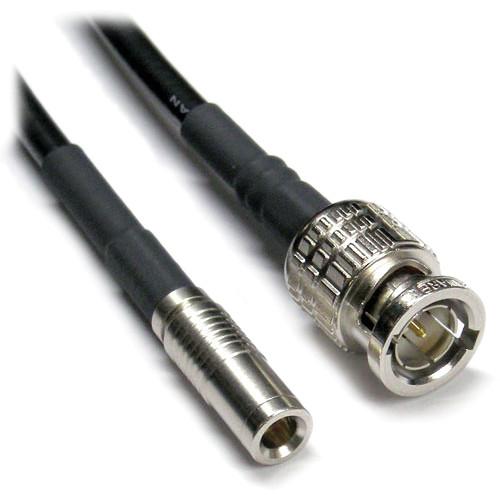

Product description The Canare (L-3CFB 3G HD/SDI Cable with 1.0/2.3 DIN to BNC Male Connectors (3', Black) features a solid copper center conductor, foamed PE insulation, and tinned copper braid with an aluminum foil shield. This coaxial cable is 100% sweep tested, and with low loss coax, this cable meets the required digital video and HDTV standards for better performance required by professional broadcasters. It is designed for connecting equipment or video distribution gear having standard size BNC input. - Used for the following applications: HD-Serial Digital Video, satellite head ends, HDTV upgrade, broadband facilities, and SMPTE 292M
- Solid copper center conductor
- Tinned copper braid with aluminum foil shield
- Dielectric strips away clean from conductor
- DIN 1.0/2.3 crimp connector can be used with the L-3CFB coaxial cable
- Suitable for use with equipment with 1.0/2.3 DIN 3G HD/SDI inputs and outputs like the Black Magic and Red One products
In the Box Canare L-3CFB 3G HD/SDI Cable with 1.0/2.3 DIN to BNC Male Connectors (3', Black) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare L-3CFB 3G HD SDI Cable with 1.0 2.3 DIN to BNC Male Connectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare CAL3CFBB3 Specs | Material | Jacket: PVC
Insulation: Foam PE
Shield: Tinned copper braid with aluminum foil | | Attenuation | 3.7 dB/100 m (10 MHz) | | Standard | SMPTE 292M | | Video Format | HD-SDI | | Bit Rate | 1.5 Gbps | | Conductor Resistance | Inner: 5.5 Ω/km
Outer: 1.4 Ω/km | | Impedance | Characteristic: 75±3 Ω | | Static Capacity | 55 pF/m | | Outer Diameter | Nominal: 0.22" (5.5 mm)
Inner Conductor: 0.03" (0.65 mm)
Insulation: 0.12" (3.1 mm) | | Conductor | Inner Conductor
Composition: 22 AWG (1/0.65A mm quantity/mm)
Outer Conductor
Composition: 0.14TA mm
6 ends
16 carriers | | Shield Coverage | ≥91% | | Dielectric Strength | 1,000 VAC/min | | Length | 3' (0.9 m) | | Weight | Not specified by the manufacturer | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 5.6 x 5.5 x 0.4" |
