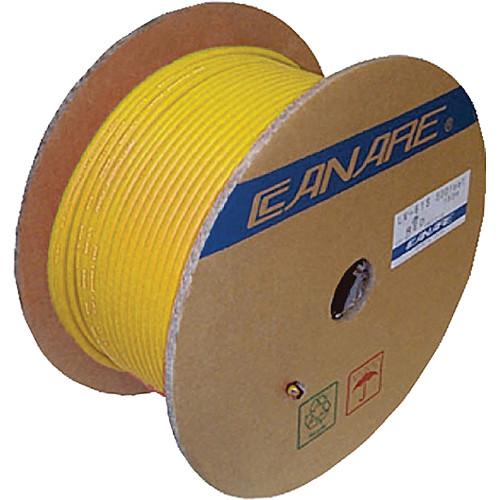

Product description The yellow L-4CFB RG59 HD-SDI Coaxial Cable - 984' from Canare is a 20 AWG RG59 type digital video cable roll. The cable is designed for use with SD/HD-SDI applications, satellite head-ends, or any other work in broadband, digital, and HDTV facilities. The cable is rated at 75Ω impedance and features low signal loss. It also includes a solid copper center conductor, a tinned copper-braided shield, and foam polyethylene dielectric. - Solid copper center conductor
- Tinned copper braid + 100% foil shield
- Precision coax 100% sweep tested
- Compatible with: SMPTE 259M, 292M, 424M
In the Box Canare L-4CFB RG59 HD-SDI Coaxial Cable - 984' (Yellow) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare L-4CFB RG59 HD-SDI Coaxial Cable - 984' in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare L-4CFB 300M YELLOW Specs | Cable Type | Coaxial | | Nominal Impedance | 75 Ω | | Conductor | 20 AWG | | Attenuation | @ 10 MHz: 2.9 dB per 328' | | Dielectric Insulation Type | Material: Foam PE
Strength: 1000 VAC / min | | Outer Diameter | Nominal: .035" (0.9 mm)
Conductor: .032" (0.8 mm)
Insulation: .146" (3.7 mm) | | Nominal Capacitance | 55 pF/m @ 1KHz | | Shield Material Coverage | Al foil 100%
TAC braid >93% | | Color | Yellow | | Length | 984' (300 m) | | Weight | 32.4 lb (14.7 kg) | | | | Package Weight | 35.5 lb | | Box Dimensions (LxWxH) | 14.646 x 14.331 x 7.559" |
