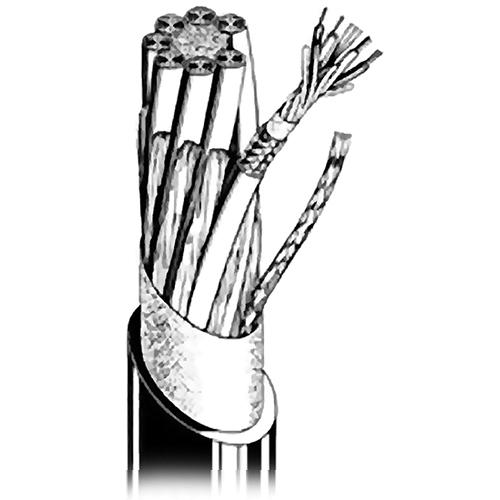

User Manual for Canare L-4E3-4P 100M 4-Channel Star Quad Microphone Cable Click to enlarge the picture
Contents of the user manual for the Canare L-4E3-4P 100M 4-Channel Star Quad
- Product category: Bulk Audio Cable Canare
- Brand: Canare
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canare Bulk Audio Cable
|
User manual for the Canare L-4E3-4P 100M 4-Channel Star Quad contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canare product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canare user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canare product will considerably shorten its lifespan!
|
Product description The Canare L-4E3-4P 100M 4-Channel Star Quad Microphone Cable (328' / 100 m) is a 25 AWG Star Quad snake cable with braided shields. Each channel is completely isolated and consists of 4 conductors surrounded by an overall braided shield encased in a color coded striped PVC jacket. The 4-conductor style construction minimizes the loop area between twists of the conductors. This double balanced pairing reduces susceptibility to electromagnetically induced noise.
Fine conductor stranding for flexibility facilitates roll up and easy payout. Large numbers of thin wire strands are used in the copper conductors and overall braided shield. A special compound PVC outer jacket is extruded that remains pliant at extremely low temperatures with no wait between cold shipping and installation. The 4-conductor design provides superior EMI and RFI noise rejection in problem areas on the stage.
This Star Quad cable is designed for use with microphones but is also excellent for all line-level signals (e.g. mixer to power amps). The 4-conductor arrangement cancels electromagnetically induced noise from SCR dimmer packs, fluorescent lighting ballasts, and AC power transformers. Handling noise is prevented by use of cotton filler material. Good frequency response is maintained due to special irradiated polyethylene insulation which acts as a low capacitance dielectric
Good crosstalk characteristics allow different signals (-120 dB mic, 4 dB line, 10 dB code levels) to be used in adjacent channels. Note: All Canare DT12 Snake assemblies are built using our road-worthy and flexible L-4E3-12P cable. - Filler
- The filler in the cable prevents stretching and twisting of the inner conductors which can cause noise
- Conductors
- Utilizes high-conductivity, annealed copper wires, stranded to form flexible conductors and shields
- Jacket
- The PVC outer jacket is tough, strong, and durable with good flexibility. These qualities are retained even at very low temperatures, reducing the chance of the cable stiffening or cracking.
- Insulation
- On irradiation, the polymer insulation becomes extensively cross-linked, chemically inert, water resistant, and remains flexible at very low temperatures. Irradiated PE is heat resistant, and the insulation is less likely to shrink back, flow, or char when soldering, so you save initial and rework time, and achieve more reliable connections.
- Shield
- Spiral (serve) shields are not used because they can spread apart with use. The cable's shield is made using many thin copper strands in a densely woven braid. It is very flexible and offers appreciable noise rejection 1
Please Note: In order to maximize noise rejection, Star Quad must be properly wired to the XLR-3 connector (or terminal block). Note: The high shield density makes it is somewhat difficult to push back the braid and pull the inner conductors through. Instead, we strongly recommend unbraiding the shield by combing it out with a pointed tool, beginning at the end of the cable. close - Application
- Ideal for multiple audio lines, portable applications, audio rack wiring, & PA systems
In the Box Canare L-4E3-4P 100M 4-Channel Star Quad Microphone Cable (328' / 100 m) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare L-4E3-4P 100M 4-Channel Star Quad Microphone Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare L-4E3-4P 100M Specs | No. of Channels | 4 (pairs) | | Outer Diameter | Channel: 0.13" (3.4 mm) | | Dielectric Strength | 500 VAC / min | | Conductor | AWG (AC): 28 (7/4.72 quantity/mm)
Quad: 25 AWG
Cross Sectional Area: 124 mm²
Channel Drain Wire (Bundle Drain Wire): 20 AWG Effective AWG of combined twin conductors. | | Pitch Twist Quad | <0.63" (<16 mm) | | Shield Coverage | >93% AC Braid | | Number of Conductors | 16 (4 per channel) | | Nominal | O.D: 0.43" (10.92 mm) | | Material | Jacket: PVC
Insulation: IPE | | Thickness | Nominal: 0.043" (1.1 mm)
Insulation: 0.42” (10.6 mm) Insulation Resistance/3 Mft = >1000M ohm. | | Brittle Point | -22°F (-30°C) | | Conductor D.C.R. | <75.8 ohm/1000' (<24.9 ohm/100 m) | | Shield D.C.R | <10.3 ohm/1000' (<3.4 ohm/100 m) | | Nominal Capacitance | Capacitance between Conductors: 44 pF/ft (145 pF/m)
Capacitance between Conductors to Shield: 52 pF/ft (170 pF/m)
| | Nominal Impedance | 43 ohm | | Nominal Attenuation | 1.8 V/1000' (0.6 V/100 m) | | Group Delay Time | 1.8 ns/ft (5.8 ns/m) | | Input | X-Talk: <3 mv> | | Length | 328' (100 m) | | Weight | 28.6 lb (13 kg) |
