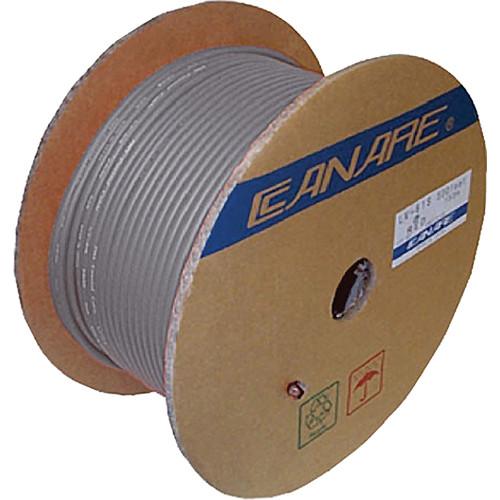

User Manual for Canare L-4E4-12AT Multi-channel Star Quad Microphone Cable Click to enlarge the picture
Contents of the user manual for the Canare L-4E4-12AT Multi-channel Star Quad Microphone
- Product category: Bulk Audio Cable Canare
- Brand: Canare
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canare Bulk Audio Cable
|
User manual for the Canare L-4E4-12AT Multi-channel Star Quad Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canare product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canare user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canare product will considerably shorten its lifespan!
|
Product description A Canare L-4E4-12AT Multi-channel Star Quad Microphone Cable (656"/200 m) is designed for all fixed audio installations. This 22 AWG, 100% foil shielded cable has 4 conductor channels that are isolated from each other and contains Kevlar 29 for tensile pulling strength. The individual foil shield, drain wire, and color coded striped PVC jacket can be easily stripped for quick on-site termination. - Foil shield with drain wire
- Flexible even in cold weather
- Cross linked PE insulation
- Rejects electro-magnet and radio frequency interference
- Multiple channels for high quality transfer
- Dupont Kevlar 29 filler for more strength and tensile pulling strength
In the Box Canare L-4E4-12AT Multi-channel Star Quad Microphone Cable (656"/200 m) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare L-4E4-12AT Multi-channel Star Quad Microphone Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare L-4E4-12AT 200M Specs | Number of Quad Channels | 12 | | Number of Conductors | 48 (4 per channel) | | Outer Diameter | Nominal: 0.748" (18.99 mm)
Channel: 146" (3.7 mm) | | PVC Jacket Thickness | Nominal: 0.059" (1.5 mm) | | Channel Jacket | Type:PVC
Thickness:0.46" (11.8 mm) | | Insulation | Type: IPE
Thickness: 0.49" (12.6 mm) Dielectric Strength: 500 VAC/minute Insulation Resistance: 1000 MΩ per 3' (0.91 m) | | Conductor | AWG (AC): 25 (16 / 4.73 quantity/mm)
Cross Sectional Area: 279 mm2
AWG (Quad): 22 Effective AWG of combined twin conductors | | Pitch Twist Quad | <0.83" ( <21 mm) | | Shield Coverage | Channel: Aluminum foil 100% | | Drain Wire | 23 AWG
BundleDrain Wire: 16 AWG | | Conductor D.C.R. | <32.9 Ω / 1000' (<10.8 Ω/100 m) | | Nominal Capacitance | Between Conductors: 50 pF/feet (164 pF/m)
Between Conductors to Shield: 68 pF/feet (222 pF/m) | | Brittle Point | -22°F (-30°C) | | Length | 656' (200 m) | | Weight | 95 lb (43 kg) |
