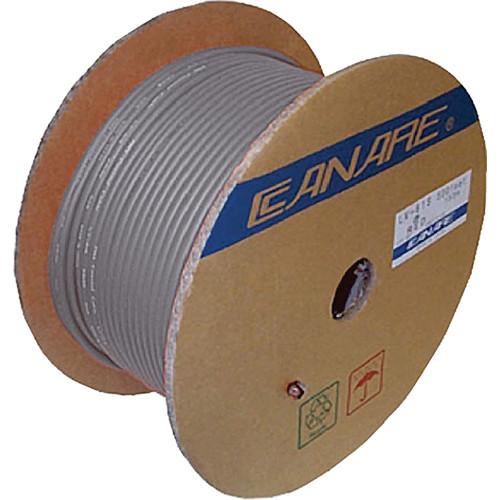

Product description A Canare L-4E4-24AT Multi-channel Star Quad Microphone Cable (328"/100 m) is designed for all fixed audio installations. This 22 AWG, 100% foil shielded cable has 4 conductor channels that are isolated from each other and contains Kevlar 29 for tensile pulling strength. The individual foil shield, drain wire, and color coded striped PVC jacket can be easily stripped for quick on-site termination. - Foil shield with drain wire
- Flexible even in cold weather
- Cross linked PE insulation
- Rejects electro-magnet and radio frequency interference
- Multiple channels for high quality transfer
- Dupont Kevlar 29 filler for more strength and tensile pulling strength
In the Box Canare L-4E4-24AT Multi-channel Star Quad Microphone Cable (328"/100 m) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare L-4E4-24AT Multi-channel Star Quad Microphone Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare L-4E4-24AT 100M Specs | Number of Quad Channels | 24 | | Number of Conductors | 96 (4 per channel) | | Outer Diameter | Nominal: 1.031" (26.18 mm)
Channel: 146" (3.7 mm) | | PVC Jacket Thickness | Nominal: 0.067" (1.7 mm) | | Channel Jacket | Type:PVC
Thickness:0.46" (11.8 mm) | | Insulation | Type: IPE
Thickness: 0.49" (12.6 mm) Dielectric Strength: 500 VAC/minute Insulation Resistance: 1000 MΩ per 3' (0.91 m) | | Conductor | AWG (AC): 25 (16 / 4.73 quantity/mm)
Cross Sectional Area: 279 mm2
AWG (Quad): 22 Effective AWG of combined twin conductors | | Pitch Twist Quad | <0.83" ( <21 mm) | | Shield Coverage | Channel: Aluminum foil 100% | | Drain Wire | 23 AWG
BundleDrain Wire: 16 AWG | | Conductor D.C.R. | <32.9 Ω / 1000' (<10.8 Ω/100 m) | | Nominal Capacitance | Between Conductors: 50 pF/feet (164 pF/m)
Between Conductors to Shield: 68 pF/feet (222 pF/m) | | Brittle Point | -22°F (-30°C) | | Length | 328' (100 m) | | Weight | 152 lb (62 kg) |
