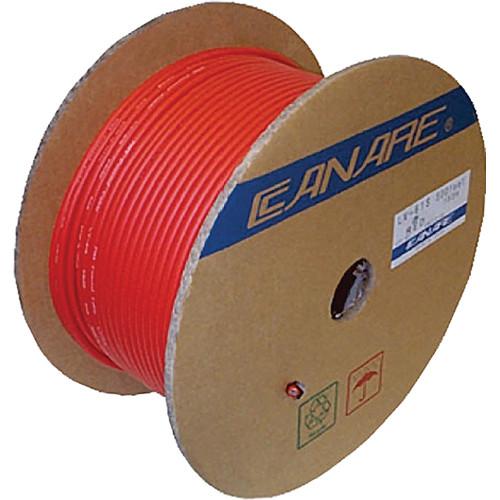

User Manual for Canare L-4E5C Star Quad Microphone Cable Click to enlarge the picture
Contents of the user manual for the Canare L-4E5C Star Quad Microphone Cable
- Product category: Bulk Audio Cable Canare
- Brand: Canare
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canare Bulk Audio Cable
|
User manual for the Canare L-4E5C Star Quad Microphone Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canare product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canare user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canare product will considerably shorten its lifespan!
|
Product description The Canare L-4E5C Star Quad Microphone Cable (656’/200 m, Red) is a narrow profile cable that is designed to save space and reduce weight during remote field expeditions or in confining installations. - Flexible in extremely cold weather
- Cross linked PE insulation
In the Box Canare L-4E5C Star Quad Microphone Cable (656'/200 m, Red) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare L-4E5C Star Quad Microphone Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare L-4E5C 200M RED Specs | Applications | Microphones, portable applications, audio rack wiring, PA systems, and audio patch cords | | Outer Diameter | 0.189" (4.80 mm) nominal | | Nominal Jacket Thickness | Nominal: 0.032" (0.80 mm)
Type: PVC | | Number of Conductors | 4 (2 blue & 2 white) | | Insulation | Type: IPE
Thickness: 0.46" (11.8 mm)
Dielectric Strength: 500 VAC/minute
Insulation Resistance: 1000 MΩ per 3' (0.91 m) | | Conductor | AWG (AC): 26 (30/3.15 quantity/mm)
Cross Sectional Area: 232.5 mm2
AWG (Quad): 23 Effective AWG of combined twin conductors | | Pitch Twist Quad | 0.71" (18 mm) | | Shield Coverage | >96% TAC braid | | Conductor D.C.R. | <39.7 Ω/1000' (<13 Ω> | | Shield D.C.R | <7.6 Ω/1000' (<2.5 Ω/100 m) | | Nominal Capacitance | Between Twin Blue & White Conductors: 50 pF/feet (162 pF/m)
Between Conductors to Shield: 61 pF/feet (200 pF/m) | | Nominal Impedance | 40 Ω | | Nominal Attenuation | 0.9 V/1000' (0.3 V/100 m) | | Group Delay Time | 1.71 ns/1000' (5.6 ns/100 m) | | Brittle Point | -56°F (-49°C) | | Length | 656' (200 m) | | Weight | 18 lb (8 kg) | | | | Package Weight | 16.45 lb | | Box Dimensions (LxWxH) | 11.732 x 11.575 x 6.614" |
