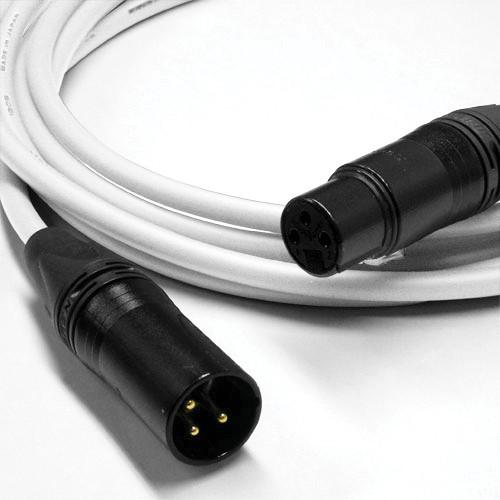

User Manual for Canare L-4E6S Star Quad XLRM to XLRF Microphone Cable - 75' Click to enlarge the picture
Contents of the user manual for the Canare L-4E6S Star Quad XLRM to
- Product category: XLR to XLR Cables Canare
- Brand: Canare
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canare XLR to XLR Cables
|
User manual for the Canare L-4E6S Star Quad XLRM to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canare product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canare user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canare product will considerably shorten its lifespan!
|
Product description The white, 75' L-4E6S Star Quad XLRM to XLRF Microphone Cable from Canare is especially designed for handheld microphone applications in live sound, rehearsals and other situations. In addition to mic-level signals, the cable can also be used to carry line-level signals such as for connecting your mixer to power amps.
The L-4E6S Star Quad cable features a 4-conductor design that is engineered to substantially reduce vulnerability to electromagnetic and radio frequency interference when compared with 2-conductor cables. It uses 21 AWG copper wire which features cross-linked, flexible irradiated polyethylene insulation, which is designed to maintain maximum frequency response and to be more heat resistant than ordinary polyethylene. It also utilizes braided copper shielding which is designed for greater noise rejection and durability than spiral shielding.
The cable also includes cotton filler which is in place to help to cut down handling noise. This can be beneficial in handheld microphone applications in which the cable may be subject to a substantial amount of movement. - Cross-linked PE insulation for flexibility even at low temperatures
In the Box Canare L-4E6S Star Quad XLRM to XLRF Microphone Cable - 75' (White) Limited 1-Year Warranty tceacqsvbveucttduxavsqwbvqwswfdtb Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare L-4E6S Star Quad XLRM to XLRF Microphone Cable - 75' in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare CAXMXF75WT Specs | Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 75' / 22.8 m | | Outer Diameter | 0.23" / 6 mm | | Shielding | 95% Tinned-Annealed Copper (TAC) Braid | | Number of Conductors | 4 | | Wire Gauge | 21 AWG | | Jacket Type | Polyvinyl Chloride (PVC) | | Insulation Type | Polyethylene | | Nominal Impedance | 44 Ohms | | Conductor Capacitance | 46.0 pF/ftkHz | | Nominal Attenuation | 0.0009 V/ft (Up to 1000' / 304.8 m) | | Conductor DC Resistance | 0.0299 Ohms/ft (Up to 1000' / 304.8 m) | | Shield DC Resistance | 0.0091 Ohms/ft (Up to 1000' / 304.8 m) | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 9.4 x 7.3 x 1.7" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 12 owners. Add your rating and experience with the product.
