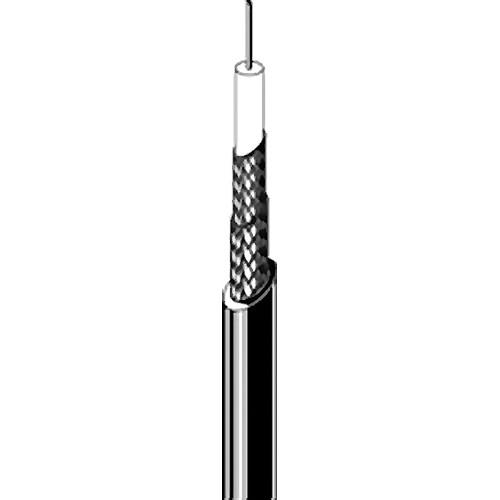

User Manual for Canare L-5CFW 300M Flexible Digital Coaxial Cable Click to enlarge the picture
Contents of the user manual for the Canare L-5CFW 300M Flexible Digital Coaxial
- Product category: Bulk Video Cables Canare
- Brand: Canare
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canare Bulk Video Cables
|
User manual for the Canare L-5CFW 300M Flexible Digital Coaxial contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canare product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canare user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canare product will considerably shorten its lifespan!
|
Product description The Canare L-5CFW 300M Flexible Digital Coaxial Cable (984’) is a precision serial digital video coaxial cable that supports a full range of video formats for professional broadcast applications. This cable is ideal for HD-SDI distribution. - Solid copper center conductor
- Double braided shield enables flexibility and good bending performance
- Foam PE dielectric insulation
- Precision, 100% sweep tested coax
- Ideal for HD-serial digital video, HDTV upgrade, and broadband applications
- Supports SMPTE 259M, 292M, and 424M signals
- Double braided shield enables flexibility and good bending performance
In the Box Canare L-5CFW 300M Flexible Digital Coaxial Cable (984') 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare L-5CFW 300M Flexible Digital Coaxial Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare L-5CFW 300M Specs | Dielectric (Insulation) | Material: Foam PE
Strength: 1000 VAC / min | | Outer Diameter | Nominal: 0.30" (7.7 mm)
Inner Conductor: 0.04" (1.05 mm)
Insulation: 0.19" (4.9 mm) | | Conductor Material | Bare copper #18 (AWG) | | Shield Material Coverage | Inner: 0.12TA mm
7 ends
24 carriers (93% or more)
Outer: 0.12TA mm
9 ends
24 carriers (96% or more) | | Conductor | Composition: 18x AWG
1/0.5A (Quantity / mm) | | Attenuation | At 10 MHz: 2.1 dB per 100 m | | Conductor D.C.R. | 2.3 Ω per 100 m | | Shield D.C.R | 0.5 Ω per 100 m | | Nominal Capacitance | At 1 KHz: 17 pF per ft (55 pF per meter) | | Impedance | 75 Ω | | Length | 984' (300 m) | | Weight | Approximately 61.00 lb (27.67 kg) | | | | Package Weight | 66.5 lb | | Box Dimensions (LxWxH) | 17.2 x 17.1 x 10.9" |
