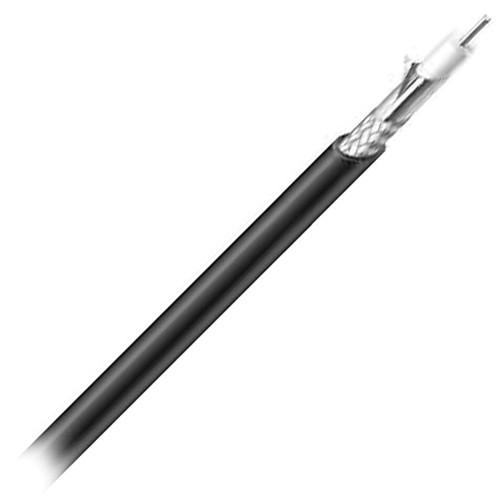

Product description The Canare L-7CHD Super Low Loss Coaxial Cable (656.17' / 200 m, Black) is a precision digital video cable offering the professional broadcaster a high performance, 100% sweep tested, low cost, low loss coax cable that meets the requirements of serial digital video and HDTV standards. - Supports HD-SDI video format via SMPTE 292M
- Multi-layer insulation with each layer having different foaming ratio for increased strength
- Highly-foamed PE insulation for better attenuation characteristics
- Tinned copper braid with aluminum foil provides good shielding
- Ideal for HD serial digital video, satellite headends, HDTV upgrades, broadband facilities
Note:Note 1: Designed for fixed installation, and not fit for mobile use where external force or pressure is unavoidable.
Note 2: Cable strippers (TS100 series) cannot be used. In the Box Canare L-7CHD Super Low Loss Coaxial Cable (656.17' / 200 m, Black) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare L-7CHD Super Low Loss Coaxial Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare L-7CHD 200METER Specs | Material | Jacket: PVC
Insulation: Highly foamed PE | | Attenuation | 10.9 dB/100 m @ 750 MHz | | Conductor Resistance | Inner: ≤7.1 Ω/km
Outer: ≤6.1 Ω/km | | Impedance | Characteristic: 75 ± 3 Ω | | Static Capacity | 50 nF/km @ 1 KHz | | Outer Diameter | Nominal: 0.4" (10.2 mm)
Inner Conductor: 0.071" (1.8 mm)
Insulation: 0.29" (7.3 mm) | | Conductor | Inner Conductor
Composition: 13 AWG (1/1.8A mm quantity/mm)
Outer Conductor
Composition: 0.16TA mm
8 ends
24 carriers | | Shield Coverage | 93% or more | | Dielectric Strength | 1,000 VAC/min | | Length | 656.17' (200 m) | | Weight | 57.32 lb (26 kg) | | | | Package Weight | 58.6 lb | | Box Dimensions (LxWxH) | 20.4 x 20.4 x 7.4" |
