User Manual for Canare L-8CHD Super Low Loss Coaxial Cable Click to enlarge the picture
Contents of the user manual for the Canare L-8CHD Super Low Loss Coaxial
- Product category: Bulk Video Cables Canare
- Brand: Canare
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canare Bulk Video Cables
|
User manual for the Canare L-8CHD Super Low Loss Coaxial contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canare product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canare user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canare product will considerably shorten its lifespan!
|

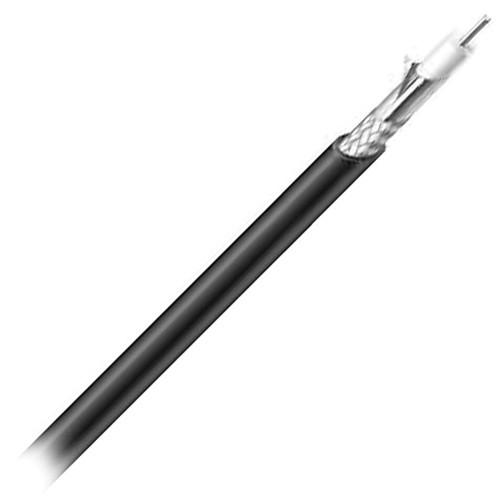

Product description The Canare L-8CHD Super Low Loss Coaxial Cable (656.17' / 200 m, Black) is a precision digital video cable offering the professional broadcaster a high performance, 100% sweep tested, low cost, low loss coax cable that meets the requirements of serial digital video and HDTV standards. - Supports HD-SDI video format via SMPTE 292M
- Multi-layer insulation with each layer having different foaming ratio for increased strength
- Highly-foamed PE insulation for better attenuation characteristics
- Tinned copper braid with aluminum foil provides good shielding
- Ideal for HD serial digital video, satellite headends, HDTV upgrades, broadband facilities
Note:Note 1: Designed for fixed installation, and not fit for mobile use where external force or pressure is unavoidable.
Note 2: Cable strippers (TS100 series) cannot be used. In the Box Canare L-8CHD Super Low Loss Coaxial Cable (656.17' / 200 m, Black) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare L-8CHD Super Low Loss Coaxial Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare L-8CHD 200METER Specs | Material | Jacket: PVC
Insulation: Highly foamed PE | | Attenuation | 9.6 dB/100 m @ 750 MHz | | Conductor Resistance | Inner: ≤5.8 Ω/km
Outer: ≤6.3 Ω/km | | Impedance | Characteristic: 75 ± 3 Ω | | Static Capacity | 50 nF/km @ 1 KHz | | Outer Diameter | Nominal: 0.44" (11.1 mm)
Inner Conductor: 0.079" (2 mm)
Insulation: 0.32" (8.2 mm) | | Conductor | Inner Conductor
Composition: 12 AWG (1/2.0A mm quantity/mm)
Outer Conductor
Composition: 0.16TA mm
8 ends
24 carriers | | Shield Coverage | 90% or more | | Dielectric Strength | 1,000 VAC/min | | Length | 656.17' (200 m) | | Weight | 61.73 lb (28 kg) |
