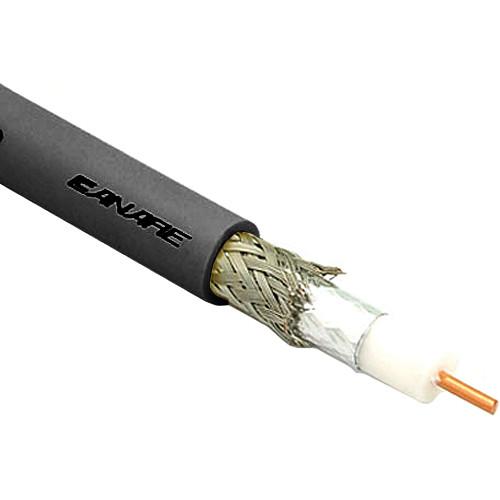

User Manual for Canare L-CHD Series L-6CHD 75 Digital Video Coaxial Cable Click to enlarge the picture
Contents of the user manual for the Canare L-CHD Series L-6CHD 75 Digital
- Product category: Bulk Video Cables Canare
- Brand: Canare
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canare Bulk Video Cables
|
User manual for the Canare L-CHD Series L-6CHD 75 Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canare product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canare user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canare product will considerably shorten its lifespan!
|
Product description The 300 meter; L-CHD Series L-6CHD 75Ω Digital Video Coaxial Cable from Canare supports a full-range of video formats. The cable’s cutting-edge Super Low Loss Coax and Low Loss Coax are suitable for 3G-SDI / HD-SDI distribution. - Suitable for 3G-SDI / HD-SDI transmission
- Highly-foamed PE insulation allows further improvement in the attenuation characteristics
- Multi-layer insulation in which each layer is given a different foaming ratio is used to increase strength
- Tinned copper braid with aluminum foil lends good-quality shielding
- For applications HD-serial digital video, satellite head ends, HDTV upgrades, broadband facilities, and SMPTE 259M, 292M, 424M
In the Box Canare L-CHD Series L-6CHD 75 Digital Video Coaxial Cable (300M, Black) Limited 1-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare L-CHD Series L-6CHD 75 Digital Video Coaxial Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare L-6CHD 300METER Specs | | | DC Resistance | Inner Conductor: <=3.1 Ω / 1,000' (<=1 Ω / 100 m)
Outer Conductor: <=2.3 Ω / 1,000' (<=0.8 Ω / 100 m) | | Voltage | Minimum Breakdown Voltage: 1,000 VAC / 1 min
Insulation Resistance: Between conductors >=1,000 MΩ / 3,000' (>=1,000 MΩ / km) | | Impedance | Character: 75±3 Ω at 10 MHz | | Capacitance | Between conductors 15.2 pF/ft (50 pF/m) | | Tensile Strength | Jacket: MPa >=11.0, %= >=220 | | Attenuation | Attenuation: 10 MHz, dB/100 m: 1.7, per 1,000': 5.2
Attenuation: 30 MHz, dB/100 m: 2.7, per 1,000': 8.2
Attenuation: 72 MHz, dB/100 m: 3.9, per 1,000': 11.9
Attenuation: 88 MHz, dB/100 m: 4.3, per 1,000': 13.1
Attenuation: 135 MHz, dB/100 m: 5.2, per 1,000': 15.8
Attenuation: 180 MHz, dB/100 m: 6.0, per 1,000': 18.3
Attenuation: 270 MHz, dB/100 m: 7.4, per 1,000': 22.6
Attenuation: 750 MHz, dB/100 m: 12.9, per 1,000': 39.3
Attenuation: 1.5 GHz, dB/100 m: 19.0, per 1,000': 57.9
Attenuation: 2.4 GHz, dB/100 m: 24.8, per 1,000': 75.6
Attenuation: 3.0 GHz, dB/100 m: 28.3, per 1,000': 86.3 | | | | Conductor | Inner Conductor
Structure: Annealed Copper, 59.06 mil (1.50 mm)
Nominal Cross Section Area: 2,743.5 mil (1.77 mm), 15 AWG
Outer Diameter: 59.06 mil (1.50 mm)
Outer Conductor
Conductor1:
Type: Aluminum foil (easy peel adhesive)
Thickness: 2.76 mil (0.07 mm)
Coverage: 100%
Conductor2:
Type: Annealed copper, 5.51 mil (0.14 mm), piece: 8, carr: 24
Coverage: >92% | | Jacket | Type: PVC
Thickness: 39.37 mil (1.00 mm)
Overall Diameter: 0.35" (8.90 mm) | | Insulation | Type: Gas injected foam polyethylene
Thickness: 90.55 mil (2.30 mm)
Outer Diameter: 0.24 mil (6.10 mm) | | | | Length | 984' (300 m) | | Weight | 67.2 lb/100' (10 kg/100 m) | | | | Package Weight | 78.65 lb | | Box Dimensions (LxWxH) | 22.0 x 22.0 x 14.0" |
