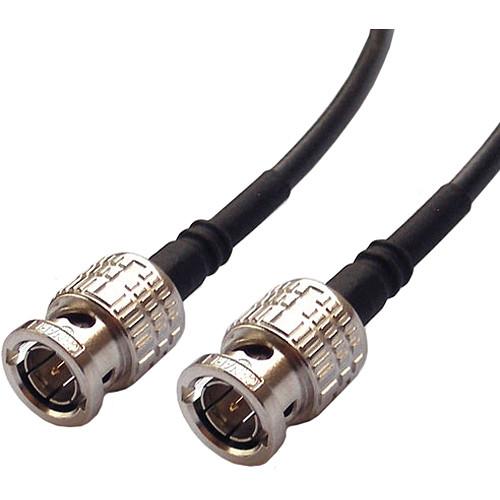

User Manual for Canare L2.5CHD Ultra Slim HD-SDI BNC Cable Click to enlarge the picture
Contents of the user manual for the Canare L2.5CHD Ultra Slim HD-SDI BNC
- Product category: BNC to BNC Cables Canare
- Brand: Canare
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canare BNC to BNC Cables
|
User manual for the Canare L2.5CHD Ultra Slim HD-SDI BNC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canare product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canare user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canare product will considerably shorten its lifespan!
|
Product description This 10 ft Canare L2.5CHD Ultra Slim 3G/HD SDI BNC Cable is a 75 Ω, 23 AWG coaxial cable for internal rack wiring. It features highly-foamed PE insulation that allows better attenuation because of the softness of the foaming. The insulation is made up of multiple layers at different foaming ratios to increase its durability. The shielding is tinned copper braid with aluminum foil, which provides better rejection of interference because of the solid composition of the foil. - Additional Features
-
- Flame resistant UL 1666 riser
- SMPTE 259M, 292M, 424M
- Useful for satellite head ends, HDTV upgrades, broadband facilities, and more
In the Box Canare L2.5CHD Ultra Slim HD-SDI BNC Cable (10 ft) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare L2.5CHD Ultra Slim HD-SDI BNC Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare CAL2.5CHDBM10 Specs | Cable Length | 10' / 3 m | | Conductor DC Resistance | 0.002 Ohms/ft (Up to 5280' / 1600 m) | | Shielding | 95% Copper | | Wire Gauge | 23 AWG | | Outer Diameter | 0.165" / 4.2 mm | | Maximum Impedance | 75 Ohms | | Maximum Signal Loss | 30.2 dB at 750 MHz over 328' / 100 m | | Weight | 0.2 lb / 0.1 kg | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 7.0 x 6.7 x 0.2" |
