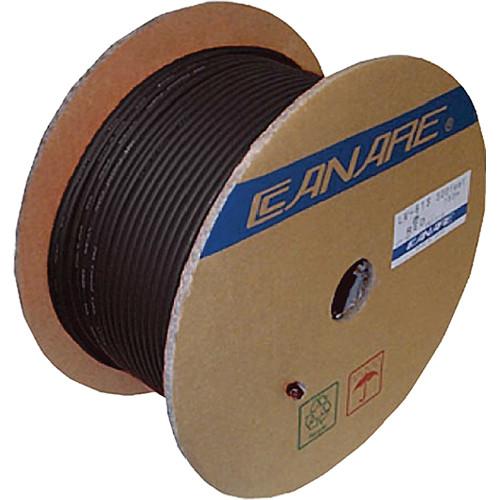

User Manual for Canare MR202-32AT Twisted Pair Multichannel Microphone Cable Click to enlarge the picture
Contents of the user manual for the Canare MR202-32AT Twisted Pair Multichannel Microphone
- Product category: Bulk Audio Cable Canare
- Brand: Canare
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canare Bulk Audio Cable
|
User manual for the Canare MR202-32AT Twisted Pair Multichannel Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canare product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canare user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canare product will considerably shorten its lifespan!
|
Product description The Canare MR202-32AT Twisted Pair Multichannel Microphone Cable (328' / 100 m) is a 100% foil shielded multichannel audio snake cable for general studio applications. Each individually isolated channel consists of 2 twisted conductors under an easy-to-strip PVC jacket extruded over a foil shield and drain wire. The color striped PVC channel jacket alleviates the need to use costly shrink tubing. Surprisingly flexible, this multichannel cable is perfect for control room layout and interfacing between equipment racks, audio patchbays, mixers, and tape decks. Note: The MR202-AT Series cables are not geared to conduit or field use applications in which cables are subject to strong pulling action. - Foil shield with drain wire
- Suitable for microphones, audio rack wiring, recording suites, and post production applications
- Ideal for pit (duct) wiring and for interconnecting devices in studios
- Color coding for channels conforms to international standards pertaining to color coding for resistors
- Internal drain wire eliminates the troublesome part of line termination work
In the Box Canare MR202-32AT Twisted Pair Multichannel Microphone Cable (328' / 100 m) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare MR202-32AT Twisted Pair Multichannel Microphone Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare MR202-32AT 100M Specs | Brittle Point | -4°F (-20°C) | | No. of Channels | 32 pairs | | Conductor | 64 (2 per channel)
AC - #25 (AWG)
7 / 7.09 quantity / mm²
Cross Section Area: 0.18
25 (AWG)
7/0.18 A quantity / mm² Effective AWG of combined twin conductors | | Cross Section Area | 279 mm² | | Outer Diameter | Nominal: 0.752" (19.1 mm)
Channel: 0.1" (2.7 mm) | | Material | PVC Jacket 0.059" (1.5 mm) thick
Insulation Type: IPE, 9.1 mm thick
Channel Jacket Nominal Thickness: 11.8 mil | | Shield Coverage | 100% Aluminum Tape, Drain Wire #25 AWG | | Dielectric Strength | 500 VAC / minute | | Insulation Resistance | 1000 MΩ at 3 m | | Twist Pitch | 0.98" (25 mm) | | Conductor D.C.R. | <32.5 Ω / 1000' (10.7 Ω / 100 m) | | Nominal Capacitance | 23.2 pF/ft (76 pF/m) capacitance between conductors
43.3 pF/ft (142 pF/m) capacitance between conductor and shield | | Length | 328' (100 m) | | Weight | 97 lb (44 kg) |
