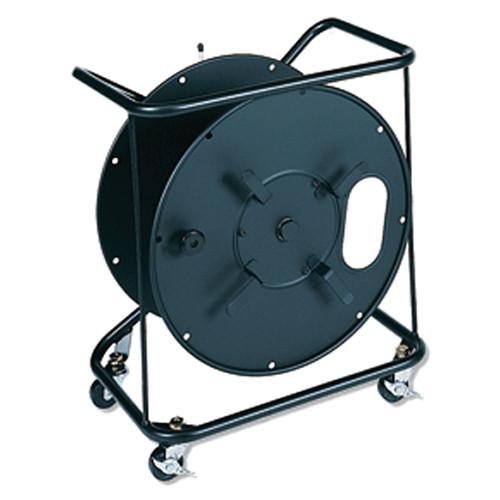

User Manual for Canare R300L Cable Spool Click to enlarge the picture
Contents of the user manual for the Canare R300L Cable Spool
- Product category: Cable Management Accessories Canare
- Brand: Canare
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canare Cable Management Accessories
|
User manual for the Canare R300L Cable Spool contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canare product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canare user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canare product will considerably shorten its lifespan!
|
Product description Canare has developed a dependable and road-worthy cable reel in three useful sizes that keeps cable stored neatly when not in use, yet allows quick deployment without tangles and twisting. The reel provides a perfect way to facilitate transporting and laying cable, while protecting your valuable cable investment.
The R300L is the small size cable reel from Canare. This reel will accept a variety of cable and connectors.
All Canare R-Series cable reels include a special 3-position brake lever. The R300L is constructed of tubular steel, with an "E" shaped brace, and is extremely durable. Canare uses heavy-duty permanently lubricated bearing which performs like new even after years of hard use. Also included is a robust winding handle. A durable black finish is applied for lasting good appearance and reel protection.
The R300L holds up to 2,500 feet of 0.10" O.D. cable, is stackable with like models and has a connector mounting flange. - Stacking Tabs
- R300 series models have built in stacking tabs, so cable reels can be placed one on top of the other for secure transporting and storage
- Durable Construction
- The reel is constructed of tubular steel, with an "E" shaped brace, and is extremely durable. Canare uses heavy-duty permanently lubricated bearing for long-term reliability. A durable black finish is applied for a polished appearance and reel protection
- Stringent Testing
- Canare's tests indicate the reel will deform only 0.04 inches with a 440 pound load on the main shaft and just 0.2 inches with a maximum 550 pound load. The tensile strength at the welded points is 5,500 pounds. These reels are further tested with sustained vibration, to ensure constant mechanical stability even after prolonged transportation and rough handling
- 3 Position Brake Lever
- All R-Series models include a 3-position brake lever:
- Free spool: cable will pull from reel with ease, this position is ideal for rewinding
- Soft brake: cable can be pulled from the reel, but friction prevents excess spillage when cable is pulled quickly
- Full lock: used during transportation, the reel will not rotate, so cable will not spill
In the Box Canare R300L Cable Spool 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare R300L Cable Spool in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare R300L Specs | Capacity | Holds up to 2500' (762 m) of 0.10" (2.54 mm) O.D cable | | Dimensions | Outer frame:
14.2 x 9.8 x 13.4" (36 x 25 x 34 cm)
Reel dimensions:
Hub OD x hub ID x hub width
11.8 x 6.1 x 6.3" (30 x 15.5 x 16 cm) | | Weight | 9.5 lb (4.3 kg) | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 15.0 x 11.0 x 6.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
