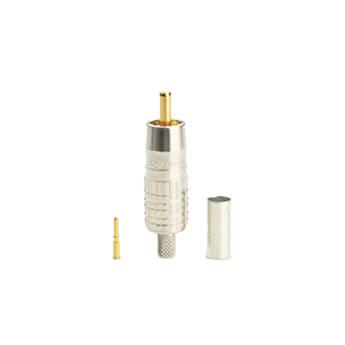

Product description The RCAP-C3A 75Ω RCA Connector from Canare is used for A/V applications and does not require soldering. This straight plug connector features a gold plated center shaft. - Standard 75Ω construction crimp pin & sleeve
- DC to 200 MHz, >26 dB return loss (<1.1 VSWR)
- Superior cable pull strength
- Internal pressure contact fingers
- Easy assembly using Canare strip & crimp tools
- Applications include multimedia patchcords, high-resolution video monitors, SPDIF digital audio, duplication decks, VCRs & camcorders , audio interconnects, home theater installations
Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare RCAP-C3A 75Ω Straight Plug RCA Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare RCAP-C3A Specs | Impedance | 75 Ω | | Cable Compatibility | Canare L-3C2VS, L-3C2V, and V*-3C series | | Parts | Boot: CB24
Crimp Die: TCD-35CA
Crimp Pin: B11014E
Sleeve: BN7003A | | VSWR | <1.1 (>26 dB) | | Body Material | Brass with nickel plating | | Material | Contact: Phosphor bronze with gold plating
Outer Contact: Beryllium copper with gold plating
Dielectric: PPO noryl
Crimp Pin: Brass with gold plating
Crimp Sleeve: Copper with tin plating | | Cable Retention | >55 lb (>24.9 kg) | | Insulation Resistance | >100 MΩ | | Voltage Rating | 500 VAC RMS (for 1 minute) | | Contact Resistance | <10 mΩ | | Dimensions (Ø x L) | 0.47 x 1.69" (1.20 x 4.30 cm) | | | | Package Weight | 0.04 lb | | Box Dimensions (LxWxH) | 1.5 x 0.5 x 0.5" |
