User Manual for Canare Twisted Pair Microphone Cable Click to enlarge the picture
Contents of the user manual for the Canare Twisted Pair Microphone Cable
- Product category: Bulk Audio Cable Canare
- Brand: Canare
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canare Bulk Audio Cable
|
User manual for the Canare Twisted Pair Microphone Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canare product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canare user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canare product will considerably shorten its lifespan!
|

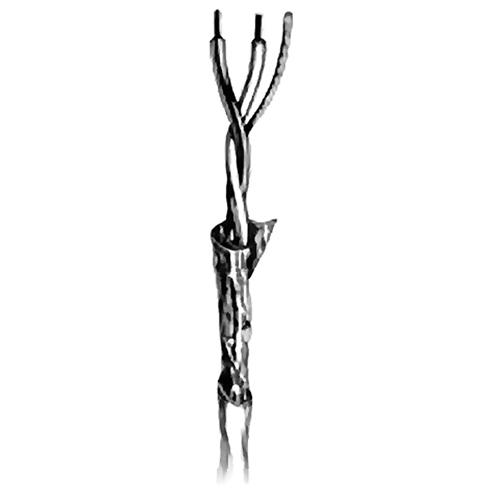

Product description The black Twisted Pair Microphone Cable from Canare is a thin-profile audio hookup wire that measures 1640' in length. This cable is very flexible and features a 100% foil shield, drain wire, and PVC jacket, which strips easily for rapid assembly. This microphone cable is suitable for large cable harness bundles, mixing consoles, tape machines, and inner-rack wiring. This is cable belongs to the L-2B2AT Twisted Pair Microphone cable series. - Ideal for internal rack wiring
- Internal drain wire eliminates the need for line termination work
- 100% foil shield coverage with drain wire
- Built-in Dupont Kevlar 29
- Cross-linked PE insulation
In the Box Canare Twisted Pair Microphone Cable (1640', Black) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare Twisted Pair Microphone Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare L-2B2AT 500M Specs | Applications | Microphones, permanent installations, audio patch cords, PA systems, post-production suites, and recording studios | | | | Outer Diameter | Nominal: 0.126' (3.2 m) | | Nominal Jacket Thickness | 0.012' (0.3 m) | | Number of Conductors | 2x | | Insulation | Type: IPE
Thickness: 0.49" (12.6 mm)
Note: Dielectric Strength: 500 VAC / 1 minute
Insulation Resistance: >1,000 M Ω per 3’ (0.91 m) | | Conductor | AWG (AC): 25 (16 / 4.73 quantity / mm)
Cross-Sectional Area: 279 mm² | | Pitch Twist Quad | <0.99" (<25 mm) | | Shield Coverage | 100% Aluminum tape | | Conductor D.C.R. | <31.9' Ω / 1000' (<10.5 Ω / 100 m) | | Nominal Capacitance | Between Conductors: 23 pF / 1000 (73 pF / 100 m)
Between Conductors to Shield: 37 pF / 1000' (120 pF / 100 m) | | Brittle Point | -13°F (-25°C) | | Length | 1640' (500 m) | | Weight | 15 lb (7 kg) | | | | Package Weight | 16.15 lb | | Box Dimensions (LxWxH) | 11.5 x 11.5 x 6.6" | Note: Effective AWG of combined twin conductors
