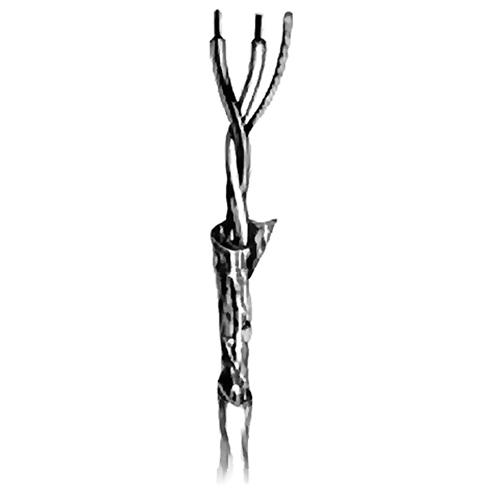

Product description The black Twisted Pair Microphone Cable from Canare is a thin-profile audio hookup wire that measures 656' in length. This cable is very flexible and features a 100% foil shield, drain wire, and PVC jacket, which strips easily for rapid assembly. This microphone cable is suitable for large cable harness bundles, mixing consoles, tape machines, and inner-rack wiring. This is cable belongs to the L-2B2AT Twisted Pair Microphone cable series. - Ideal for internal rack wiring
- Internal drain wire eliminates the need for line termination work
- 100% foil shield coverage with drain wire
- Built-in Dupont Kevlar 29
- Cross-linked PE insulation
In the Box Canare Twisted Pair Microphone Cable (656', Black) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare Twisted Pair Microphone Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare L-2B2AT 200M Specs | Applications | Microphones, permanent installations, audio patch cords, PA systems, post-production suites, and recording studios | | | | Outer Diameter | Nominal: 0.126' (3.2 m) | | Nominal Jacket Thickness | 0.012' (0.3 m) | | Number of Conductors | 2x | | Insulation | Type: IPE
Thickness: 0.49" (12.6 mm)
Note: Dielectric Strength: 500 VAC / 1 minute
Insulation Resistance: >1,000 M Ω per 3’ (0.91 m) | | Conductor | AWG (AC): 25 (16 / 4.73 quantity / mm)
Cross-Sectional Area: 279 mm² | | Pitch Twist Quad | <0.99" (<25 mm) | | Shield Coverage | 100% Aluminum tape | | Conductor D.C.R. | <31.9' Ω / 1000' (<10.5 Ω / 100 m) | | Nominal Capacitance | Between Conductors: 23 pF / 1000 (73 pF / 100 m)
Between Conductors to Shield: 37 pF / 1000' (120 pF / 100 m) | | Brittle Point | -13°F (-25°C) | | Length | 656' (200 m) | | Weight | 6 lb (3 kg) | | | | Package Weight | 6.9 lb | | Box Dimensions (LxWxH) | 11.5 x 11.4 x 3.4" | Note: Effective AWG of combined twin conductors
