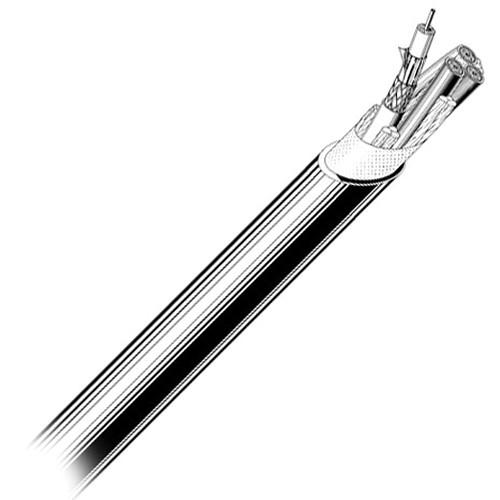

Product description The Canare V5-3CFB Digital Video Coaxial Cable (328' / 100 m) is designed for digital and HDTV facilities. Each coaxial channel includes a foam core PE dielectric, solid bare copper center conductor, and double foil / braid shield. The coaxial cable features a less than 2.2 nanosecond channel-to-channel differential delay time and reduces phase errors in component video setup alignments. Bundled cable helps keep work site neat and clean. It can be comfortably used for super high-resistant CG workstation interconnects and digital video installations. - Used for the following applications: SDI (Serial Digital Video), HDTV upgrade, video walls, high-resistant video projection, and CG / CAD Workstations
- Solid copper center conductor
- Tinned copper braid and 100% foil shield
- Dielectric strips away clean from conductor
- Reduces phase errors in component video setup alignments
- Used for super high-resistant CG workstation interconnects and digital video installations
In the Box Canare V5-3CFB Digital Video Coaxial Cable (328' / 100 m) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare V5-3CFB Digital Video Coaxial Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare V5-3CFB 100M Specs | Number of Channels | 5 (Red, green, blue, white, & yellow) | | Outer Diameter | Nominal: 0.559" (14.2 mm)
Channel: 0.173" (4.4 mm)
Conductor: 0.026" (0.65 mm)
Insulation: 0.122" (3.1 mm) | | Channel Jacket Nominal Thickness | 0.043" (1.10 mm) | | Brittle Point | -22°F (-30°C) | | Conductor | AWG: AC-#22 (1/25.6) (Quantity/mm)
Cross Sectional Area: 512 mm² | | Dielectric Insulation Type | Foam PE | | Dielectric Strength | 1000 VAC/min | | Shield Material Coverage | AL foil 100%, TAC braid >93% | | Conductor D.C.R. | <5.6 | | Shield D.C.R | <1.4 | | Nominal Mutual Capacitance | 55 | | Nominal Impedance | 75 Ω | | Differential | Delay: <2.2 | | Velocity of Propagation | 79% | | Nominal Attenuation | At 10 MHz: 1 (3.2) dB
At 50 MHz: 2.5 (8) dB
At 135 MHz: 3.7 (12.3) dB
At 270 MHz: 5.2 (17.2)dB
At 360 MHz: 6.1 (20) dB
At 720 MHz: 8.9 (29.1) dB
At 1 GHz: 10.6 (24.7) dB
At 1.45 GHz: 13 (42.6) dB
At 1.8 GHz: 14.7 (48.3) dB
At 2GHz: 15.6 (51.2) dB | | Length | 328' (100 m) | | Weight | Not mentioned by the manufacturer |
