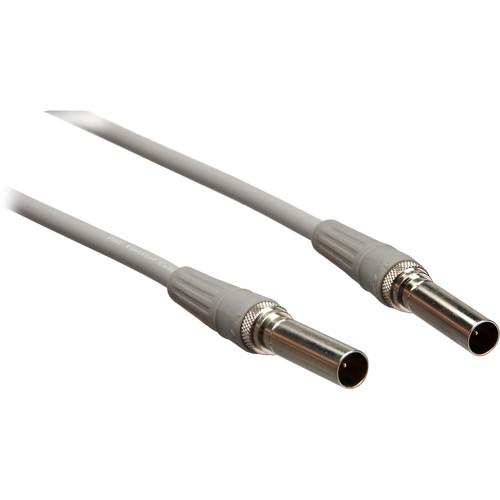

User Manual for Canare Video Patch Cable - 6 ft Click to enlarge the picture
Contents of the user manual for the Canare Video Patch Cable - 6
- Product category: Video Patch Cables Canare
- Brand: Canare
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canare Video Patch Cables
|
User manual for the Canare Video Patch Cable - 6 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canare product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canare user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canare product will considerably shorten its lifespan!
|
Product description Canare's 6-Foot Video Patch Cable is perfect for connecting analog and digital components together through a compatible 75-ohm patch bay. Shielded from interference and made with securely fitting video patch connectors, these cables maintain signal integrity with a constant 75-ohm impedance.
Canare's Video Patch Cables are highly flexible, available in precisely cut lengths, and come in a variety of matte colors with a protective, color-matched rubber boot. - Analog and Digital Compatibility
- These video patch cables are designed for analog and digital broadcast applications.
- RG59 Coaxial Cable
- Perfect for all video facility equipment interfacing, Electronic News Gathering (ENG), Electronic Film Production (EFP), and video patch cord assemblies, the RG59-type coaxial cable is available in a variety of lengths to suit your needs. This cable maintains a constant 75-ohm impedance.
- Colorful Selection
- Canare cables are available in a variety of matte colors, allowing for more options when organizing your patch bay connections. All colored cables include a matching matte color silicon-rubber boot.
- Precise Manufacturing
- Every cable is manufactured to meet exacting specifications, so you can be sure that each and every connection is exactly the same.
- 75-Ohm Video Patch Plug
- With a nickel-plated body and gold-plated connectors, this video patch plug precisely maintains a 75-ohm impedance and a secure signal connection.
In the Box Canare Video Patch Cable - 6 ft (Gray) 1 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canare Video Patch Cable - 6 ft in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanare VPC006F GRAY Specs | Cable Type | 75-ohm video patch cable | | Length | 6' | | Ideal Application | Used to connect input and output ports on 75-ohm video patch bays | | | | Conductors | (1) stranded bare annealed copper conductor--made of 7 strands | | Gauge | 24 AWG | | Shielding | Tightly woven annealed copper braid--at least 95% coverage | | Dielectric (Insulation) | Polyethylene | | Impedance | 75 ohm | | Capacitance | 21 per foot | | Jacket | Red PVC (Polyvinyl Chloride): 0.039" non-glare finish | | | | Connector 1 | 75-ohm video patch plug--male | | Connector 2 | 75-ohm video patch plug--male | | Contacts | Berrylium Copper/Gold plating | | Body | Brass/Nickel plating | | Interface Required | (2) 75-ohm video patch jacks--female | | Standards Certification | None | | Warranty | 1 year | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 8.5 x 5.0 x 3.0" |
