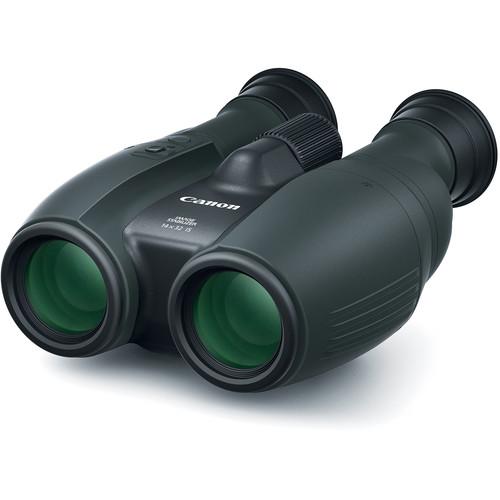

User Manual for Canon 14x32 IS Image Stabilized Binocular Click to enlarge the picture
Contents of the user manual for the Canon 14x32 IS Image Stabilized Binocular
- Product category: Binoculars Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Binoculars
|
User manual for the Canon 14x32 IS Image Stabilized Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description On the Long Island Sound with the Canon 12x36 IS III Image Stabilized Binocular Read More Adapting the IS system from their line of EF lenses, the Canon 14x32 IS Image Stabilized Binocular employs a lens-shift system uses a combination of a vibration gyro-mechanism and microprocessors that detect and counter the appearance of hand-shake by moving the internal lens assembly to make the image appear steady. High-magnification optics, such as this, are extremely prone to the appearance of visible hand-shake, which interferes with clear and immersive views. Through the use of image stabilization, users can enjoy high-power observations without the distracting shake, or the need for tripods or other support systems normally required to achieve steady images.Two IS modes allow the performance to be tailored to the situation: Normal IS is ideal for moving or multiple subjects, while Powered IS improves the stabilization when observing a single stationary subject. An intuitive two-button user interface makes choosing the mode simple and easy. The IS runs on two included AA batteries, and when not using the image stabilization, the optic will operate as a conventional pair of binoculars.Optically, the binoculars are built with traditional Porro prisms, and an integrated field-flattener lens that corrects spherical aberration for distortion-free views, especially at the edges. Canon's proprietary Super Spectra Coating is used to limit color bias, lens flare and ghosting; while maximizing light transmission, color rendition, clarity, and contrast across the entire visible spectrum. With this new IS system, the close focus distance has been drastically reduced versus earlier models that use a different IS mechanism. - Performance
-
- Powerful 14x magnification
- Compact 32mm objective lens
- Porro prism light path
- Fully multi-coated optics using Canon's proprietary Super Spectra Coating to limit color bias, lens flare and ghosting; while improving light transmission, color rendition, clarity, and contrast across the entire visible spectrum
- Doublet field-flattener lens corrects spherical aberration for distortion-free views, especially at the edges
- 7-element/6-group objective lens configuration
- 5-element/4-group eyepiece lens configuration
- 226-foot field of view at 1000 yards
- 6.6' close focus distance is an improvement over earlier IS models
- Image Stabilization
-
- Lens-Shift image stabilization system uses a vibration gyro-mechanism, in conjunction with microprocessors, that detect and counter the appearance of hand-shake by moving the internal lens assembly horizontally and vertically, to make the image appear steady
- Powered Image Stabilization is a secondary IS system that improves the image stabilization when focused on a single subject
- ±1.0° correction angle
- Runs on two AA batteries
- Use and Handling
-
- Simple 2-button interface: Normal IS and Powered IS
- Large center focus wheel
- ±3 right eye dioptric correction
- 55-76mm interpupillary adjustment range
- Fold-down rubber eyecups for comfortable use with or without eyewear
- 14.5mm eye relief
- 2.3mm exit pupil
- Construction Details
-
- Redesigned chassis is more ergonomic to fit more comfortably in the hand
- Slip-resistant rubber armoring provides a sure grip
- Weight: 27.3 ounces
UPC: 013803273861 In the Box Canon 14x32 IS Image Stabilized Binocular One-Piece Ocular Rainguard with Cord Neck Strap Carrying Case 2 x AA Batteries Limited 3-Year Warranty Canon 32mm IS Image Stabilized Binoculars Christopher Witt 08/02/2017 The B&H Binocular Buying Guide Christopher Witt 12/13/2018 Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 2.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon 14x32 IS Image Stabilized Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon 1374C002 Specs | Prism Type | Porro | | Magnification | 14 x | | Objective Lens Diameter | 32 mm | | Angle of View | 4.3° (actual) | | Field of View | 225.7' @ 1000 yd / 75.2 m @ 1000 m | | Minimum Focus Distance | 6.6' / 2 m | | Exit Pupil Diameter | 2.3 mm | | Eye Relief | 14.5 mm | | Interpupillary Adjustment | 55 to 76 mm / 2.2 to 3" | | Dioptric Correction | ±3 | | Stabilization Freedom | ±1.0° | | Focus Type | Center | | Tripod Mount | None | | Dimensions | 6.7 x 5.6 x 3.0" / 17.0 x 14.2 x 7.6 cm | | Weight | 27.3 oz / 774 g | | | | Package Weight | 3.345 lb | | Box Dimensions (LxWxH) | 11.1 x 8.95 x 6.2" |
