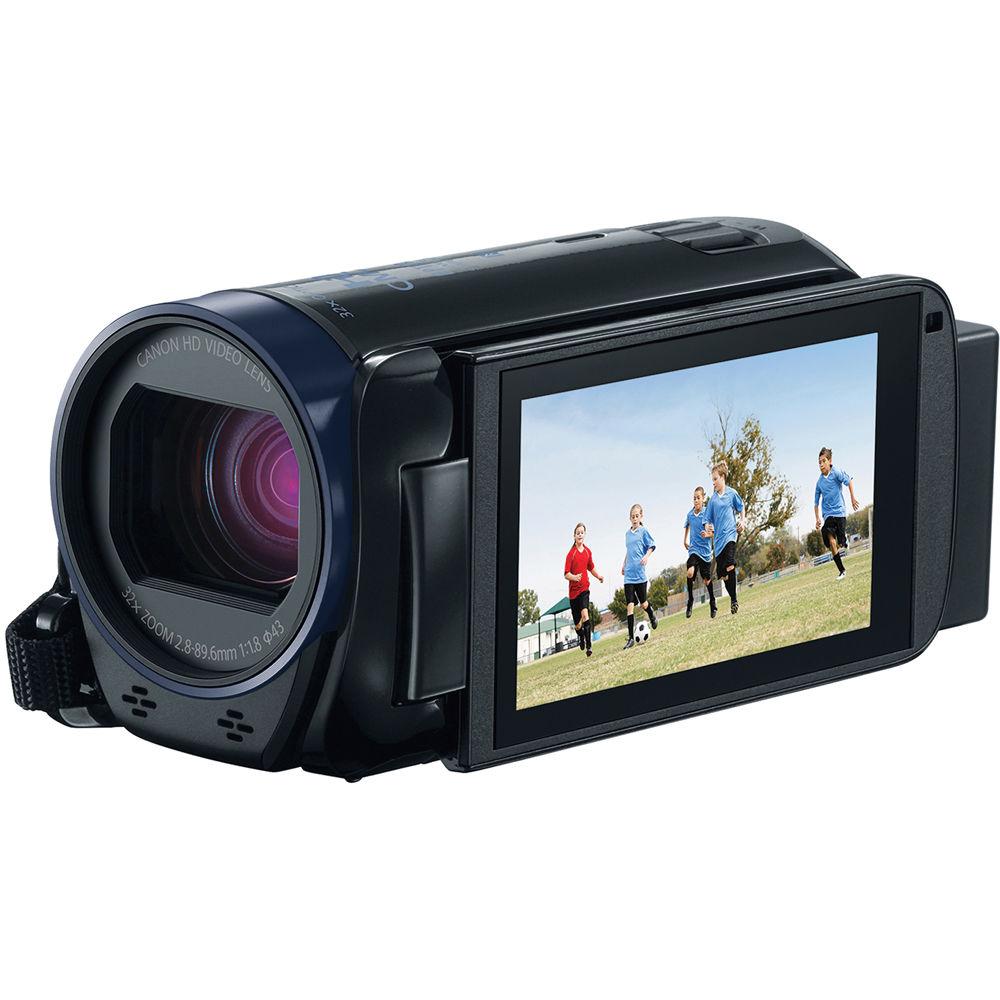

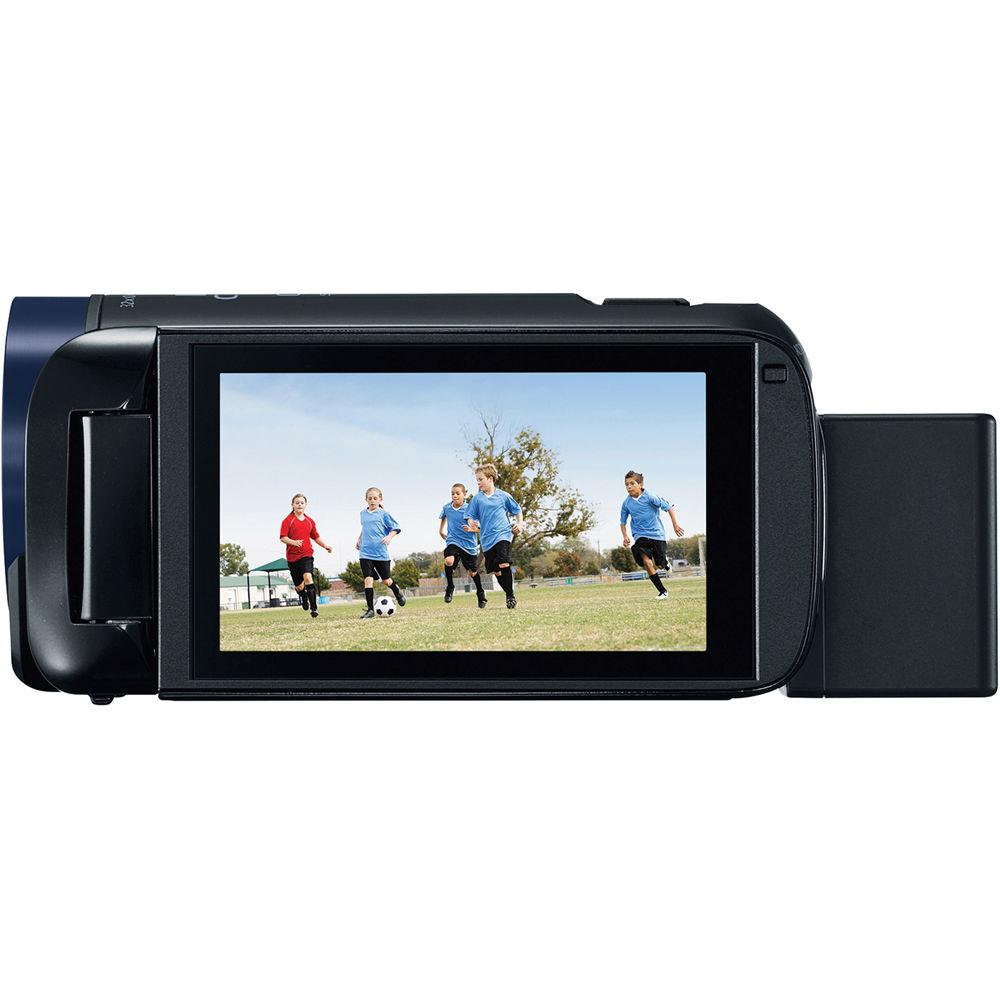

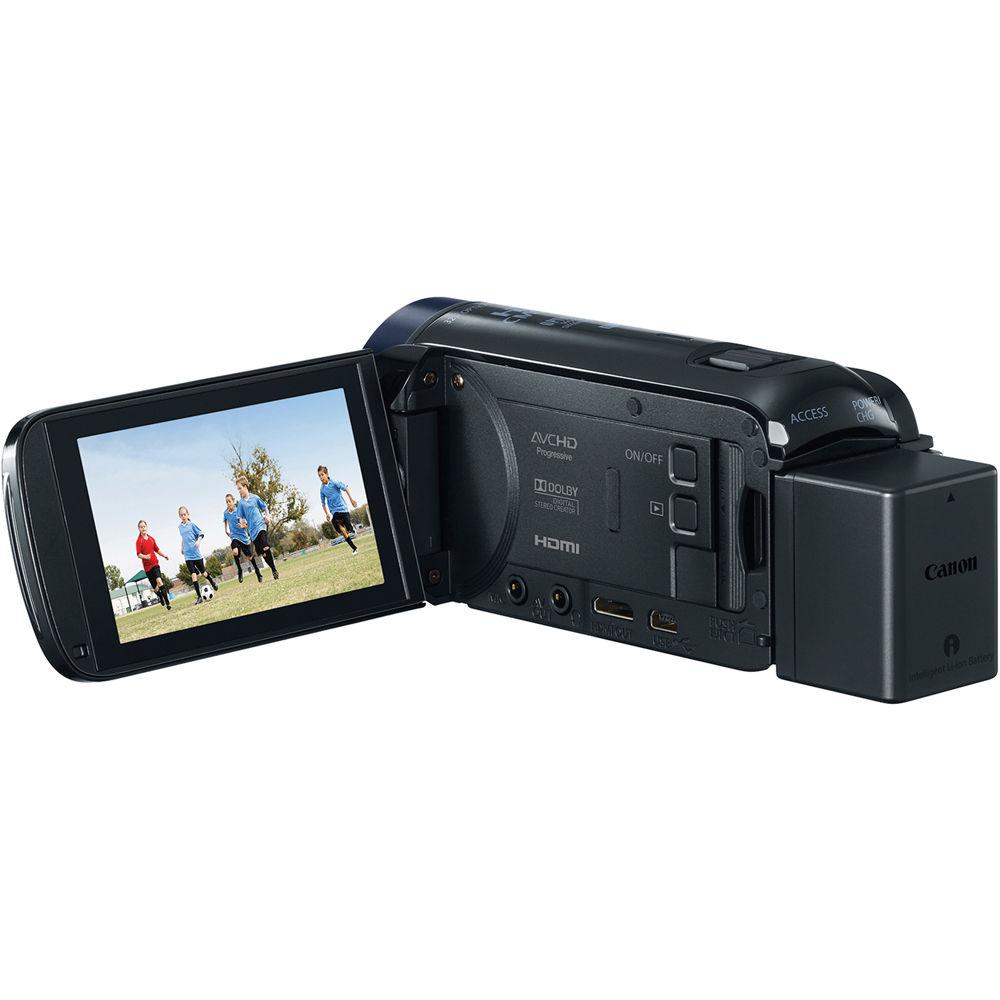

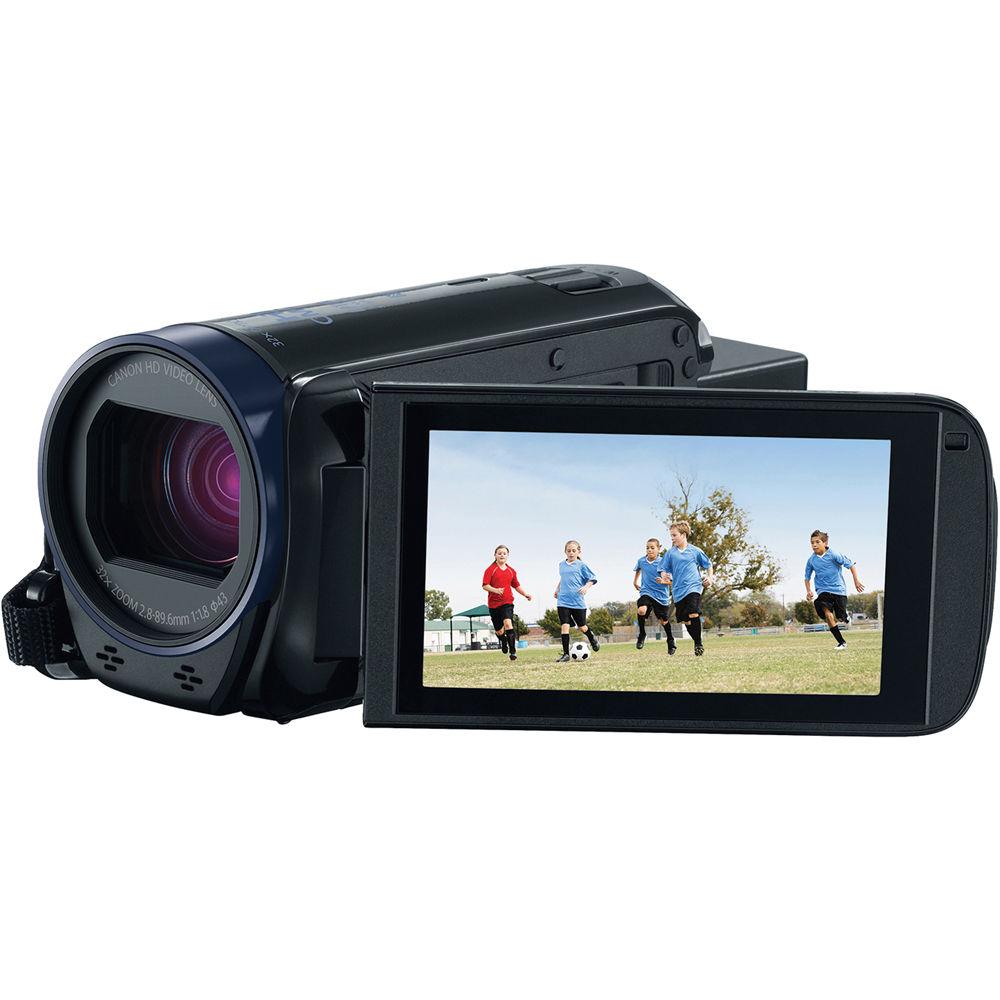

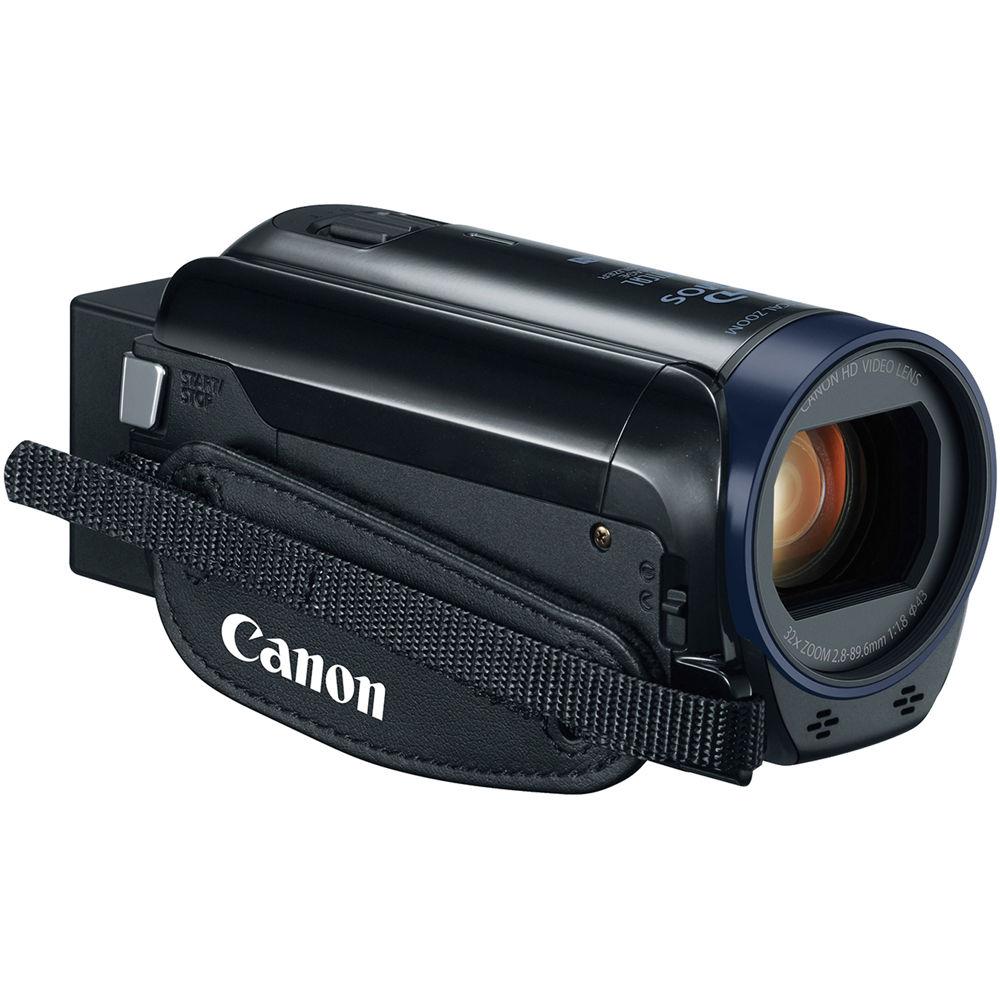

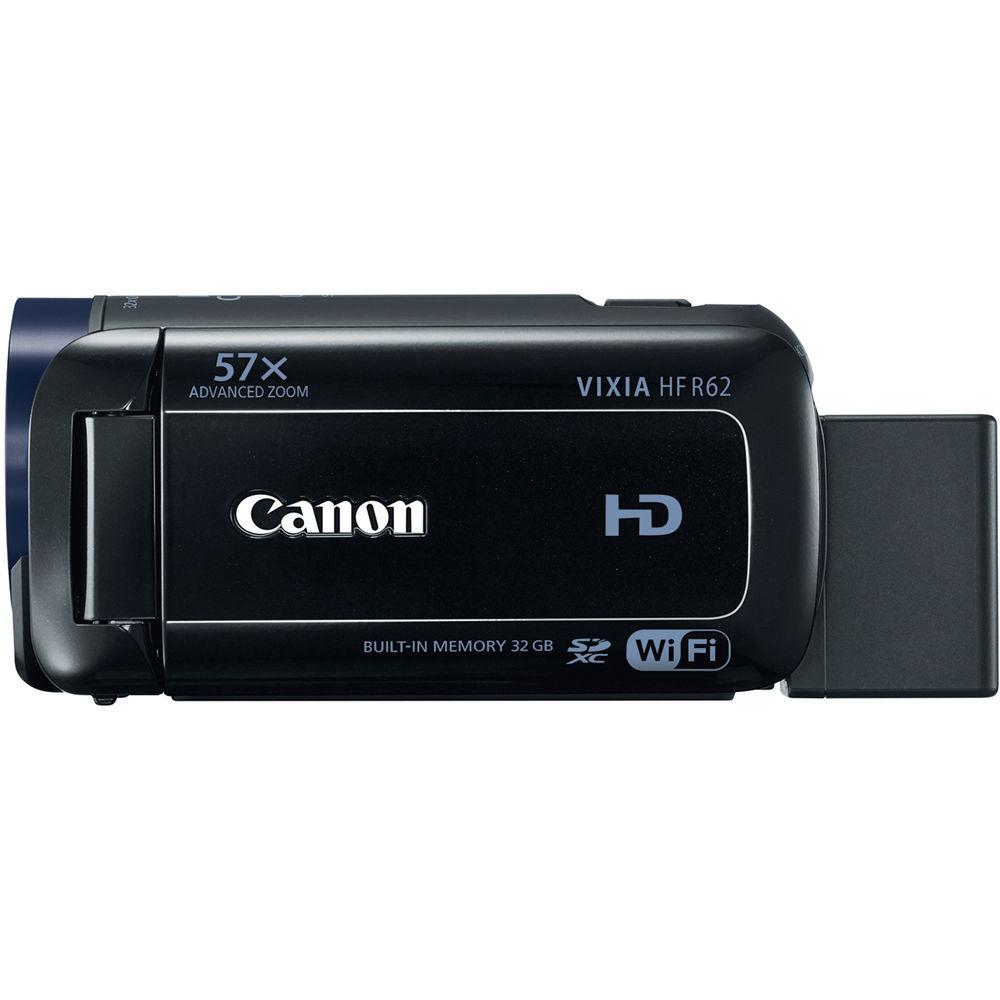

Product description The Canon 32GB VIXIA HF R62 (Refurbished) records Full HD 1920 x 1080p video to 32GB of internal flash memory or to a removable SD/SDHC/SDXC memory card. It features a long 57x Advanced Zoom range and SuperRange Optical Image Stabilization that combine to deliver sharp and steadier images, even when fully zoomed. Equipped with built-in Wi-Fi and NFC support, the camcorder allows you to connect to iOS and Android devices to enable remote control, live stream monitoring and recording, and easy file transfers for uploading your videos and photos to social networking sites.
The HF R62 (Refurbished) features a 3.28MP CMOS image sensor and a DIGIC DV 4 Image Processor that delivers up to 1080/60p video. Video can be recording in MP4 or AVCHD formats either independently or simultaneously using the Dual Recording option. Built-in down-conversion lets you create smaller-size files optimized for easy web-sharing. For easy framing, quick playback, and intuitive operation, a 3" LCD touchscreen panel is provided. Designed with all levels of users in mind, the HF R62 (Refurbished) has a wide range of features to automatically adjust image stabilization, zoom magnification, and image control settings to help you get the best possible images. A high-capacity 2685mAh battery is included for longer shooting times. - 3.28MP Full HD CMOS Image Sensor
- The 3.28MP CMOS image sensor supports 1920 x 1080 resolution video capture, and produces natural color even in low light.
- DIGIC DV 4 Image Processor
- The camcorder's DIGIC DV 4 Image Processor provides advanced imaging performance and the option to record in both AVCHD and the web-friendly MP4 formats simultaneously.
- Internal 32GB Flash Memory & SD/SDHC/SDXC Memory Card Slot
- The internal 32GB flash memory holds up to twelve hours of HD video; you can also record to a removable SD/SDHC/SDXC memory card.
- Powerful 57x Advanced Zoom
- 57x Advanced Zoom range takes the camcorder's focal length from 32.5mm all the way to 1853mm (35mm equivalent), which provides extraordinary flexibility in shooting.
- MP4 or AVCHD Progressive Recording
- Whether you're capturing MP4 or AVCHD files, this model supports Full HD 1920 x 1080/60p video capture. AVCHD Progressive records at bit rates up to 28 Mbps, while MP4 files are captured at bit rates up to 35 Mbps.
- Dual Recording
- The camcorder can simultaneously record video to internal flash memory in AVCHD format, and to a SD/SDHC/SDXC card in MP4 format. This model also has a built-in down-conversion function that creates smaller, web-friendly MP4 files for easier transferring and uploading.
- Slow & Fast Motion Recording
- Record fast motion at up to 1200x and slow motion at 1/2x for increased creative possibilities.
- Built-In Wi-Fi / NFC
- Built-in Wi-Fi and NFC connectivity lets you share your HD video with friends and family anytime, anywhere. Connect with your iOS or Android mobile devices using the free Canon Window app to easily transfer and then share your videos and photos to social networking sites.
- Live Streaming
- With Live Streaming support, you can also record and view live video on your compatible Android or iOS device and even control your camcorder from a remote location.
- SuperRange Optical Image Stabilization
- Providing continuous adjustment throughout the entire zoom range,the Dynamic Image Stabilization system on this camcorder stabilizes rotational camera shake. Controlling horizontal, vertical and roll axis rotational camera shake ensures smooth, distortion-free video - even when you're walking while shooting.
- 3" Touchscreen Panel LCD
- A 3" touch panel LCD screen makes your shooting experience simpler; the Home button is on the menu screen, and provides quick access to all functions.
In the Box Canon 32GB VIXIA HF R62 Full HD Camcorder (Refurbished) CA-110 Compact AC Power Adapter & Charger BP-727 High Capacity Intelligent Battery Pack IFC-300PC Interface Cable 6' HDMI Male to Mini HDMI Male Cable (Ver. 1.3) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon 32GB VIXIA HF R62 Full HD Camcorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon HF R62 Specs | | | Sensor | 1-Chip 1/4.85" CMOS | | Color Filter | RGB | | Sensor Resolution | 3.28 MP | | Effective Pixels | 2.07 MP (Video)
2.07 MP (Photo) | | | | Focal Length | 2.8 to 89.6mm | | 35mm-Equivalent Focal Length | 38.5 to 1232 Optical Zoom (Advanced Zoom Off)
32.5 to 1853 Advanced Zoom On | | Maximum Aperture | f/1.8 - f/4.5 | | Minimum Focusing Distance | 0.4" / 1.0 cm | | Zoom | Optical: 32x
Advanced (Optical): 57x
Digital: 1140x | | Filter Size | 43 mm | | | | System | NTSC | | Recording Media | x Internal Flash Memory (32 GB Maximum)
x SD/SDHC/SDXC | | Recording Time | Internal Flash Memory 32 GB
1440 x 1080 LP Mode: 12 hours 15 min. (AVCHD)
1920 x 1080 FXP Mode: 4 hours 10 min. (AVCHD)
1920 x 1080 MXP Mode: 2 hours 55 min. (AVCHD)
1920 x 1080 NTSC 60p Mode: 2 hours 30 min. (AVCHD)
Internal Flash Memory 32 GB
1280 x 720 4 Mbps Mode: 17 hours 20 min. (MP4)
1920 x 1080 17 Mbps Mode: 4 hours 10 min. (MP4)
1920 x 1080 24 Mbps Mode: 2 hours 55 min. (MP4)
1920 x 1080 35 Mbps Mode: 2 hours 20 min. (MP4) | | Video Format | 1920 x 1080p at 60 fps (28 Mb/s AVCHD)
1920 x 1080i at 60 fps (17 Mb/s AVCHD)
1920 x 1080p at 30 fps (24 Mb/s AVCHD)
1440 x 1080p (5 Mb/s AVCHD)
1920 x 1080p at 60 fps (35 Mb/s MP4)
1920 x 1080p at 30 fps (24 Mb/s MP4)
1920 x 1080p at 24 fps (17 Mb/s MP4)
1280 x 720p (4 Mb/s MP4) | | Still Image Resolution | JPEG: 2.07 Megapixel, 1920 x 1080 | | Channels | 2.0-Channel Stereo | | Audio Format | AAC-LC
Dolby Digital AC3 | | Sampling Frequency | Dolby 2-Channel: 48.0 kHz
AAC: 48.0 kHz | | | | Display Type | LCD | | Touchscreen | Yes | | Screen Size | 3" | | Screen Resolution | 230,000 Dots | | | | Shutter Speed | 1/2000 Second ()
1/500 Second () | | | | Image Stabilization | Optical & Digital | | Scene Modes | Preset: Yes | | Lux | 5 (NTSC)
.4 (Low Light Mode) | | White Balance Modes | Auto
Daylight
Manual
Tungsten | | Creative Effects | Yes | | Built-In Mic | Yes | | Built-In Speaker | Yes | | Built-In Light/Flash | Light - No
Flash - No | | Wi-Fi | Yes | | Accessory Shoe | None | | Tripod Mount | 1/4" - 20 | | | | Outputs | 1 x Mini-HDMI (Type C)
1 x USB 2.0 Mini-AB
1 x A/V 3.5mm mini-jack/Headphone terminal | | Microphone Input | Yes | | Headphone Jack | Yes | | | | Battery | Rechargeable Lithium-Ion Battery Pack, 3.8 VDC, 2685 mAh | | Charging Method | AC Adapter | | Power Adapter | 100 - 240 VAC, 50 / 60Hz | | Operating Temperature | 23 to 113°F / -5 to 45°C
Humidity: 60%
32 to 104°F / 0 to 40°C
Humidity: 85% | | Dimensions (W x H x D) | 2.1 x 2.3 x 4.6" / 53.0 x 58.0 x 116.0 mm not including grip belt | | Weight | 8.47 oz / 240 g camera body not including grip belt
10.94 oz / 310 g including BP-727 battery, memory card, and grip belt | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 8.1 x 5.3 x 3.7" |
